System Schematic

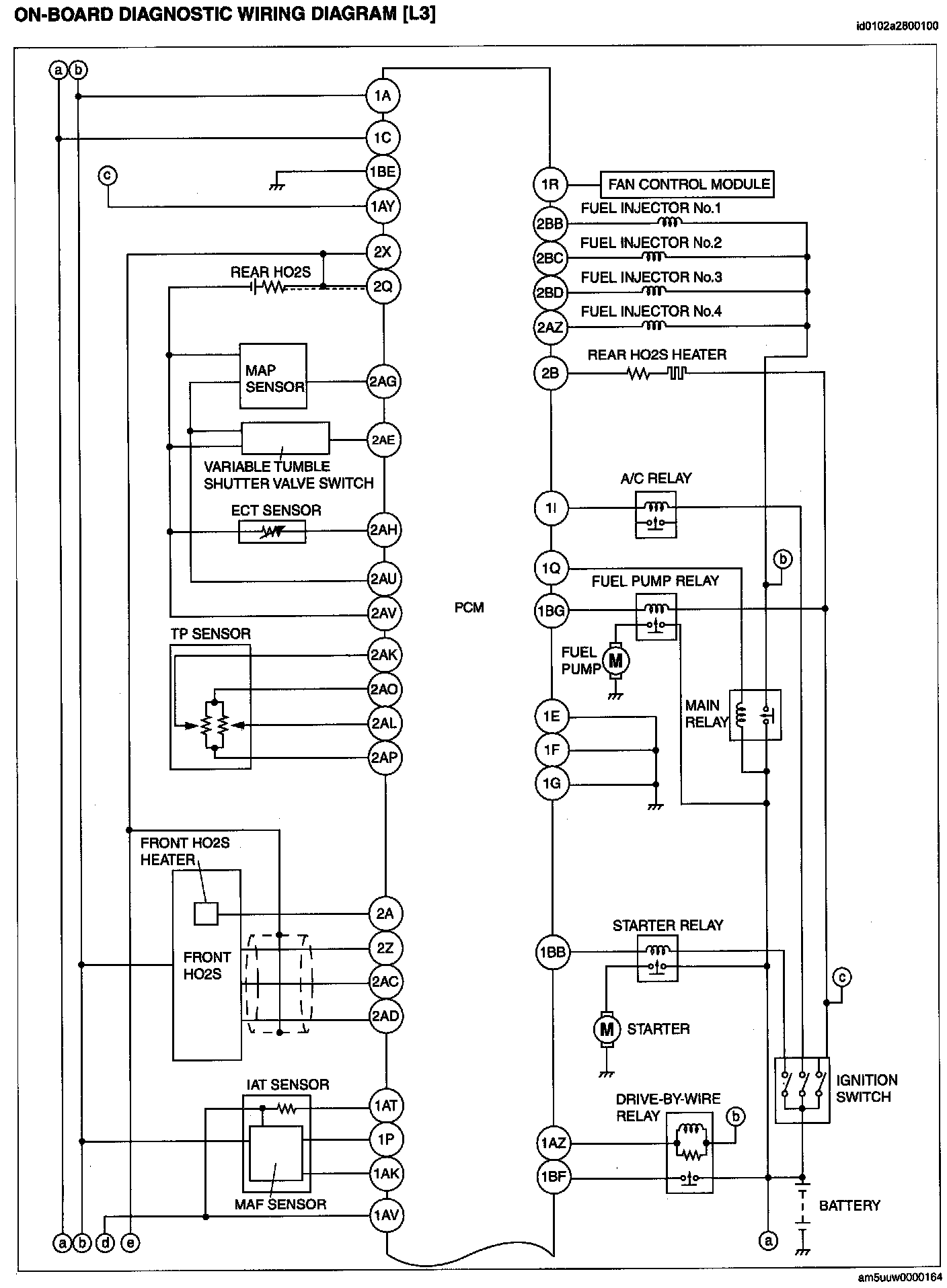

On-Board Diagnostic Wiring Diagram (Part 1):

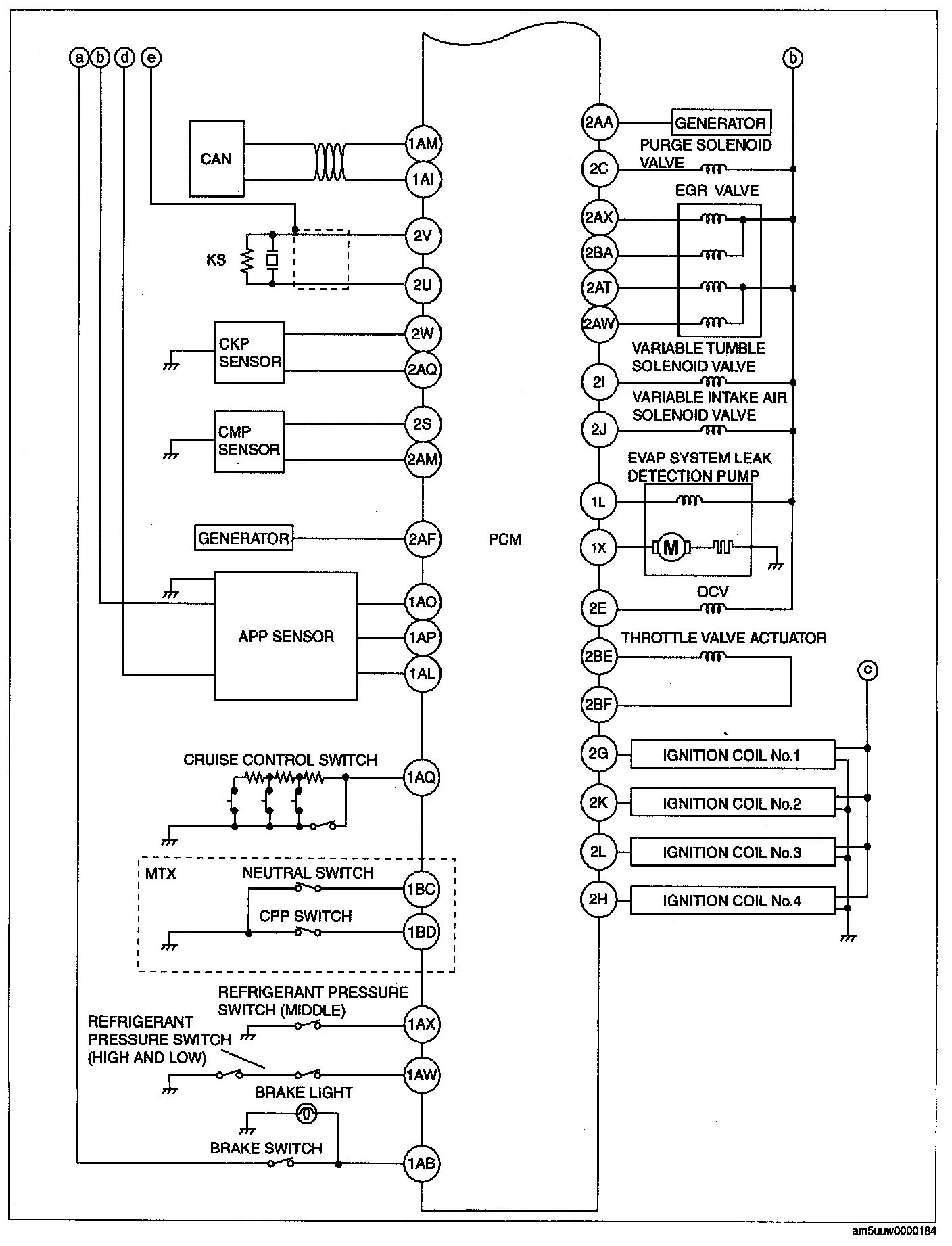

On-Board Diagnostic Wiring Diagram (Part 2):
