Diagram 0940-e

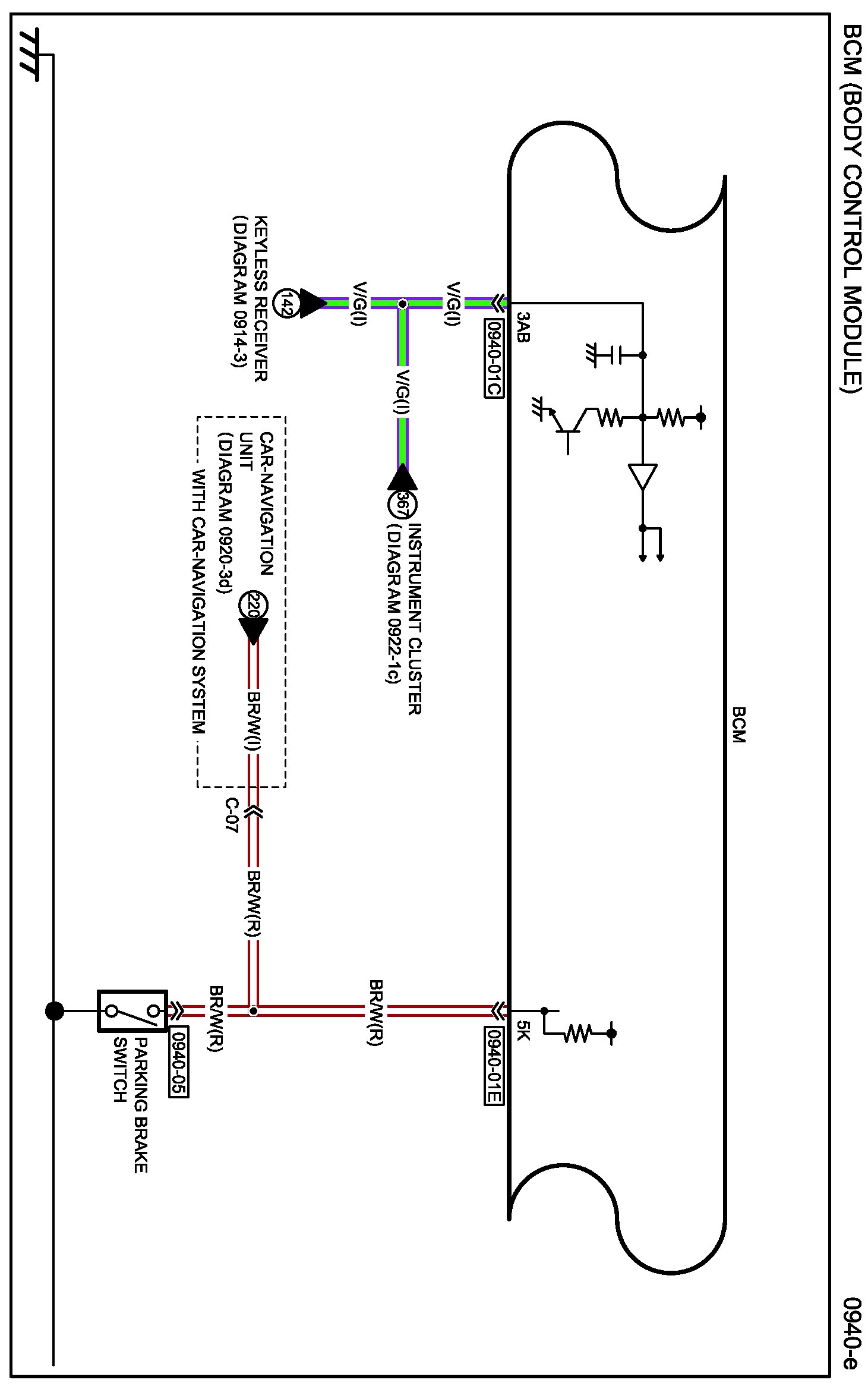

Diagram 0940-e:

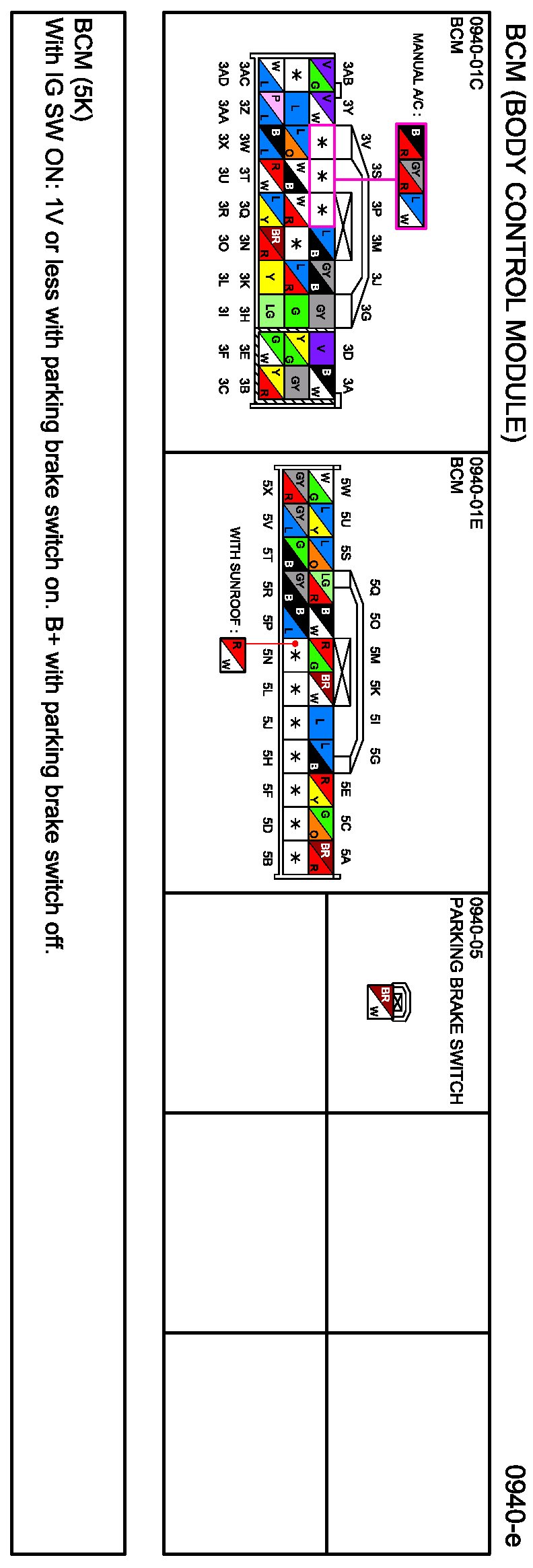

Connectors 0940-e:

Routing View 0940-e:

Next Diagram Diagram 0940-f


Previous diagram Diagram 0940-d


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
