Quick Diagnostic Chart
Quick Diagnostic Chart

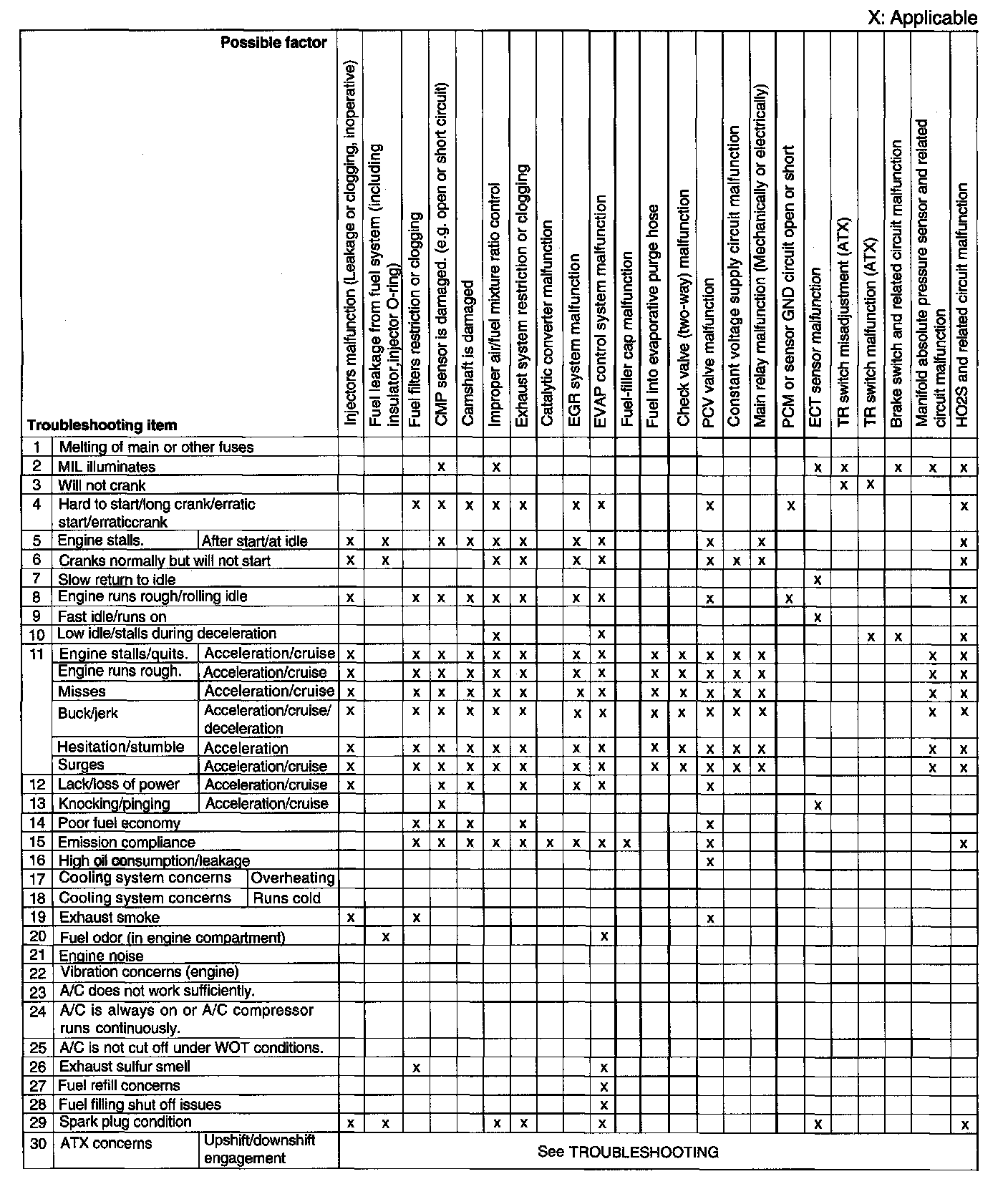

Quick Diagnostic Chart (LF, L3) (Part 1):

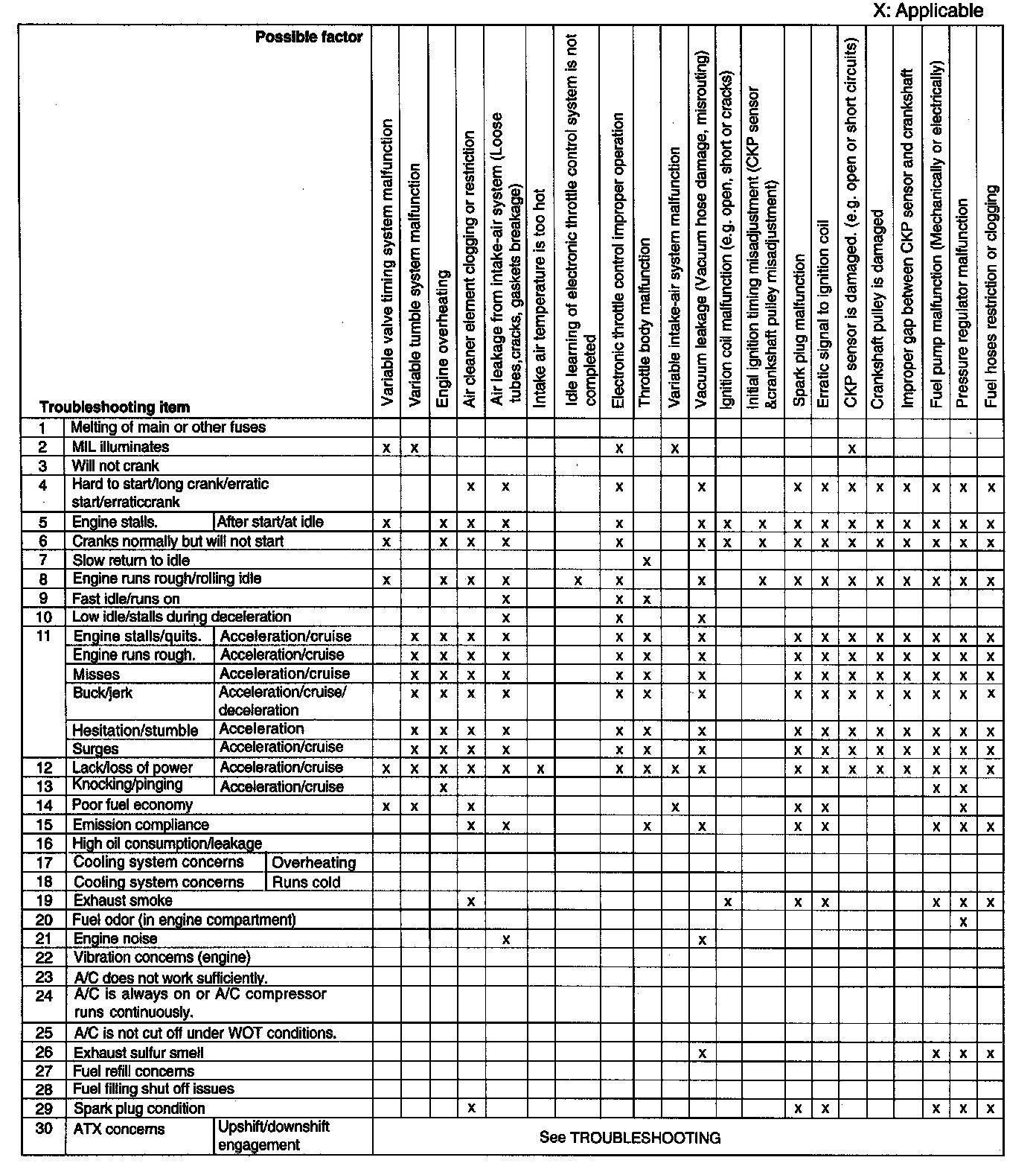

Quick Diagnostic Chart (LF, L3) (Part 2):

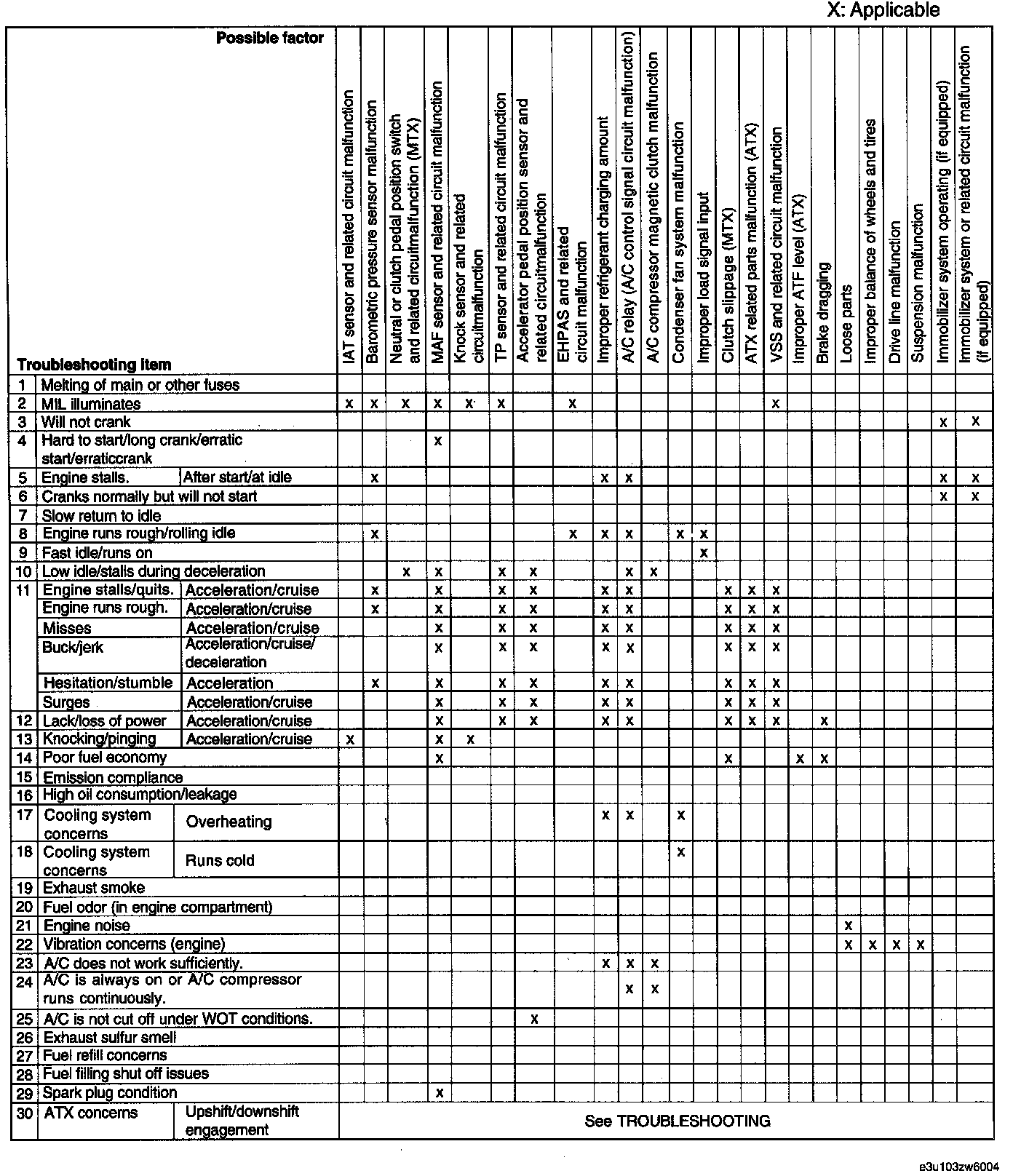

Quick Diagnostic Chart (LF, L3) (Part 3):

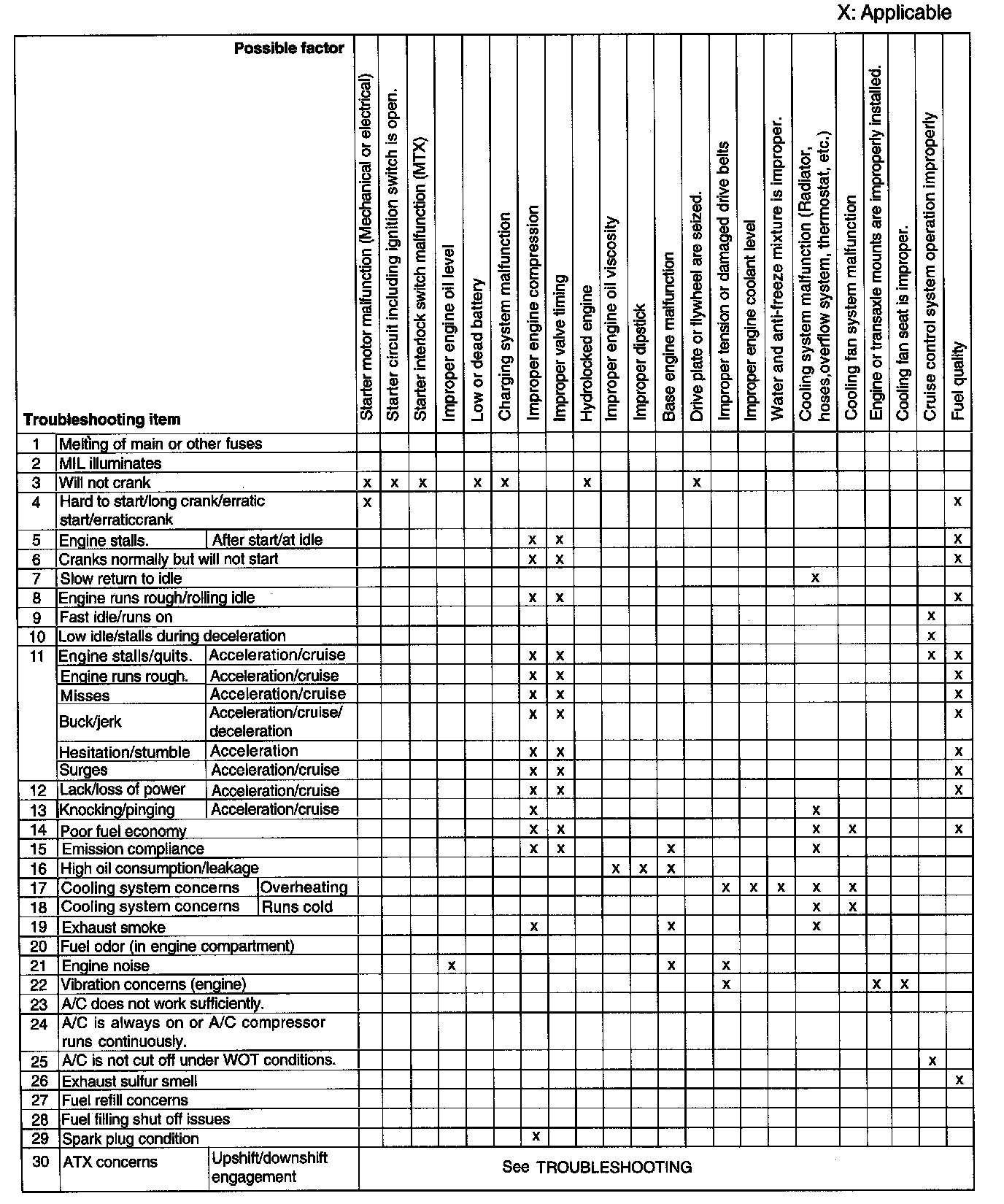

Quick Diagnostic Chart (LF, L3) (Part 4):
