On-Board System Readiness Tests Access Procedure

On-Board System Readiness Tests Access Procedure

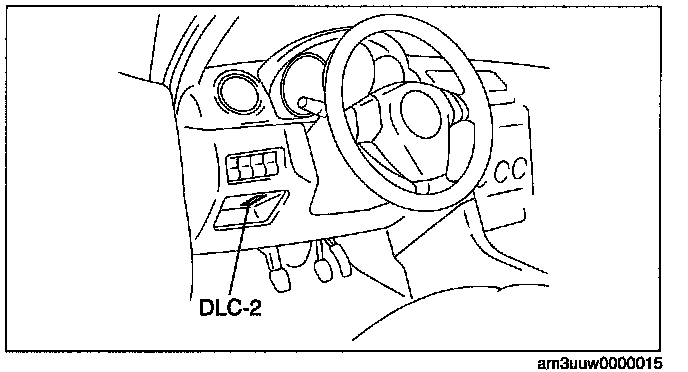

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select "Powertrain".
2. Select "OBD Test Modes".
3. Select "Mode 1 Powertrain Data".
4. Select "PCM".

- When using the PDS (Pocket PC)
1. Select "OBDII Modes".
2. Select "Mode 1 Powertrain Data".
3. Select "PCM".

3. Then, select the "***SUP" and "**EVAL" PIDs in the PID selection screen.
4. Monitor those PIDs and check it system monitor is completed.

NOTE: If the on-board system readiness tests are not completed the PCM stores DTC P1000.
