Wheels and Tires: Service and Repair

Wheel and Tire Installation

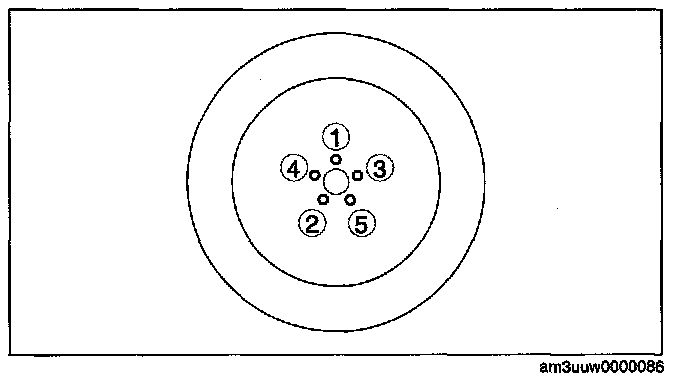

1. When installing the wheels and tires, tighten the wheel nuts in a criss-cross pattern to the following tightening torque.
Tightening torque 88.2-117.6 N-m (9.00-11.99 kgf-m, 65.06-86.73 ft-lbf)
