Home >> Mazda >> 2008 >> 3 L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

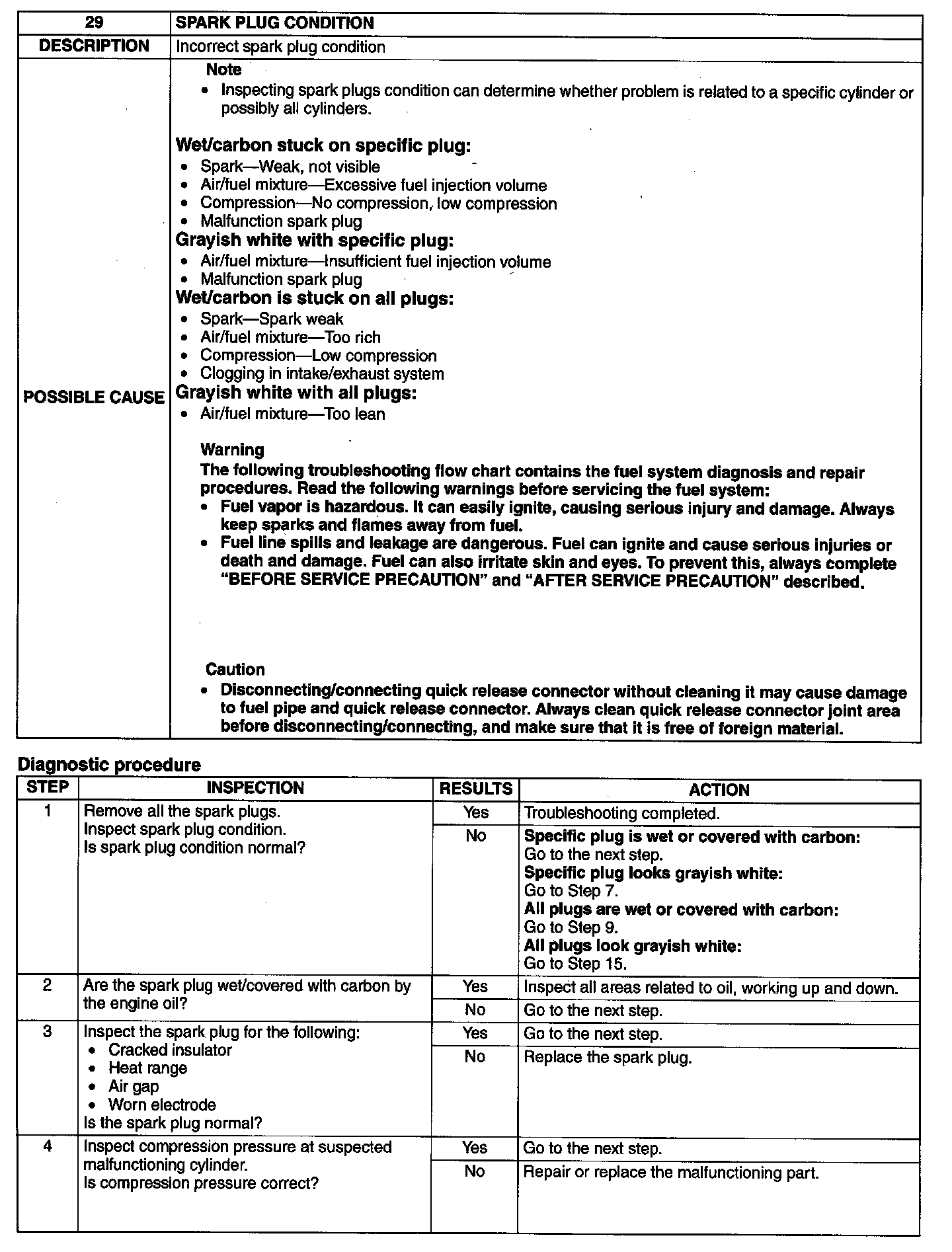

Step 1-Step 4:

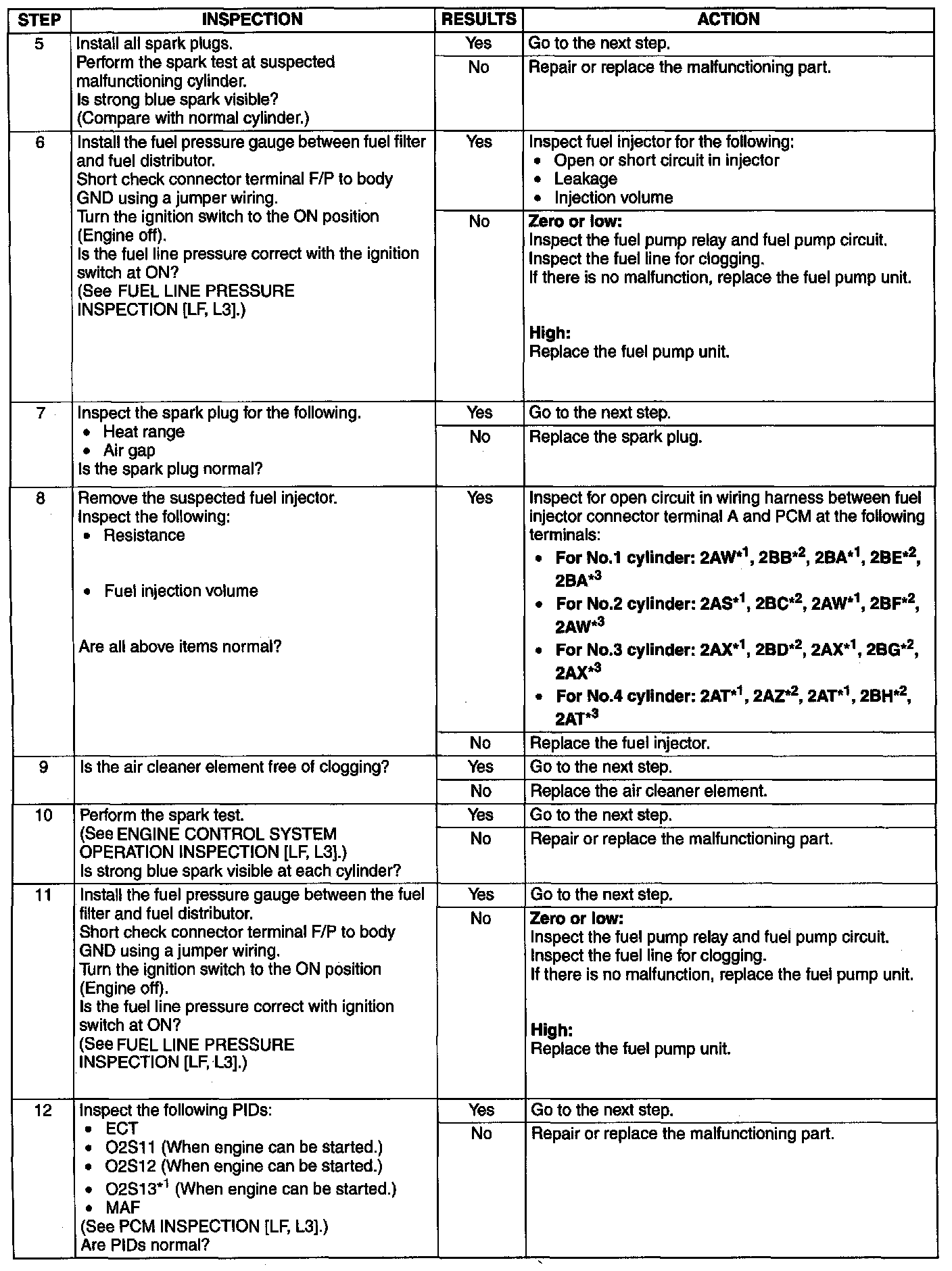

Step 5-Step 12:

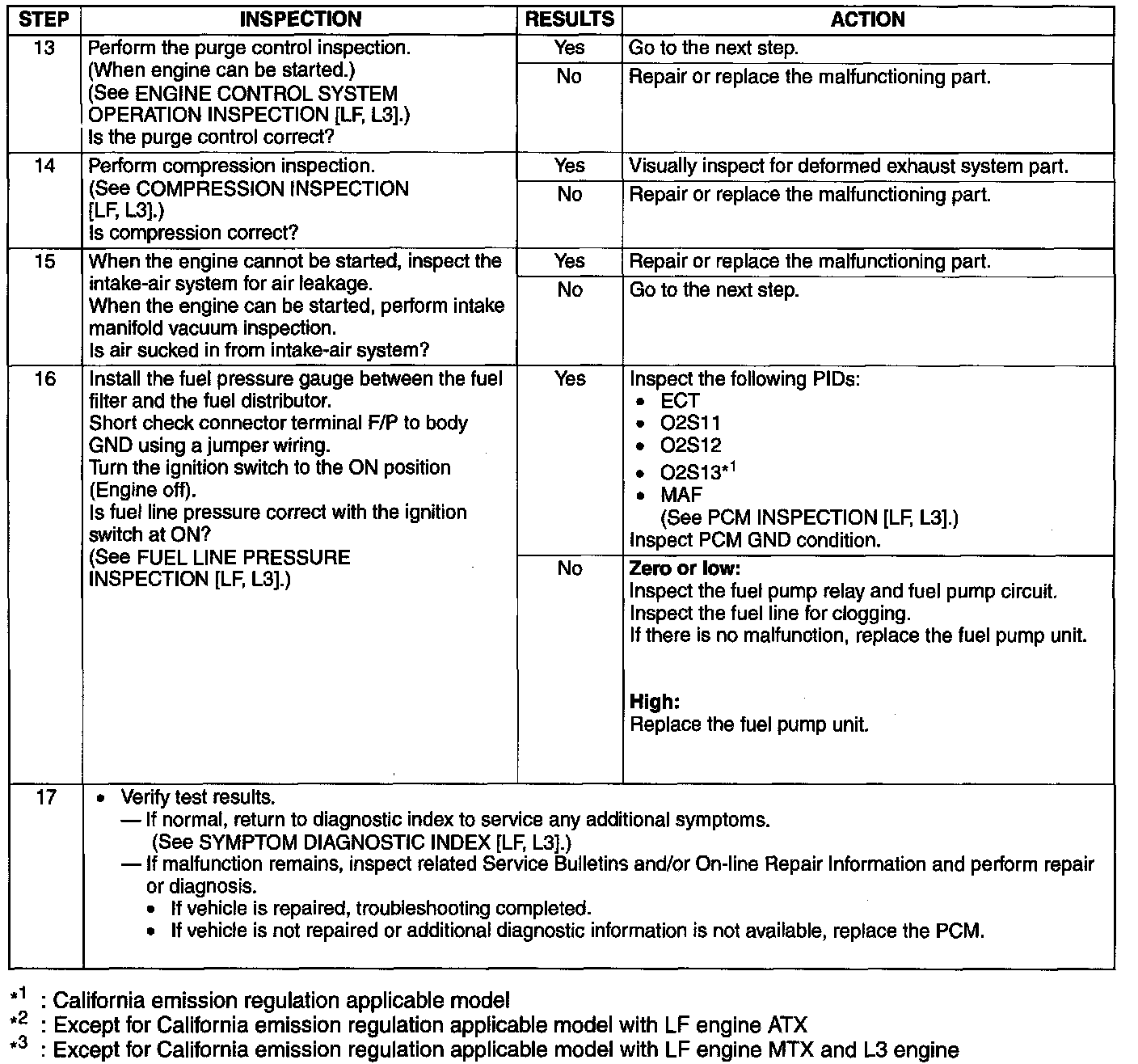

Step 13-Step 17:
