Home >> Mazda >> 2007 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> System Schematic

System Schematic

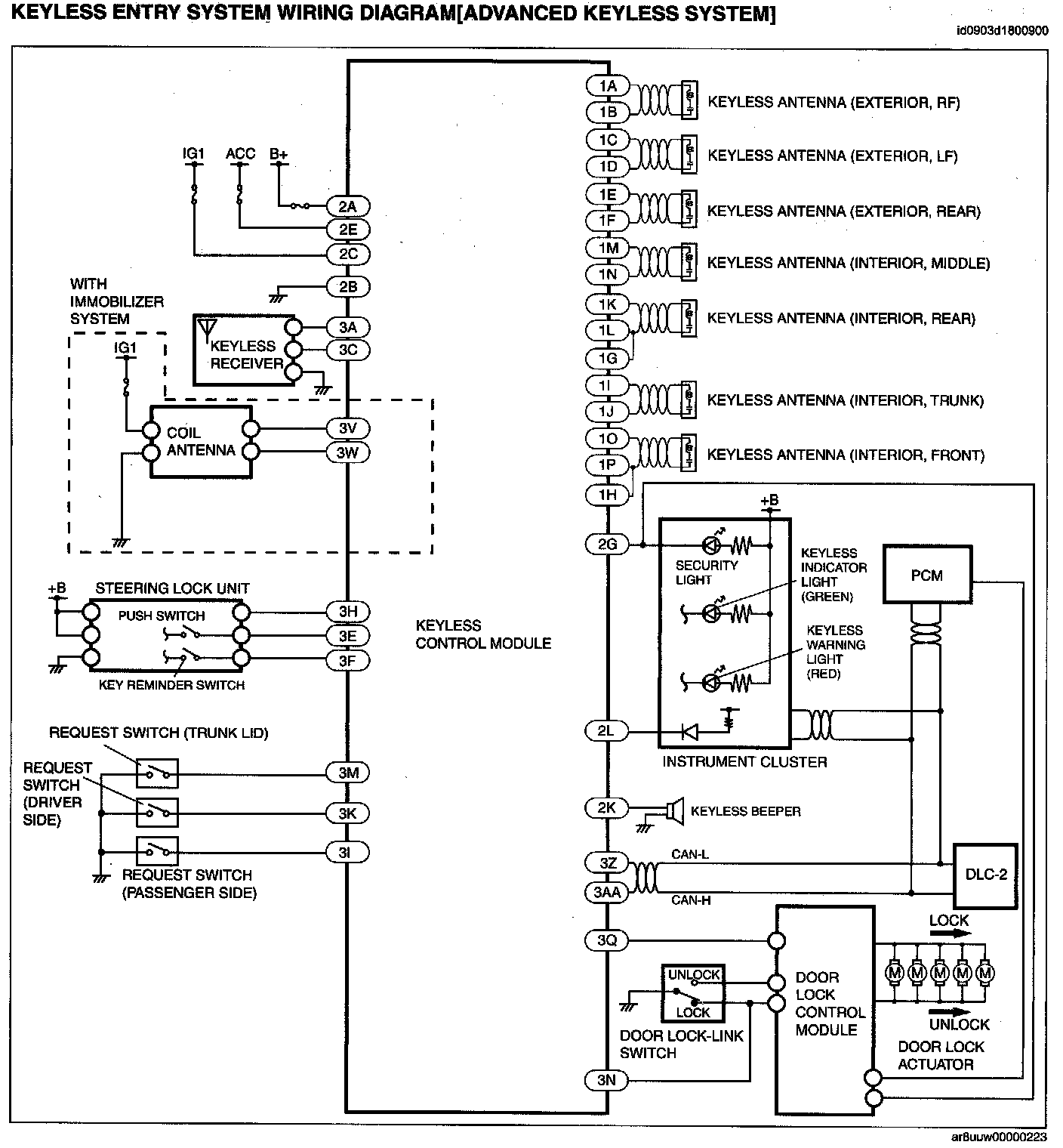

Keyless Entry System Wiring Diagram [Advanced Keyless System]:
