Overhaul

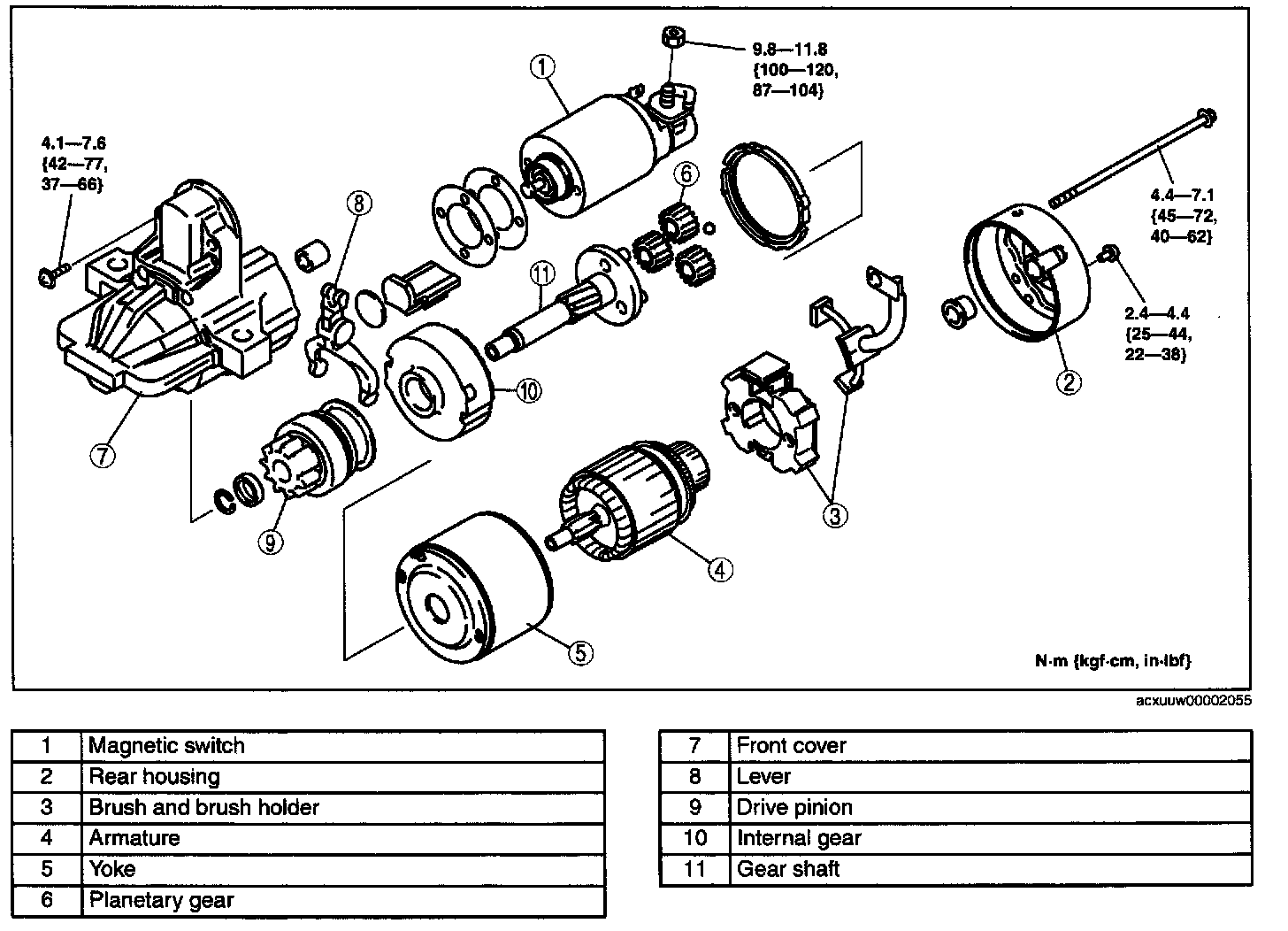

STARTER DISASSEMBLY/ASSEMBLY[L3 WITH TC]




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
