Body and Frame: Testing and Inspection

Flowchart

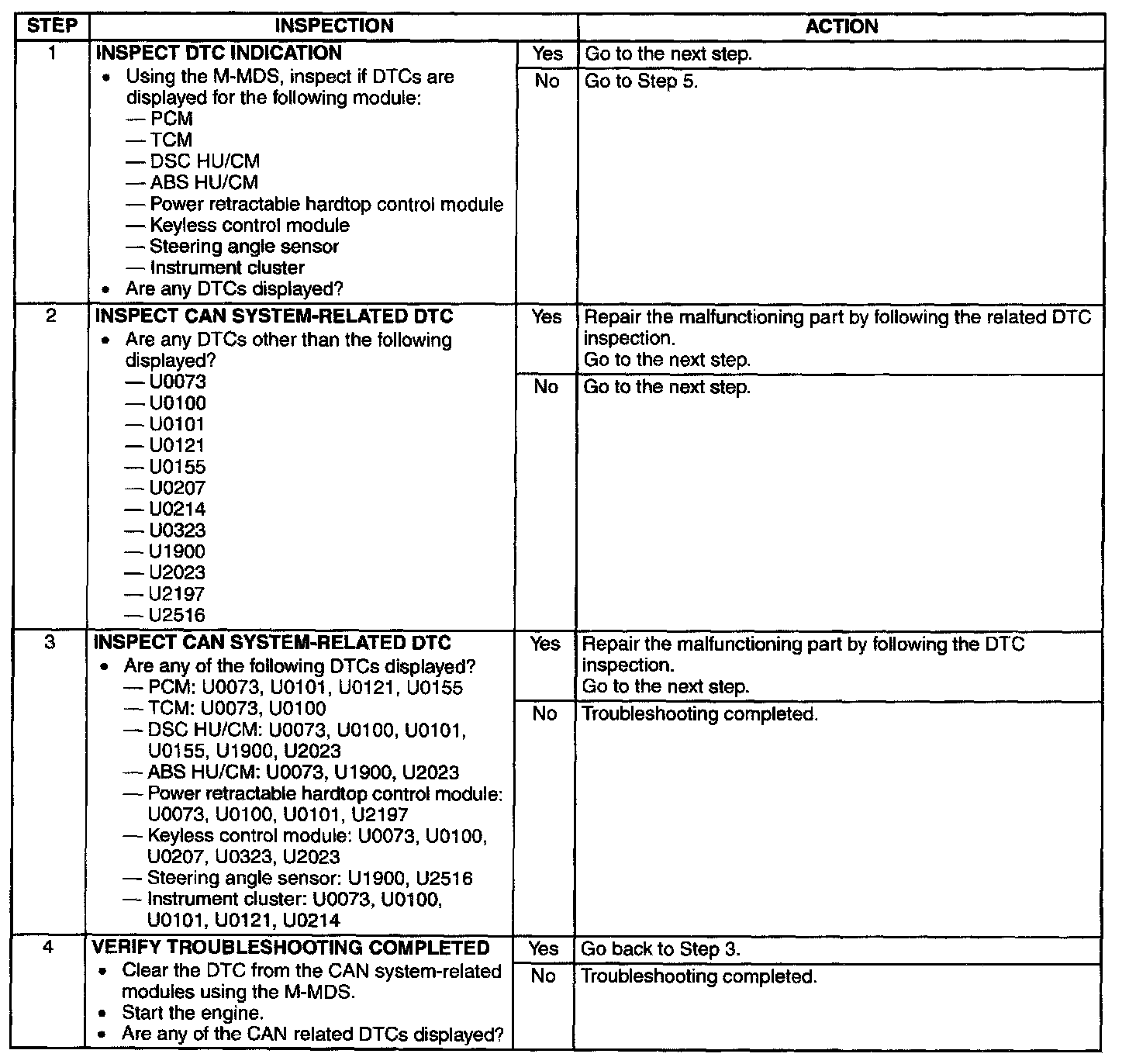

Step 1-Step 4:

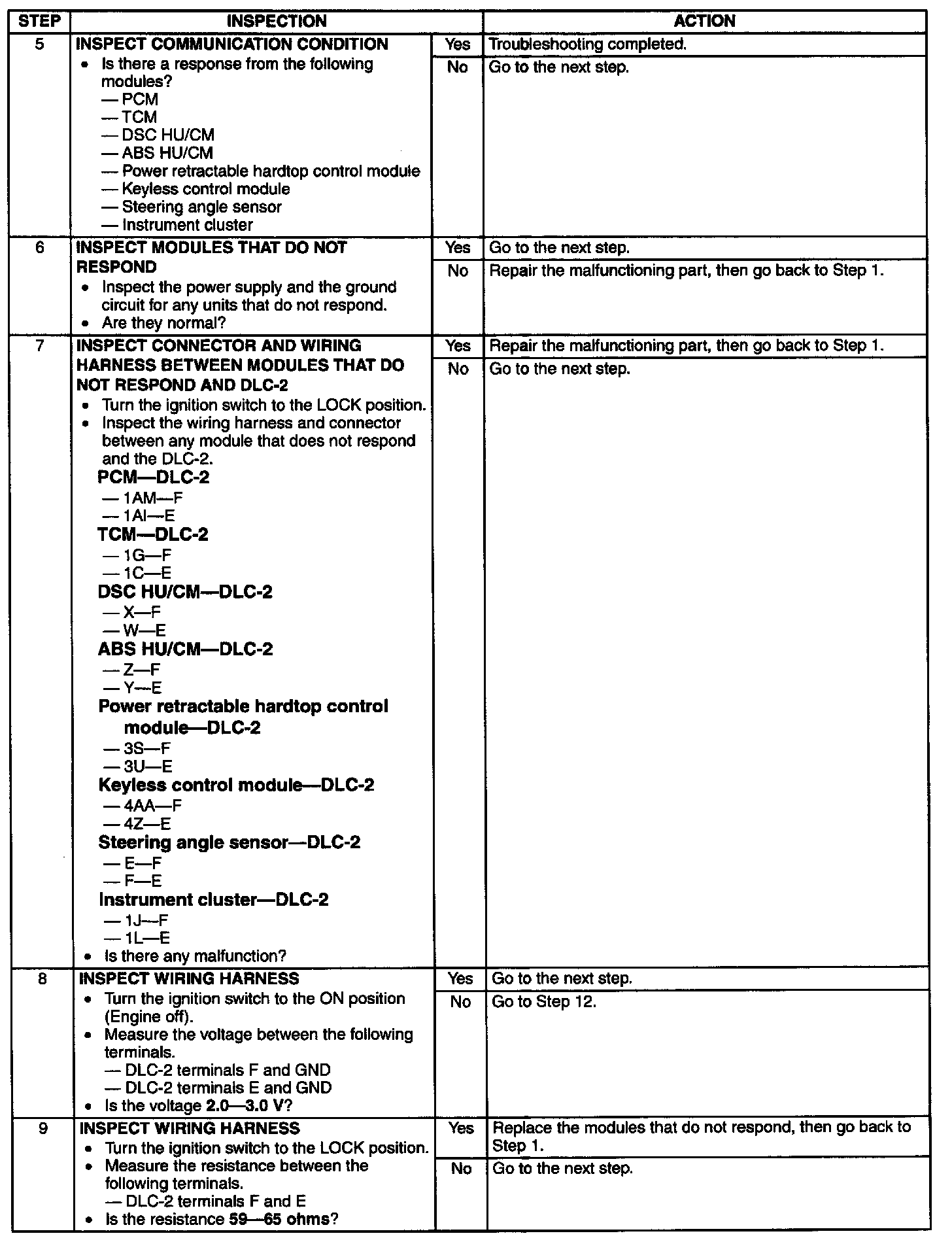

Step 5-Step 9:

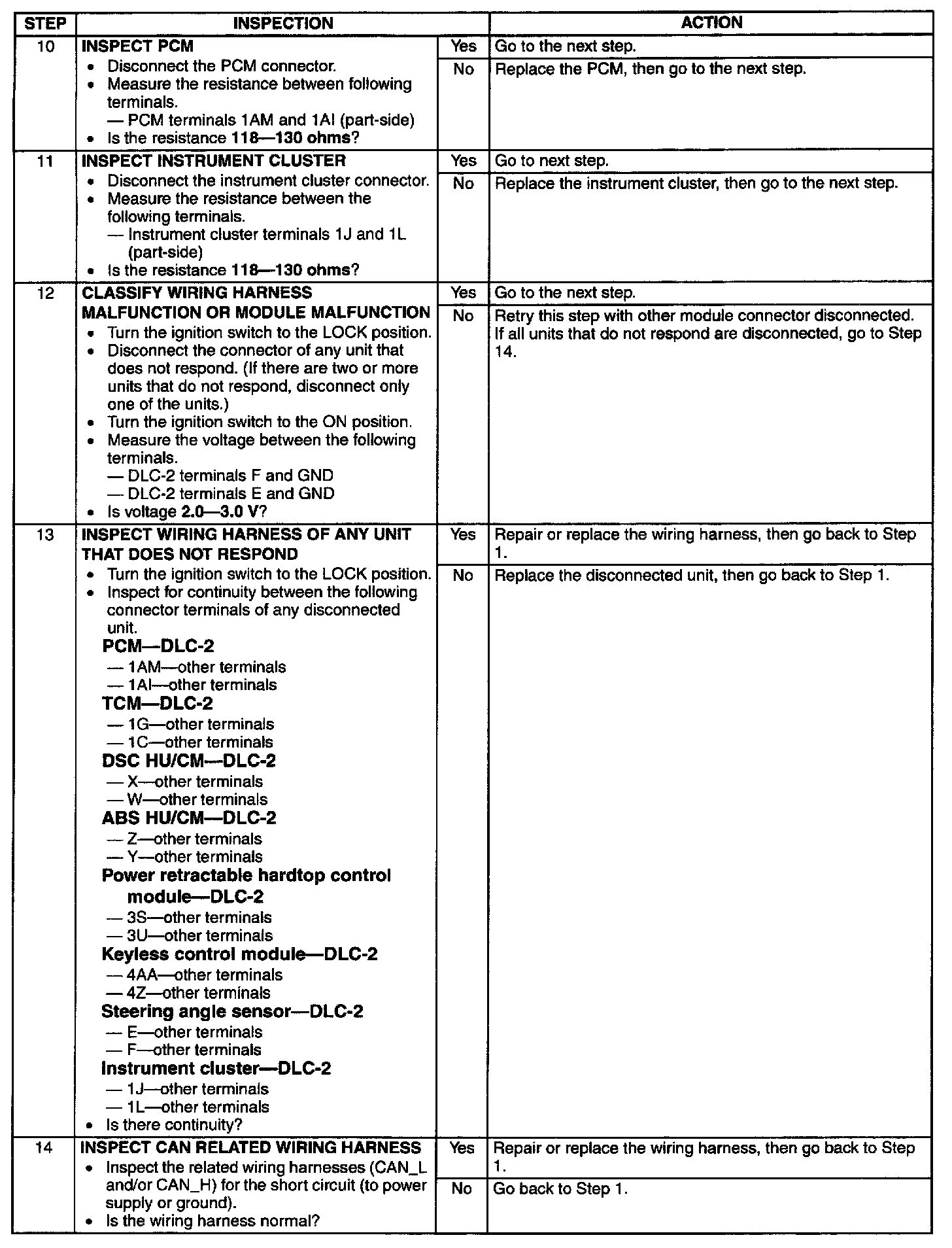

Step 10-Step 14:




- Use the following flowchart to verify the cause of the trouble.
