Front Wheel Alignment

Front wheel alignment

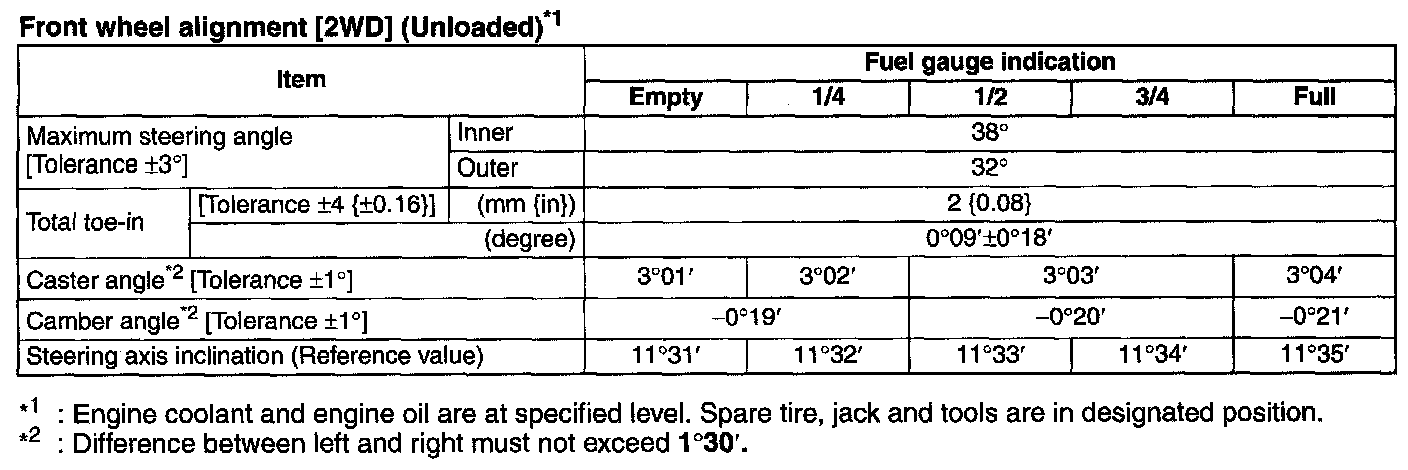

Front Wheel Alignment [2WD] (unloaded)*1:

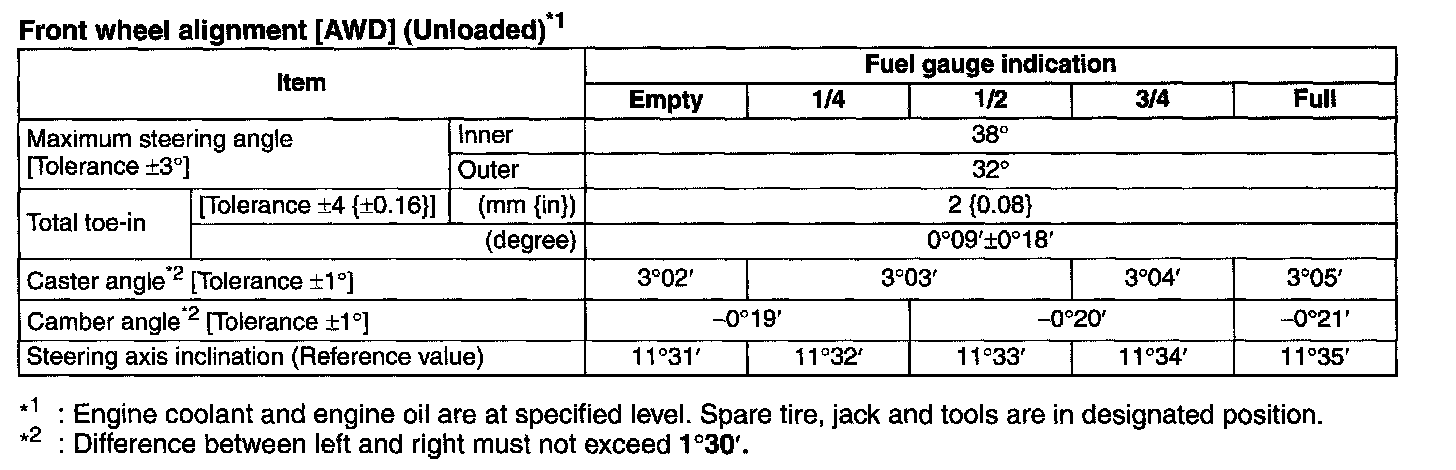

Front Wheel Alignment [AWD] (unloaded)*1:
