Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Locations >> Connector Locations

Connector Locations

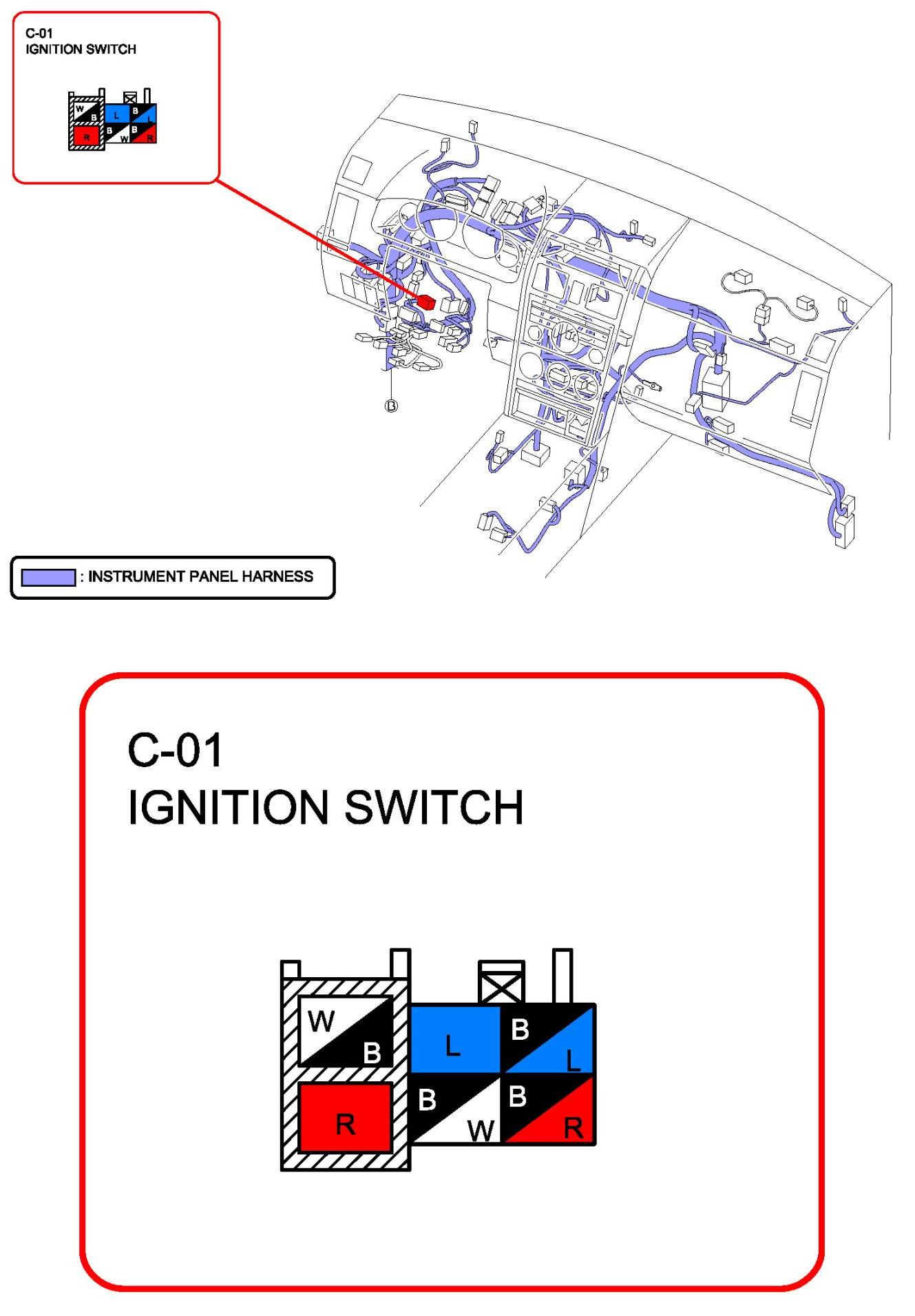

C-01 (Ignition Switch):
