Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Diagrams

Headlamp Control Module: Diagrams

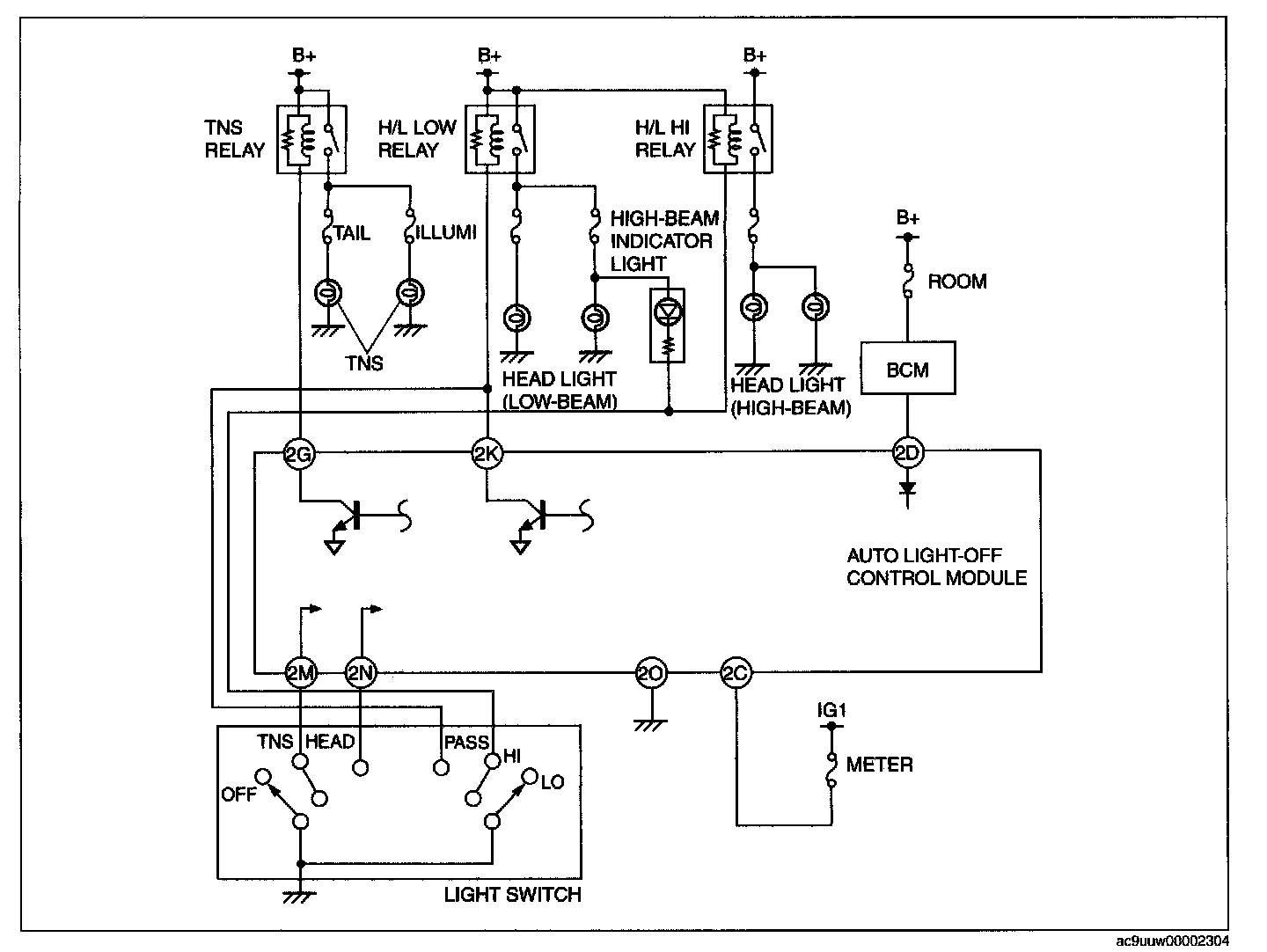

Auto Light-off Control Module:
