Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Headlight Low RH

Headlight Low RH

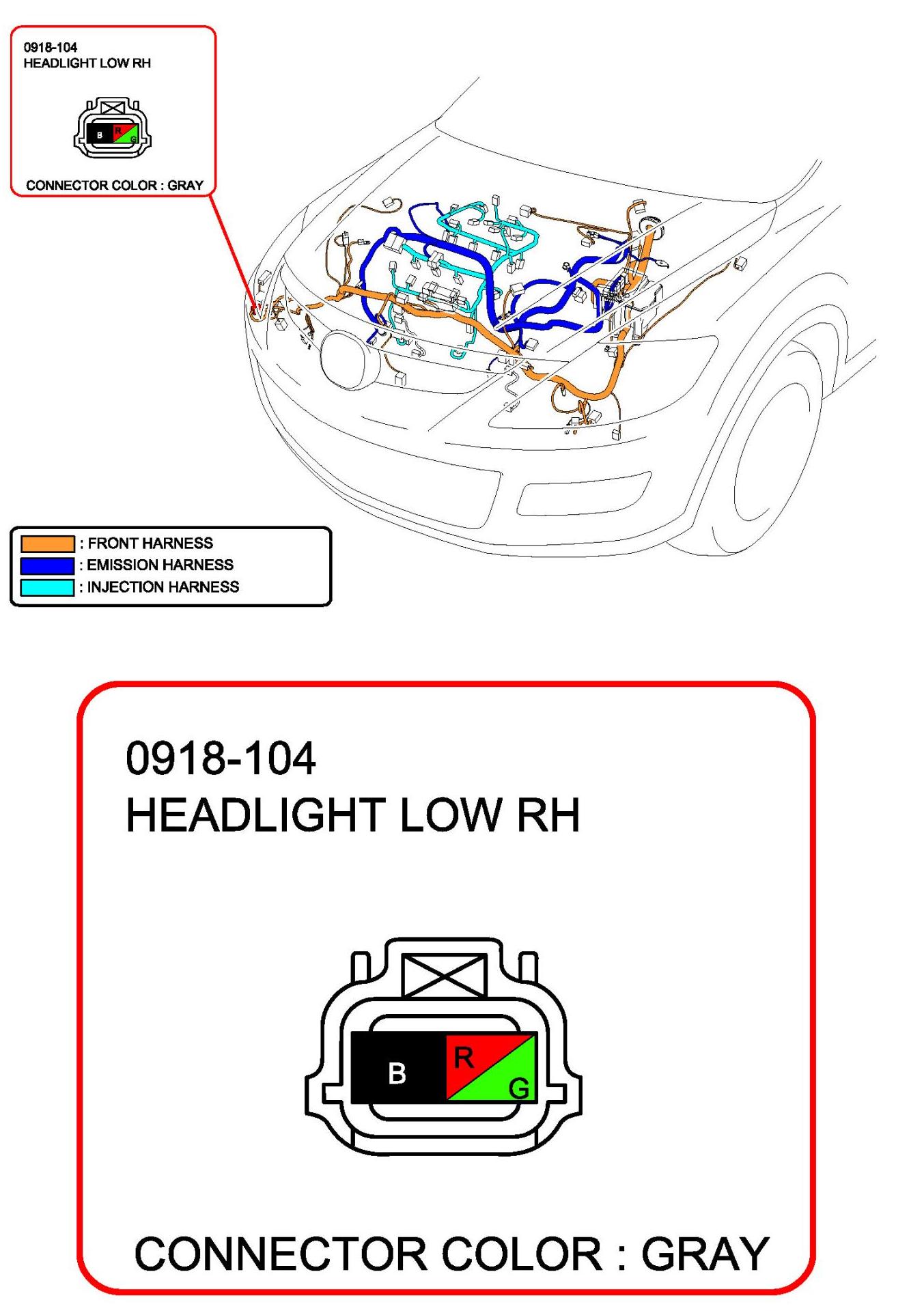

Headlight Low RH:

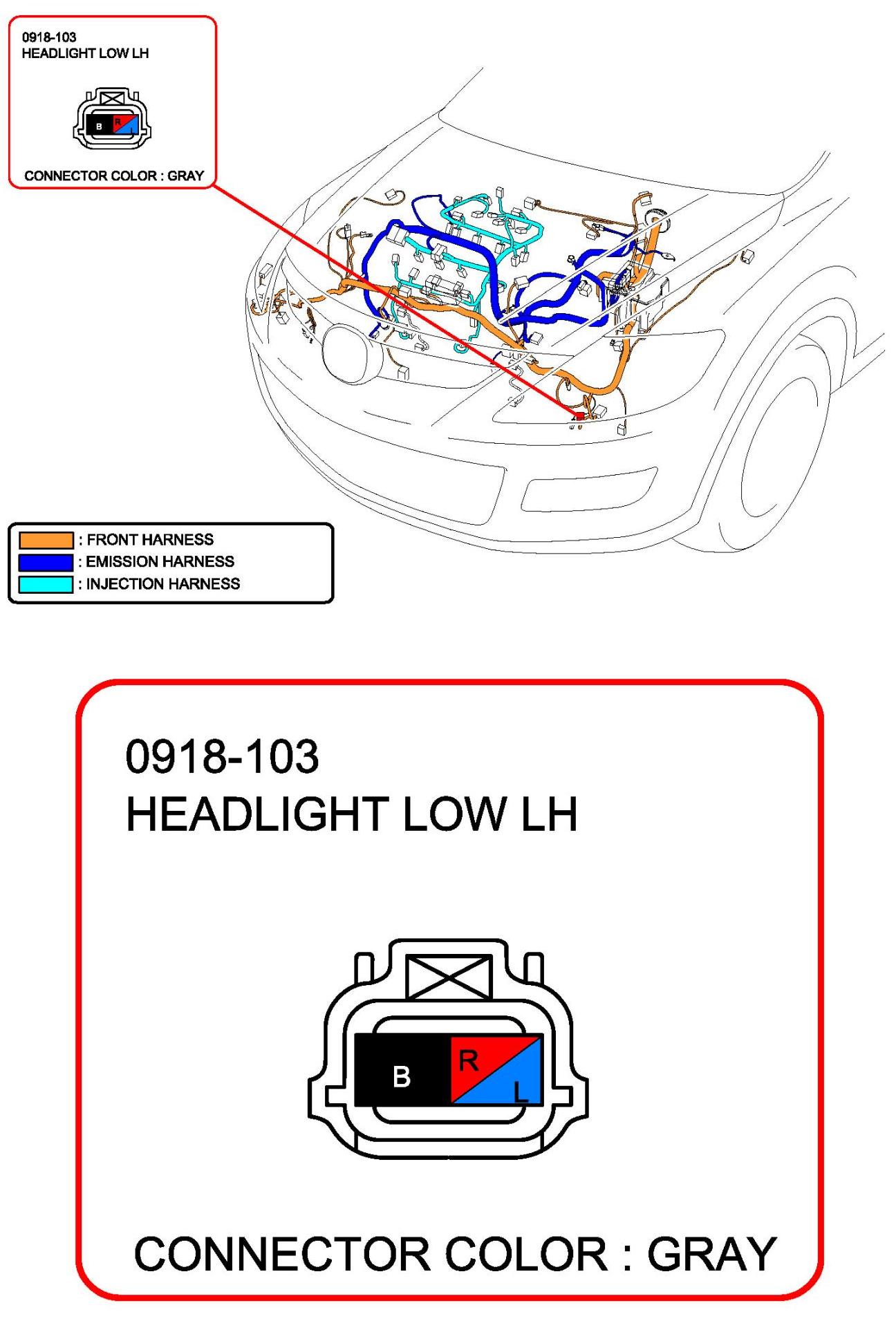

Headlight Low LH:
