Keyless Entry System Wiring Diagram (Advanced Keyless System)

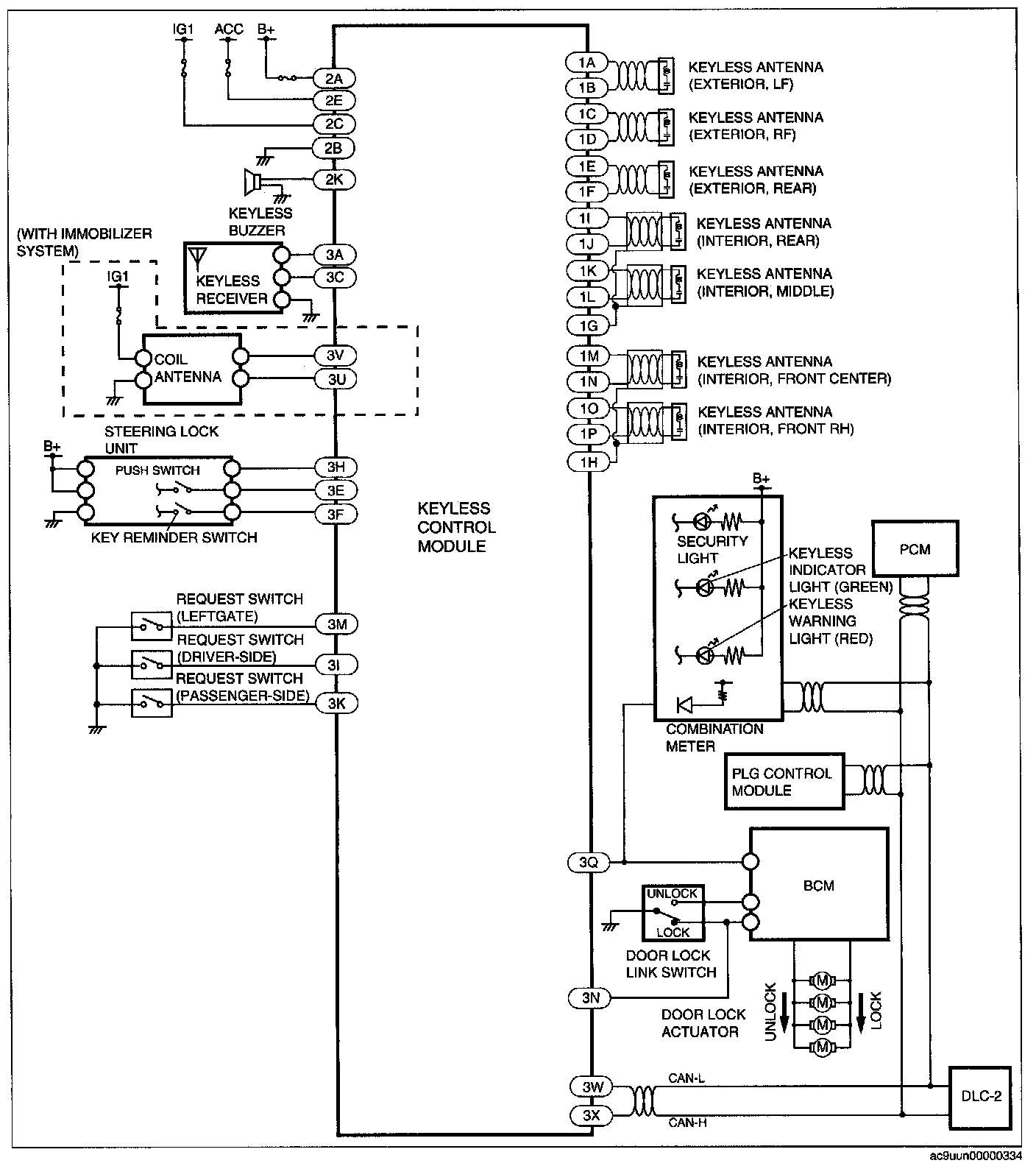

Keyless Entry System Wiring Diagram [Advanced Keyless System]:
