Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PID/Data Monitor Table [BCM]

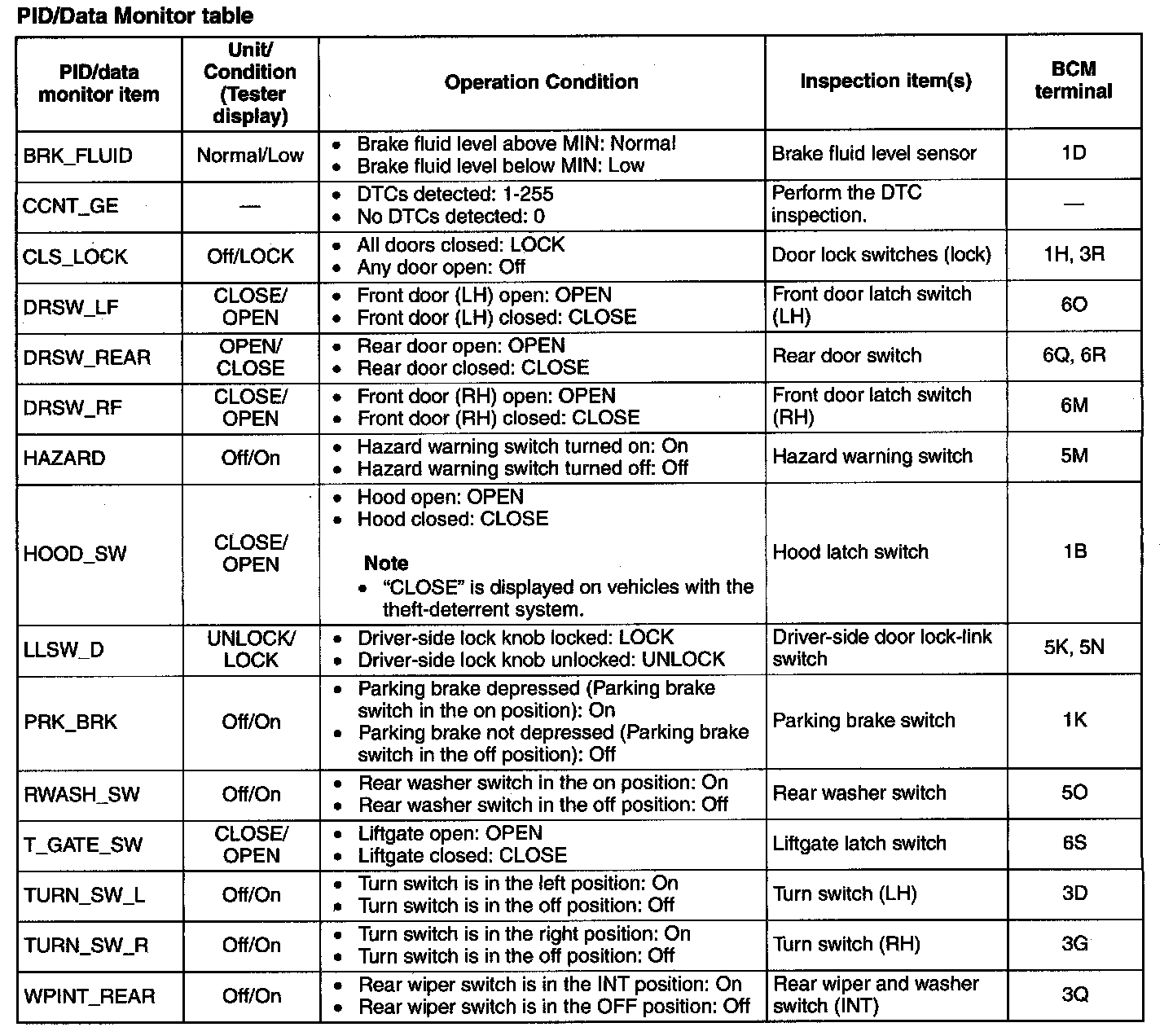

PID/Data Monitor Table [BCM]

PID/Data Monitor Table [BCM]:
