Control System Location Index

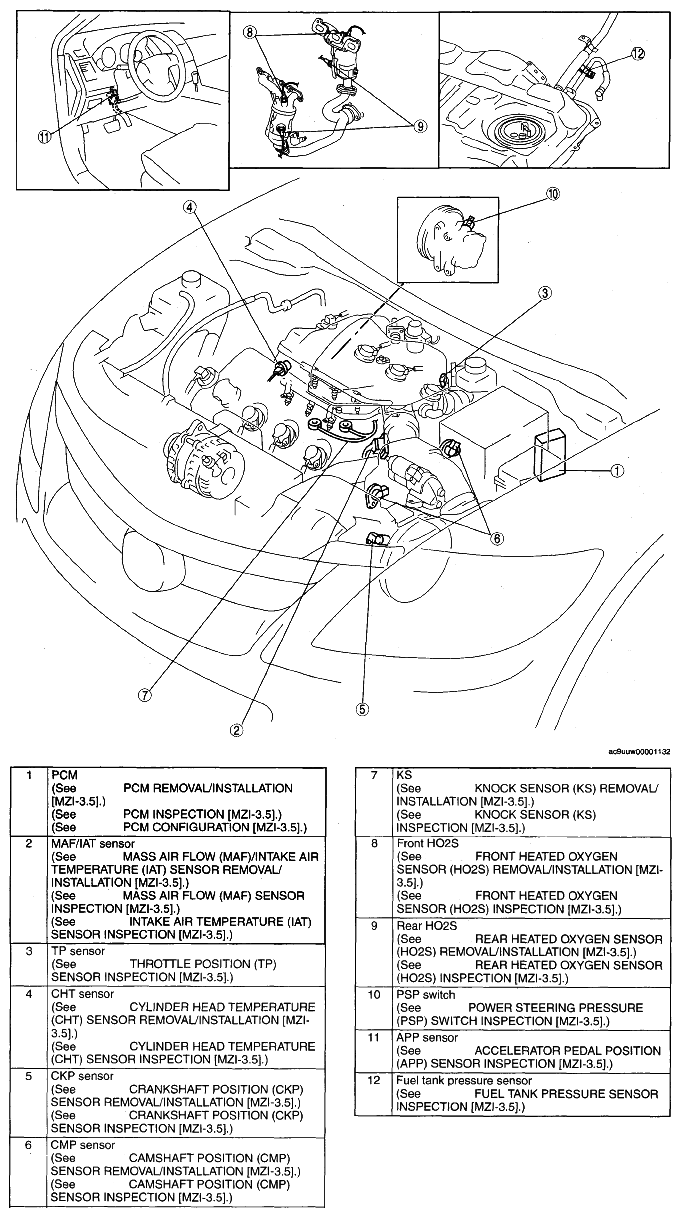

Fig 1: Identifying Control System Components

G04969680

Courtesy of MAZDA MOTORS CORP.
