Home >> Mazda >> 2007 >> CX-7 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

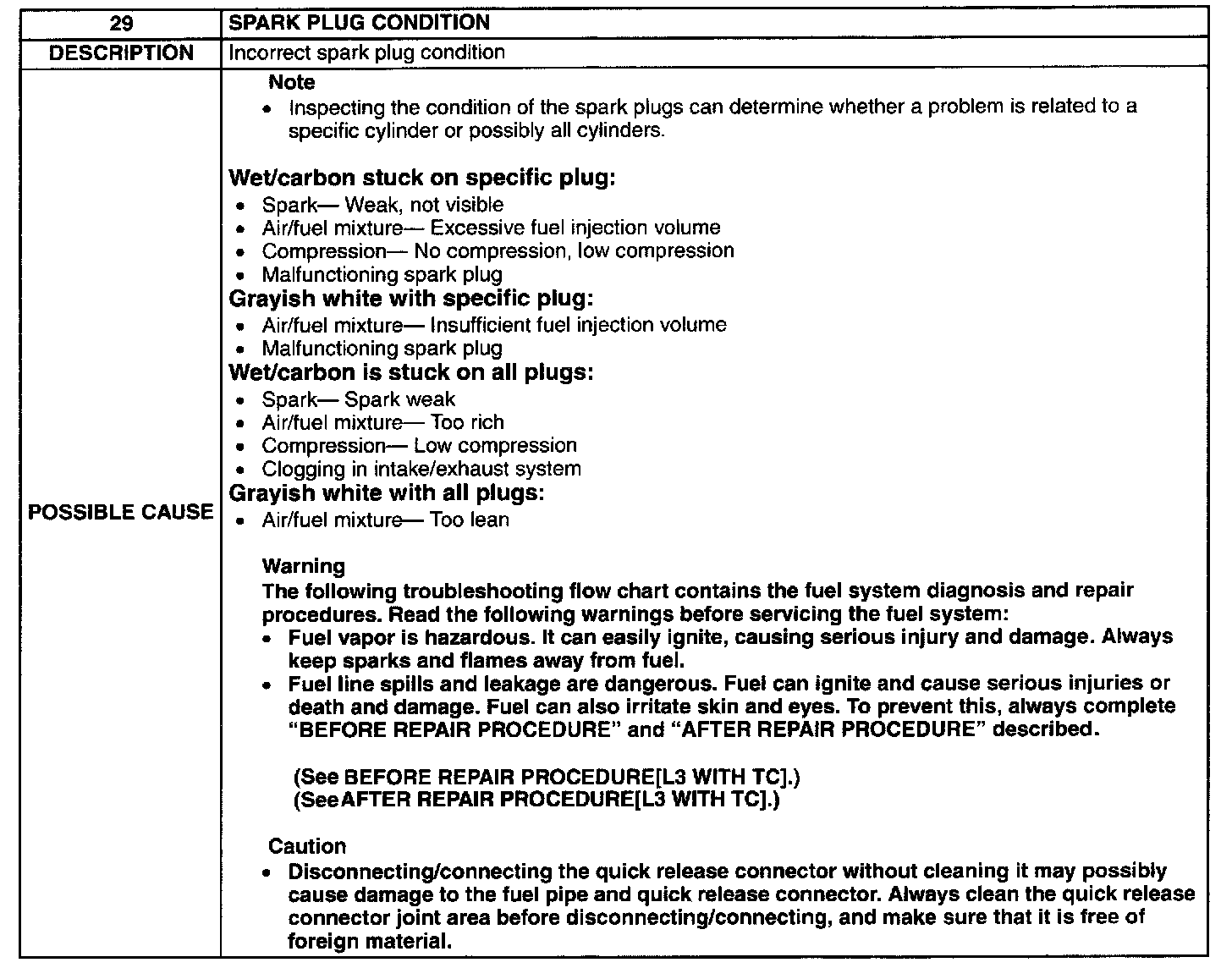

Description/Possible Cause:



Step 1-Step 2:

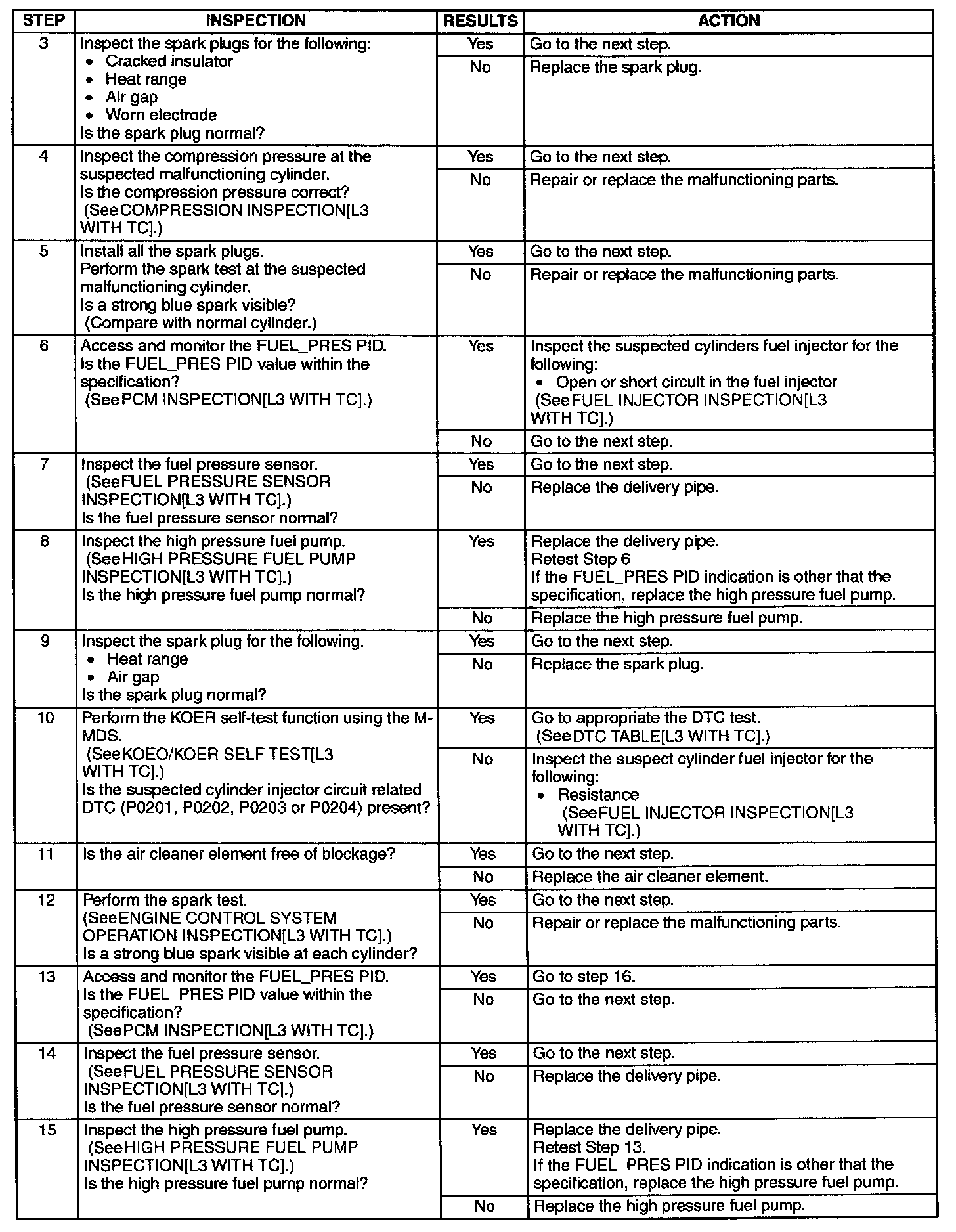

Step 3-Step 15:

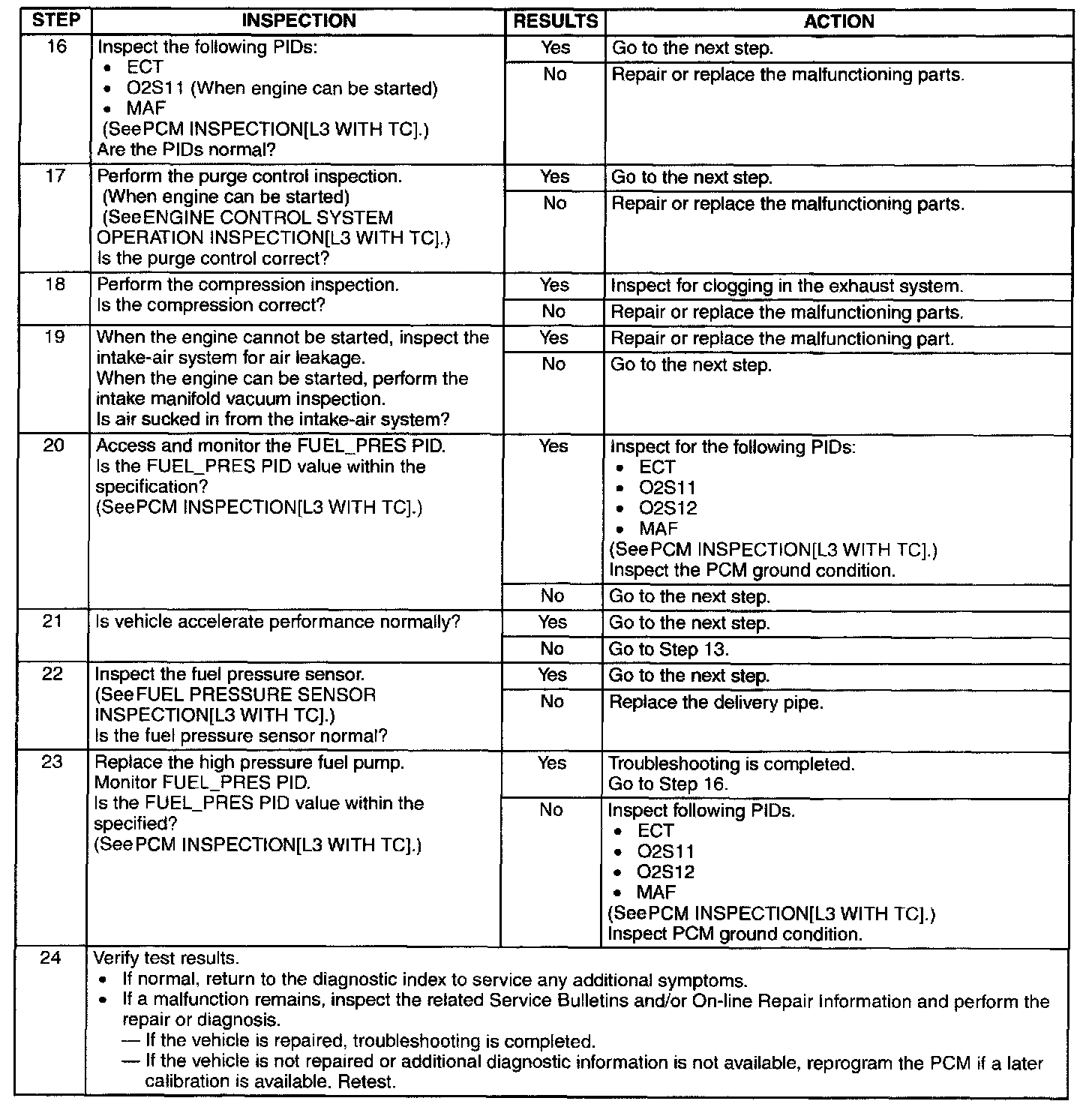

Step 16-Step 24:
