Control System Device and Control Relationship Chart

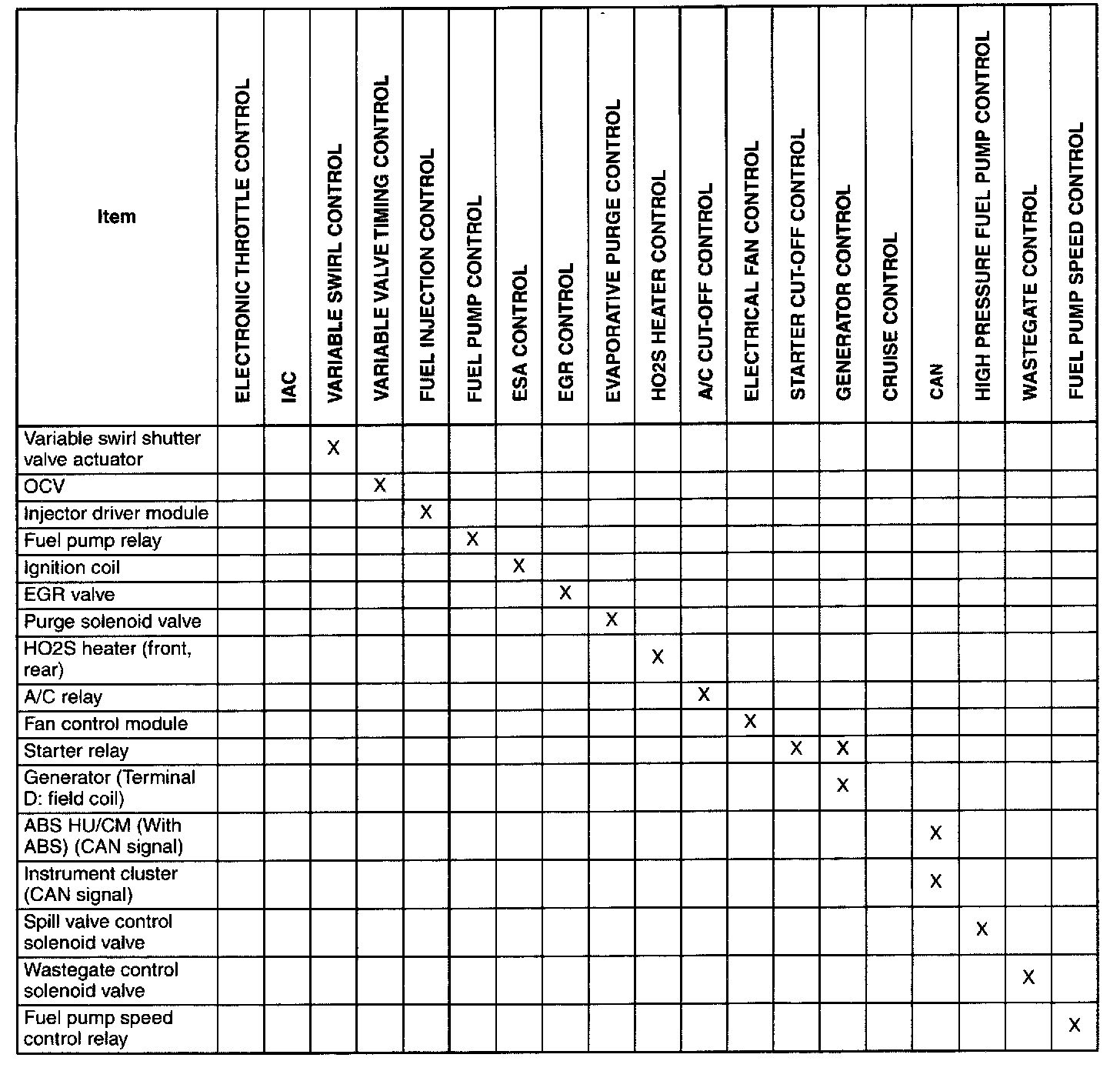

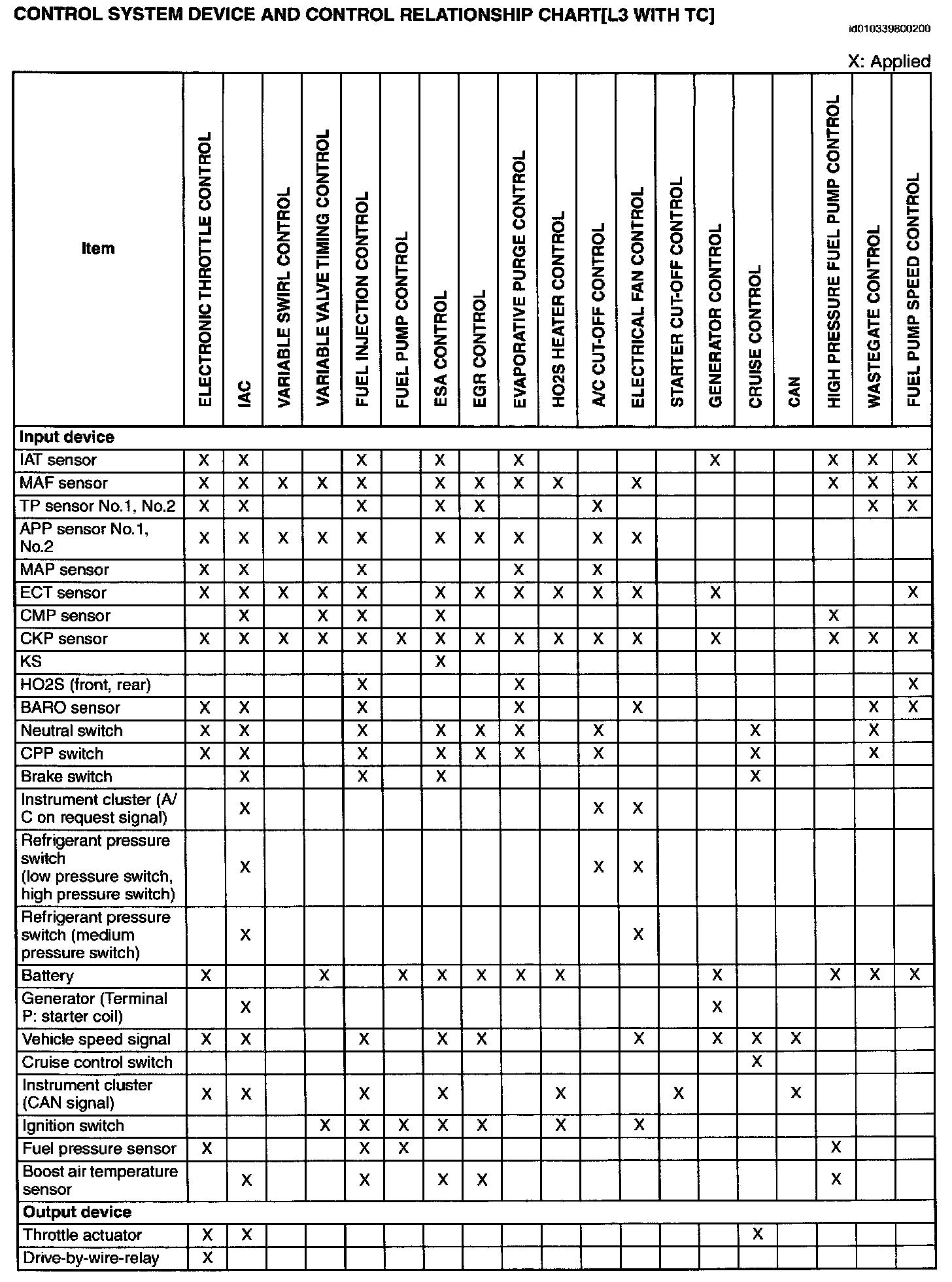

Control System Device And Control Relationship Chart:



Control System Device And Control Relationship Chart:
