Cylinder Head Assembly

Cylinder Head





USE NEW BOLTS

Install the 12 mm (0.47 inch) bolts and tighten in the sequence shown.





Tighten the eight 12 mm (0.47 inch) bolts in two stages in the sequence shown.
Stage 1 Tighten the bolts 80 degrees.
Stage 2 Tighten the bolts an additional 80 degrees.





Install the two 8 mm (0.31 inch) bolts.

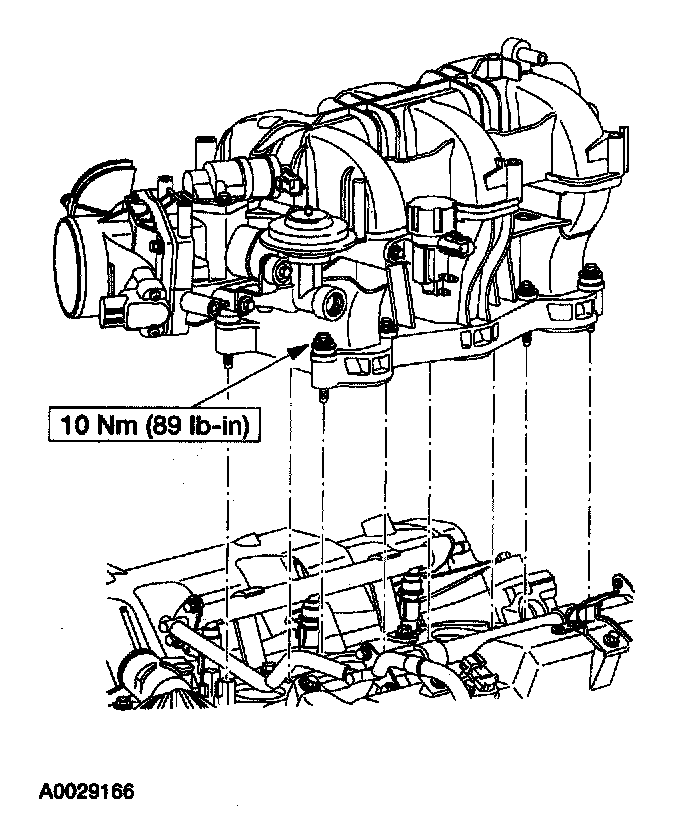

Intake Manifold
