Home >> Mazda >> 2007 >> B3000 V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Connector End Views-External Controls

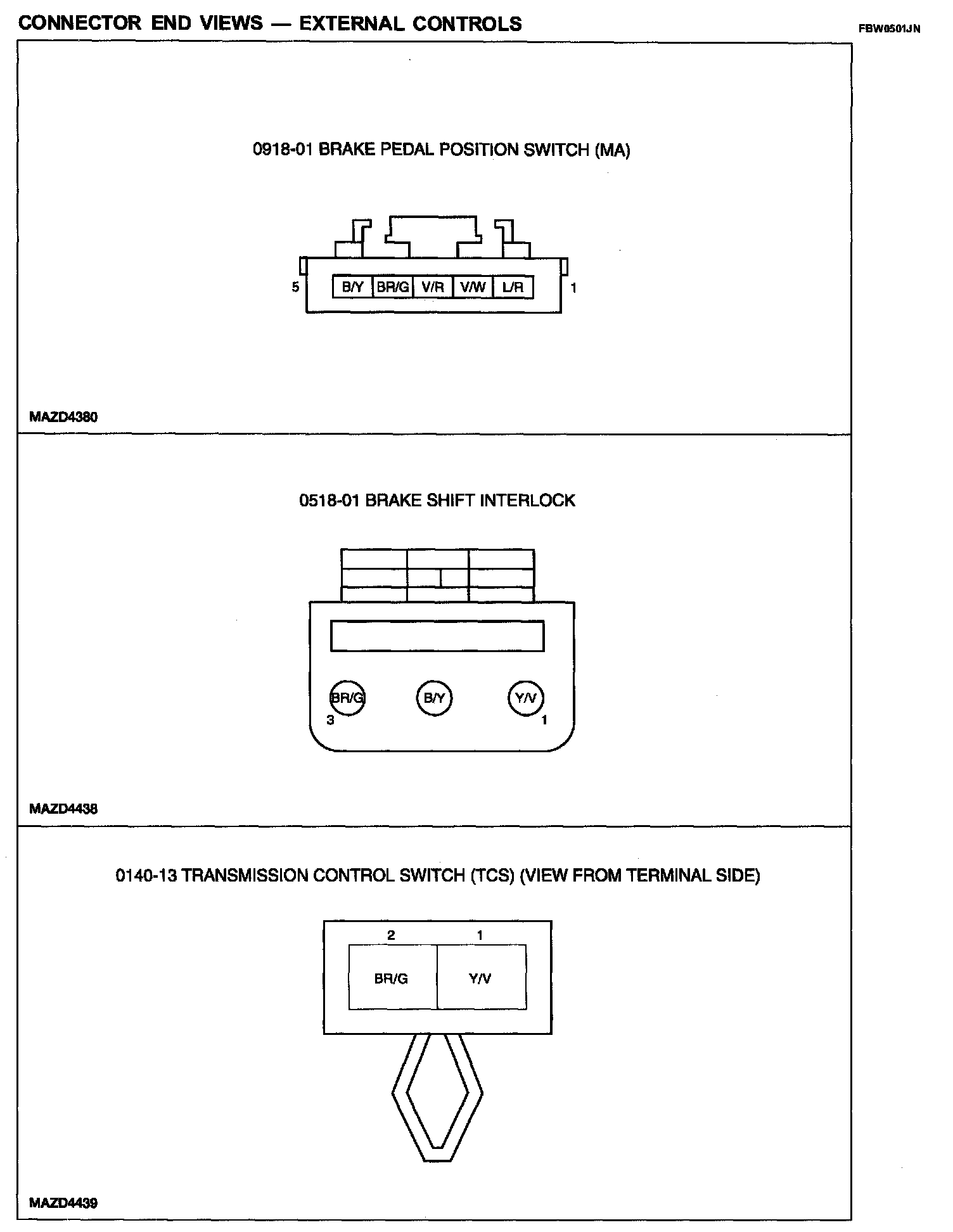

Connector End Views-External Controls

Connector End Views - External Controls:
