Power Window System Location Index

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

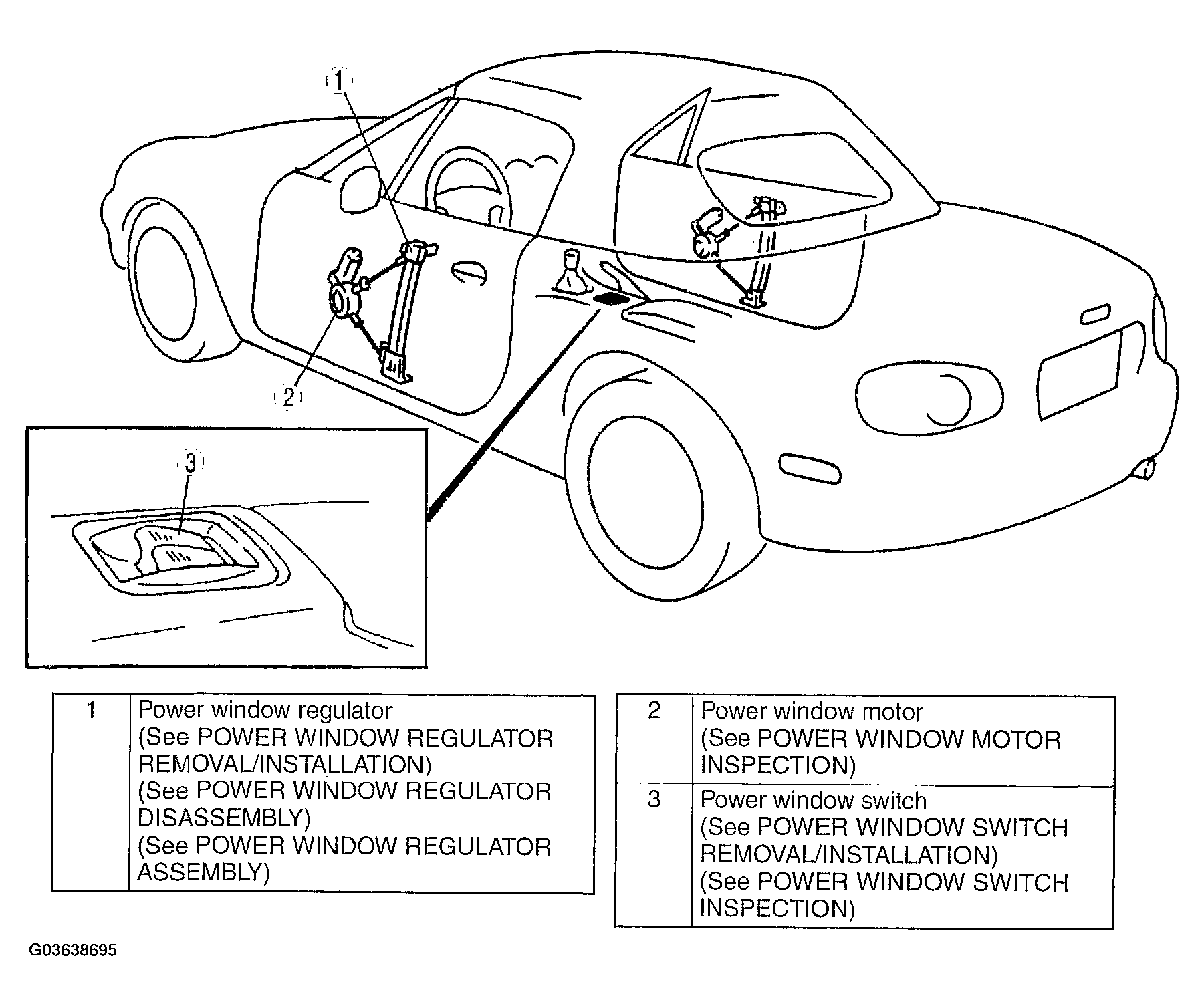

Fig 1: Identifying Power Window System Components
G03638695Courtesy of MAZDA MOTORS CORP.
