Switch location

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

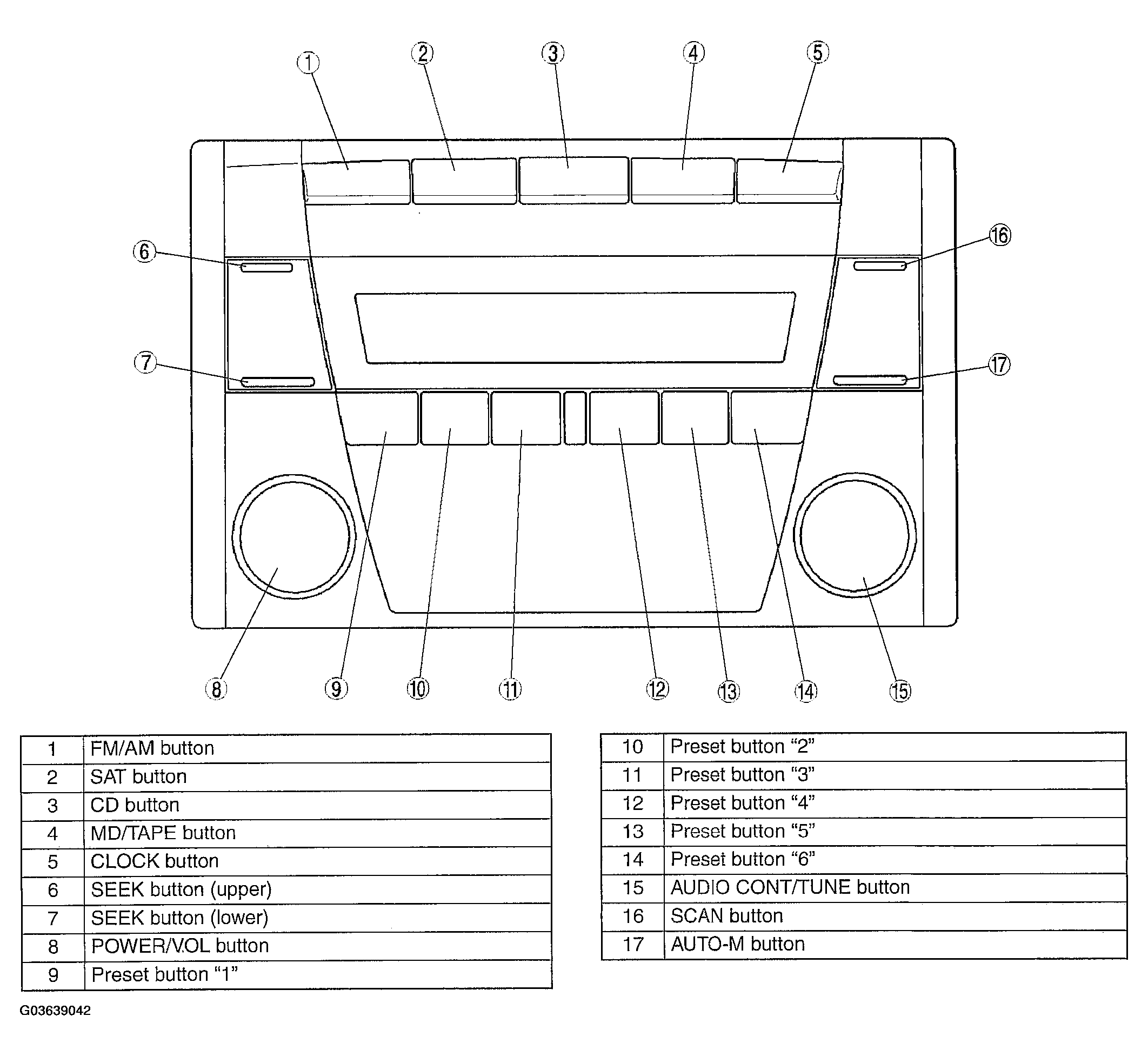

Fig 1: Identifying Switch Location
G03639042Courtesy of MAZDA MOTORS CORP.
