Socket Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hook the harness as shown in the figure.

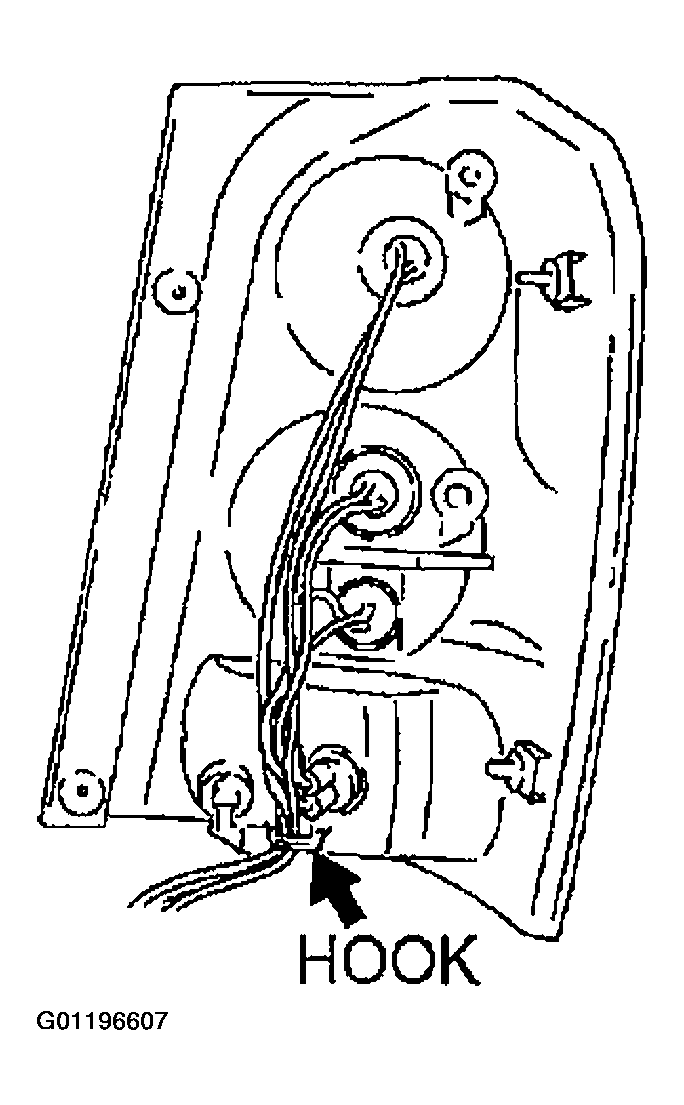

Fig 1: Removing Rear Combination Light Inside Hook
G01196607Courtesy of MAZDA MOTORS CORP.
