Home >> Mazda >> 2007 >> B2300 L4-2.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Testing and Inspection >> Component Tests and General Diagnostics >> Ignition Switch Component Test

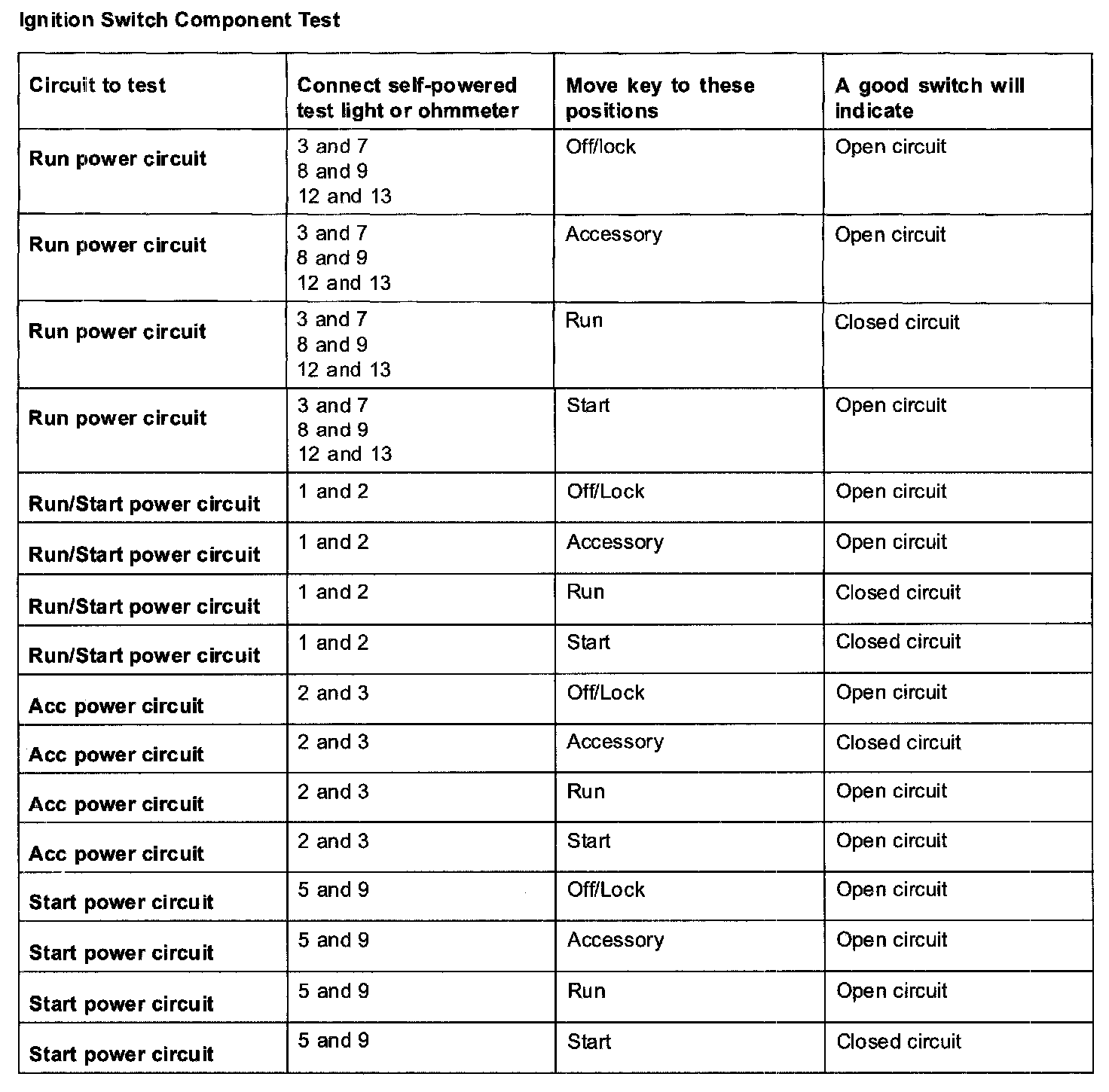

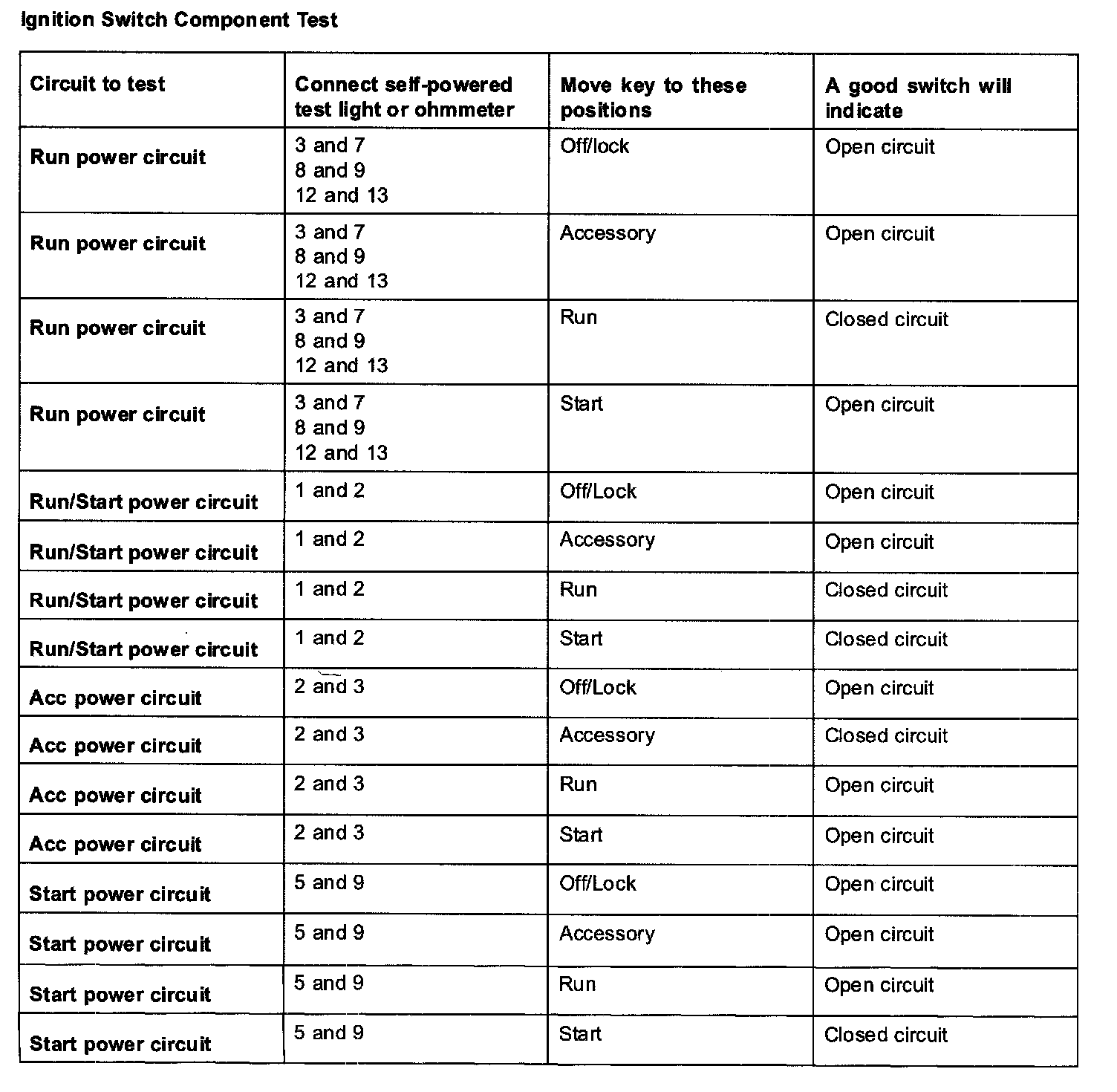

Ignition Switch Component Test

Ignition Switch Component Test:



Ignition Switch Component Test:
