Home >> Mazda >> 2007 >> B2300 L4-2.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

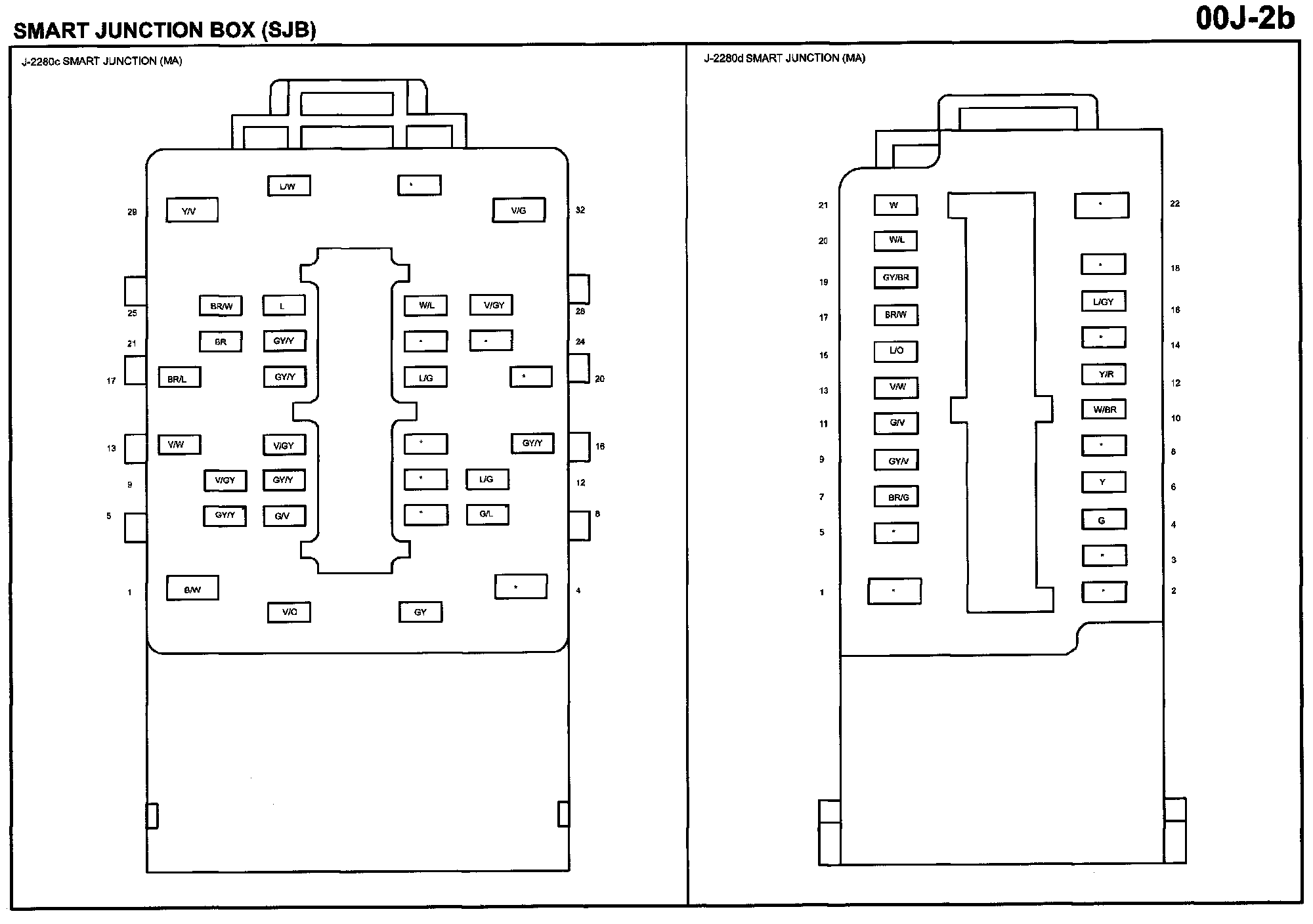

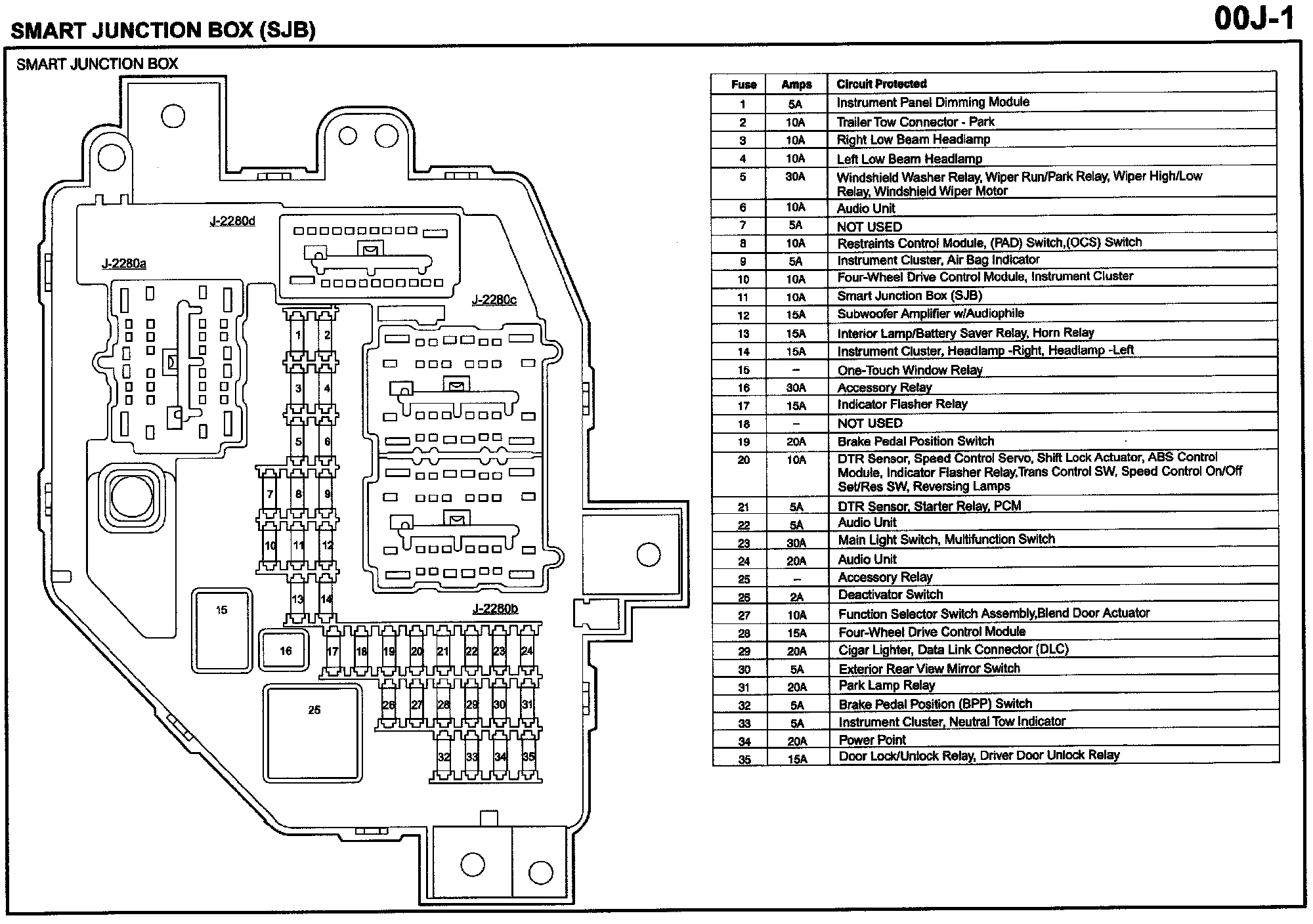

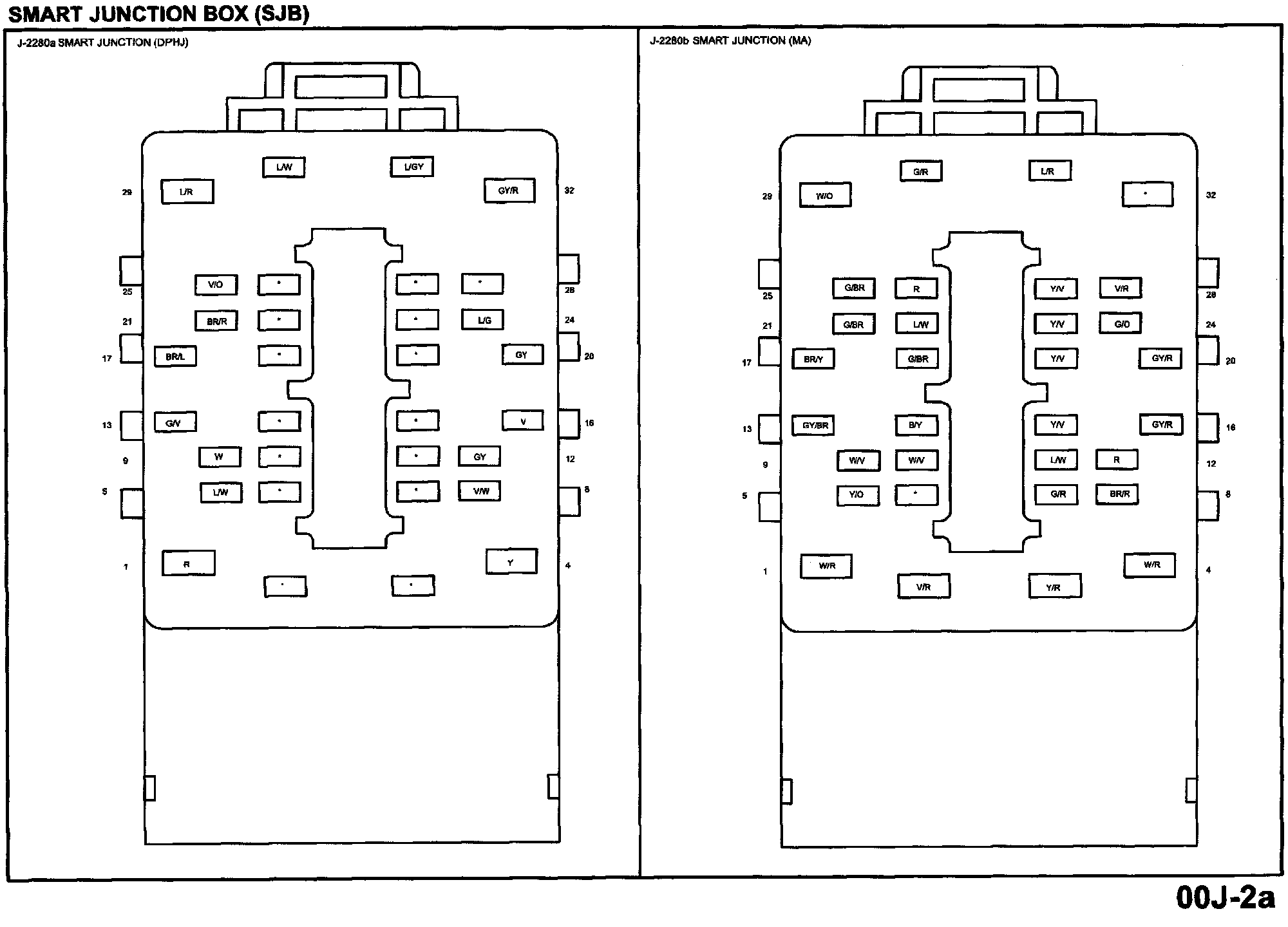

Smart Junction Box(SJB):



Smart Junction Box(SJB):



Smart Junction Box(SJB):
