Symptom Related Diagnostic Procedures

Symptom Troubleshooting Chart

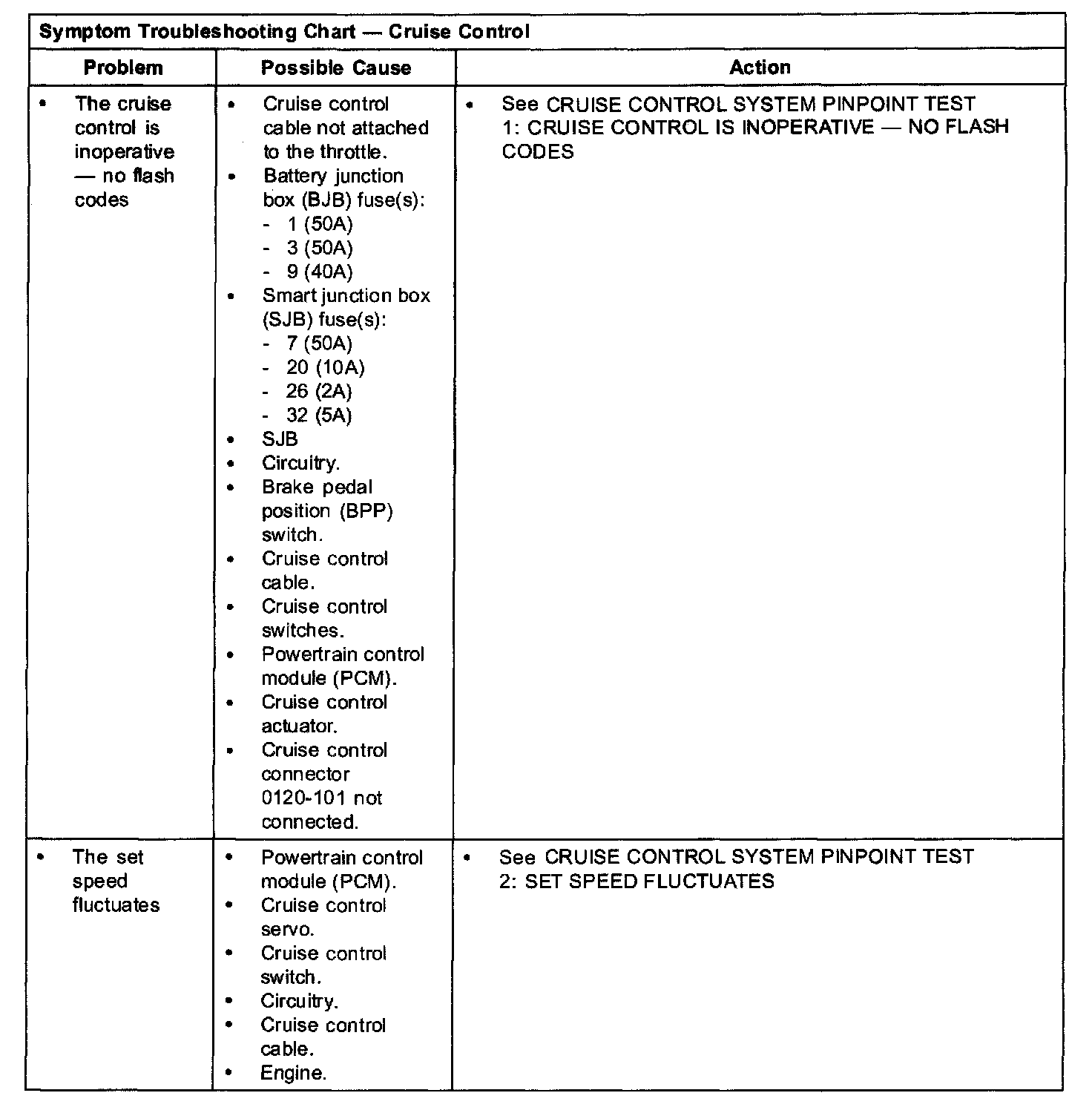

Symptom Troubleshooting Chart - Cruise Control Part 1:

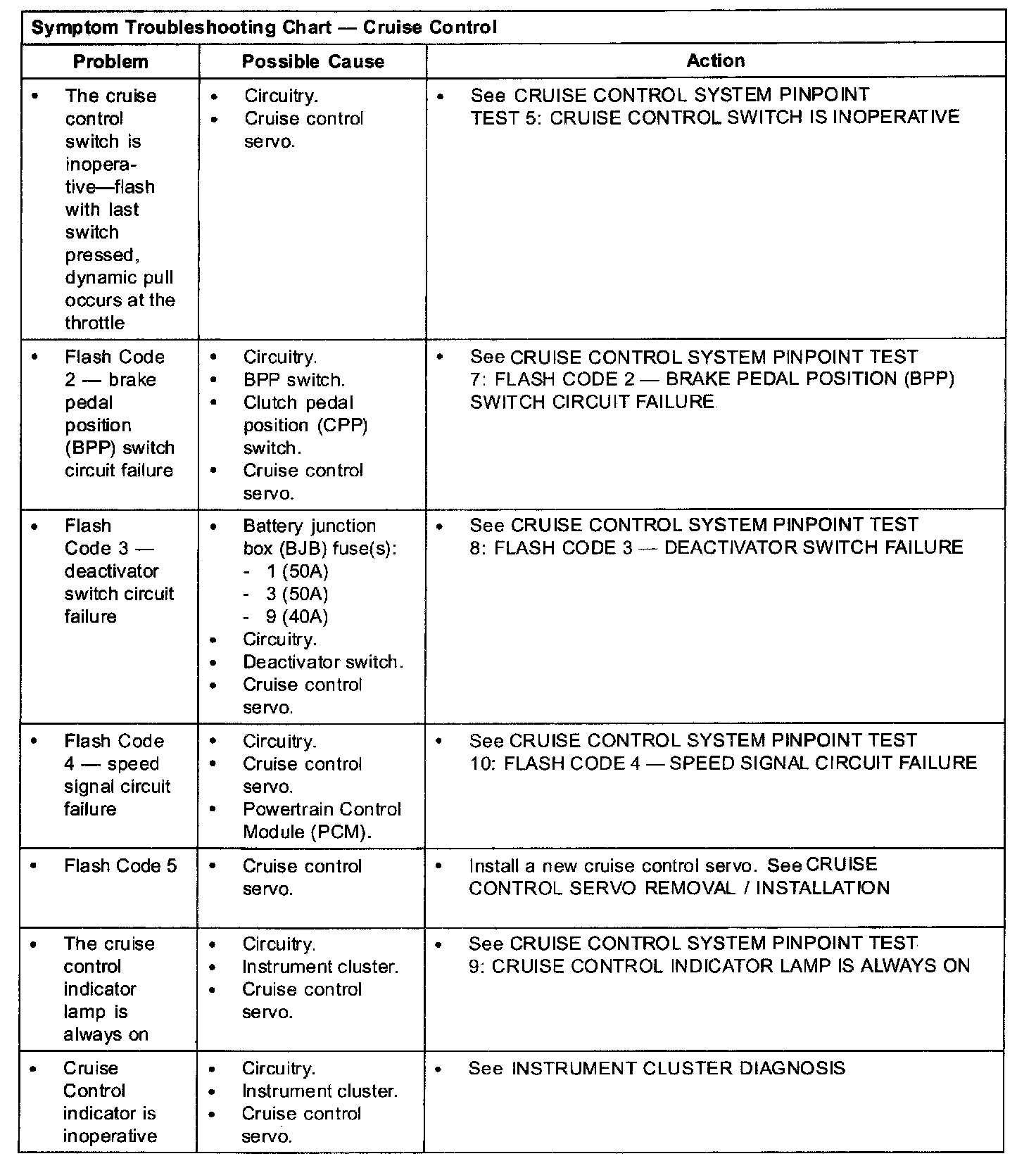

Symptom Troubleshooting Chart - Cruise Control Part 2:

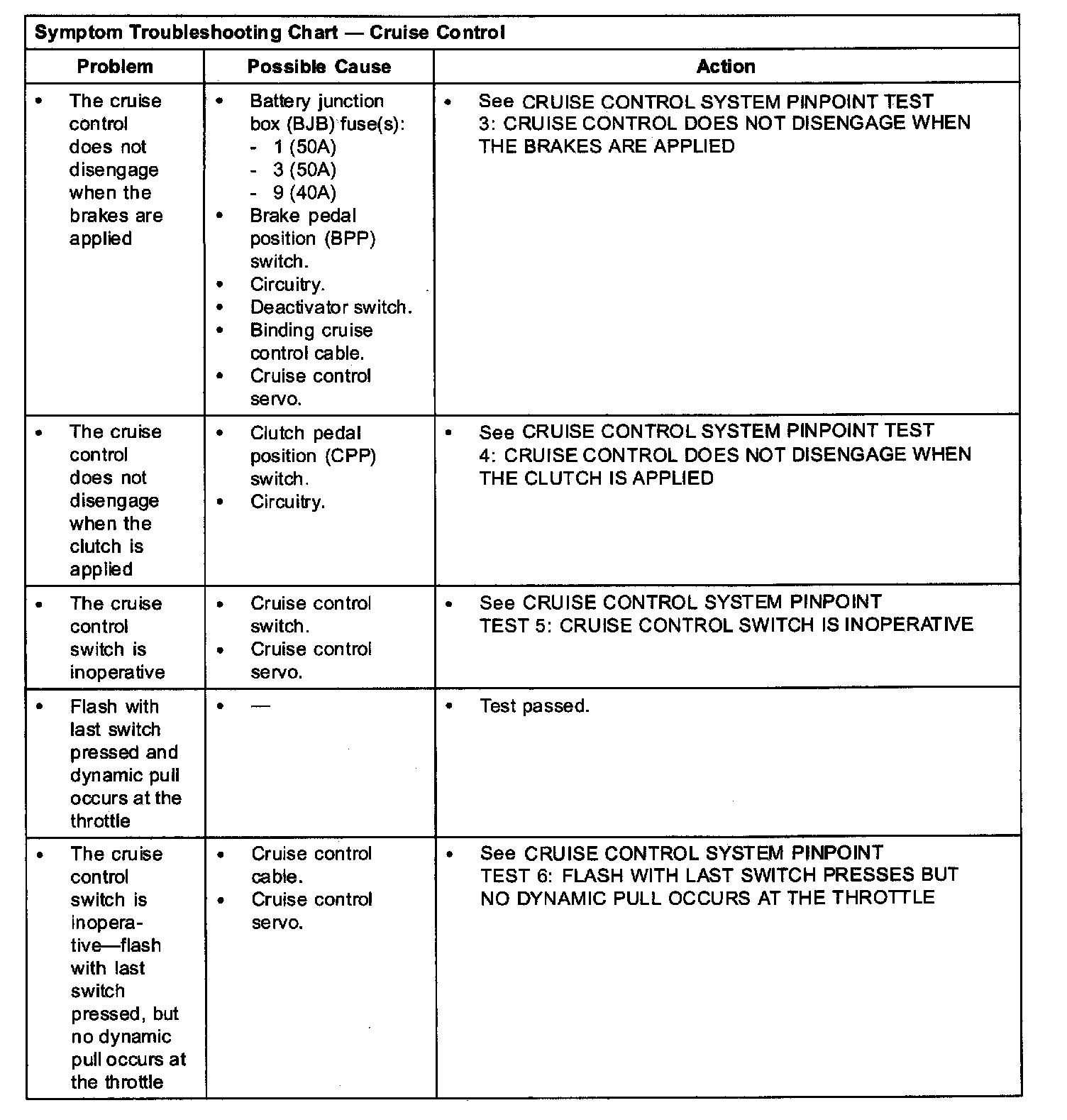

Symptom Troubleshooting Chart - Cruise Control Part 3:






NOTE: Self-Test Diagnostics must be performed before proceeding to Symptom Troubleshooting Chart.
