Connector End Views
Connector End Views

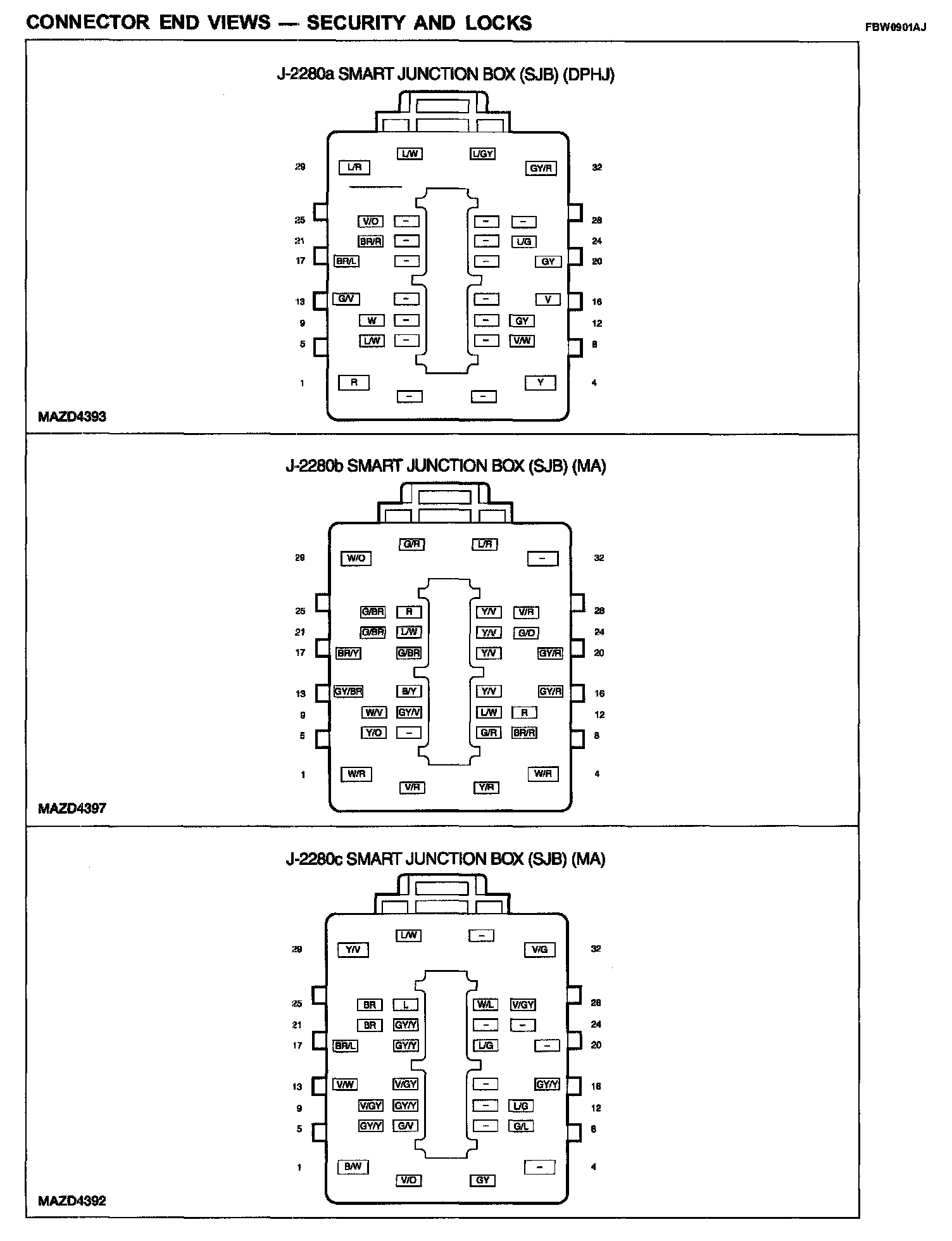

Connector End Views - Security And Locks (Part 1):

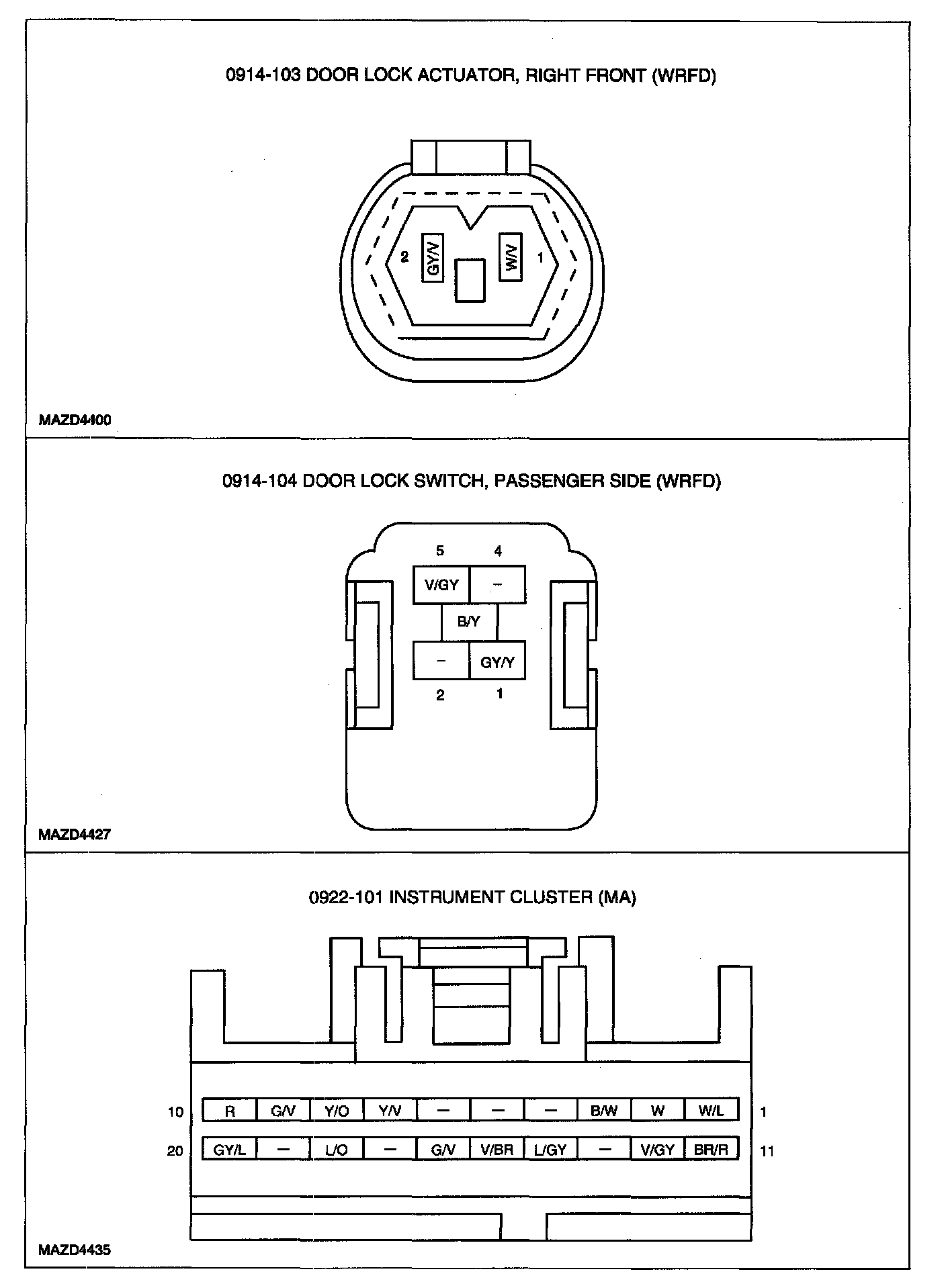

Connector End Views - Security And Locks (Part 2):

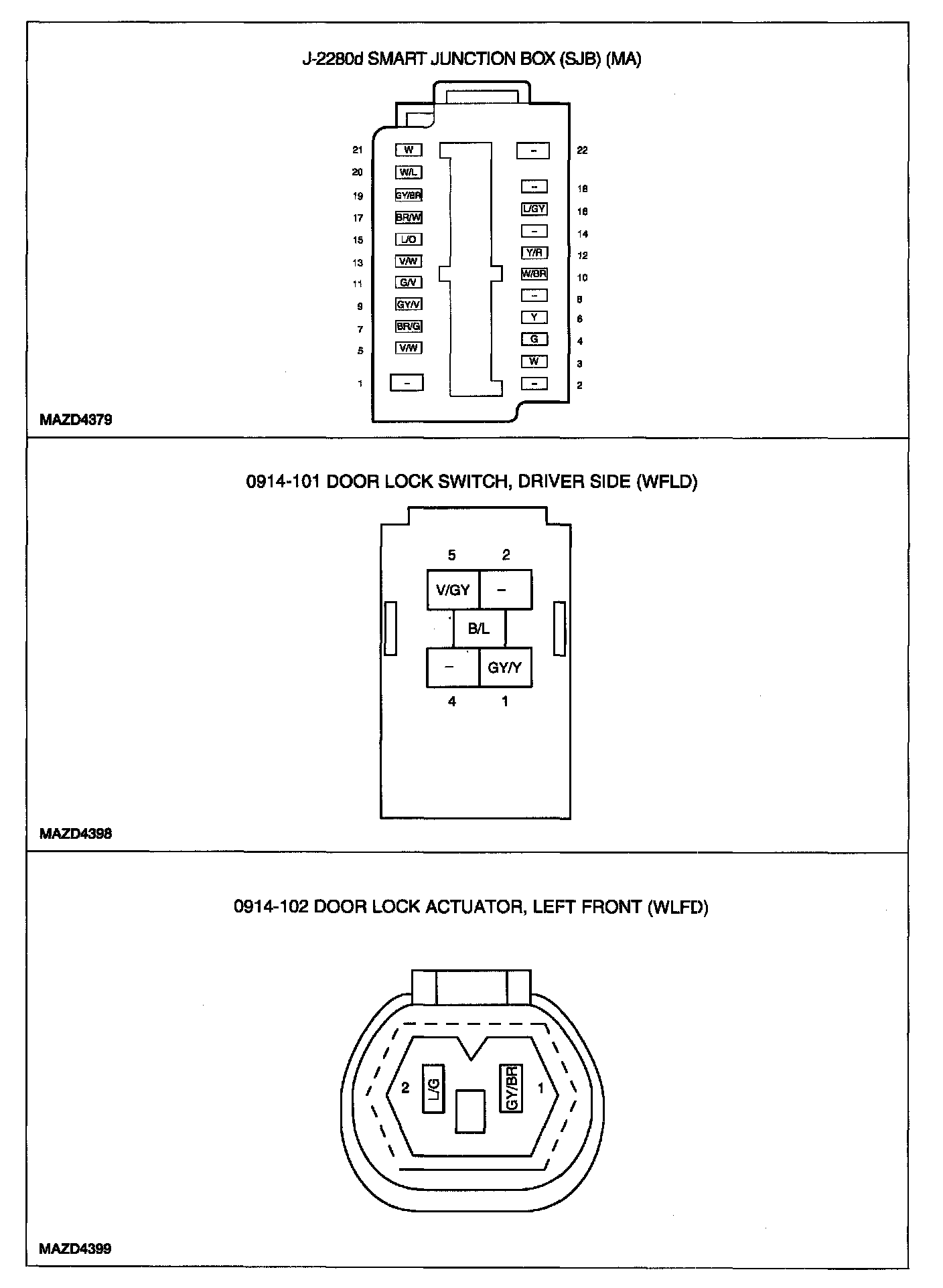

Connector End Views - Security And Locks (Part 3):
