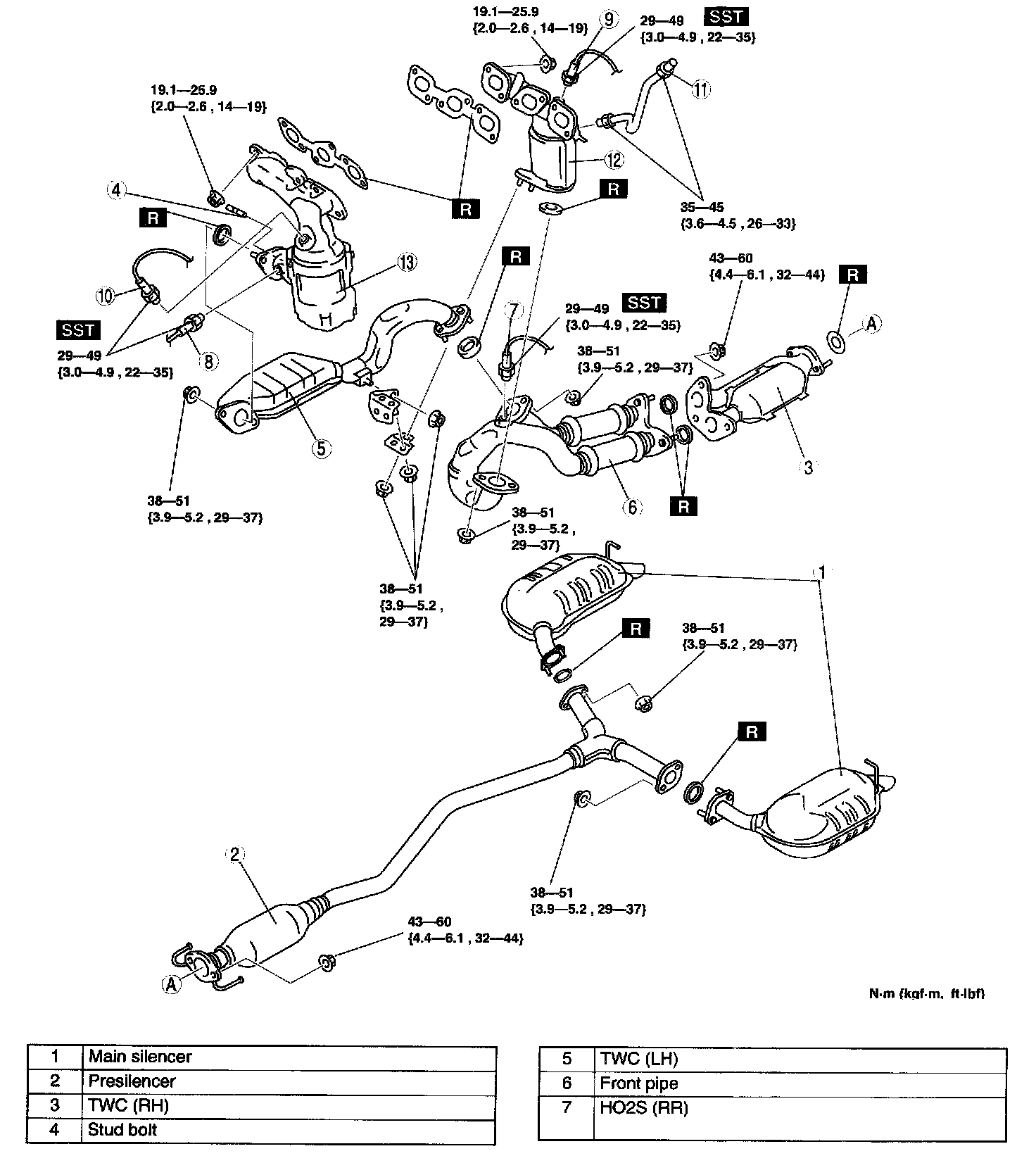

Exhaust Manifold

Part 1:




Part 2:









Tighten the exhaust manifold installation nuts in the order shown.
