Mazda
>>
2007
>>
6 V6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Boost Sensor
>>
Locations
>>
Connector Locations
Connector Locations

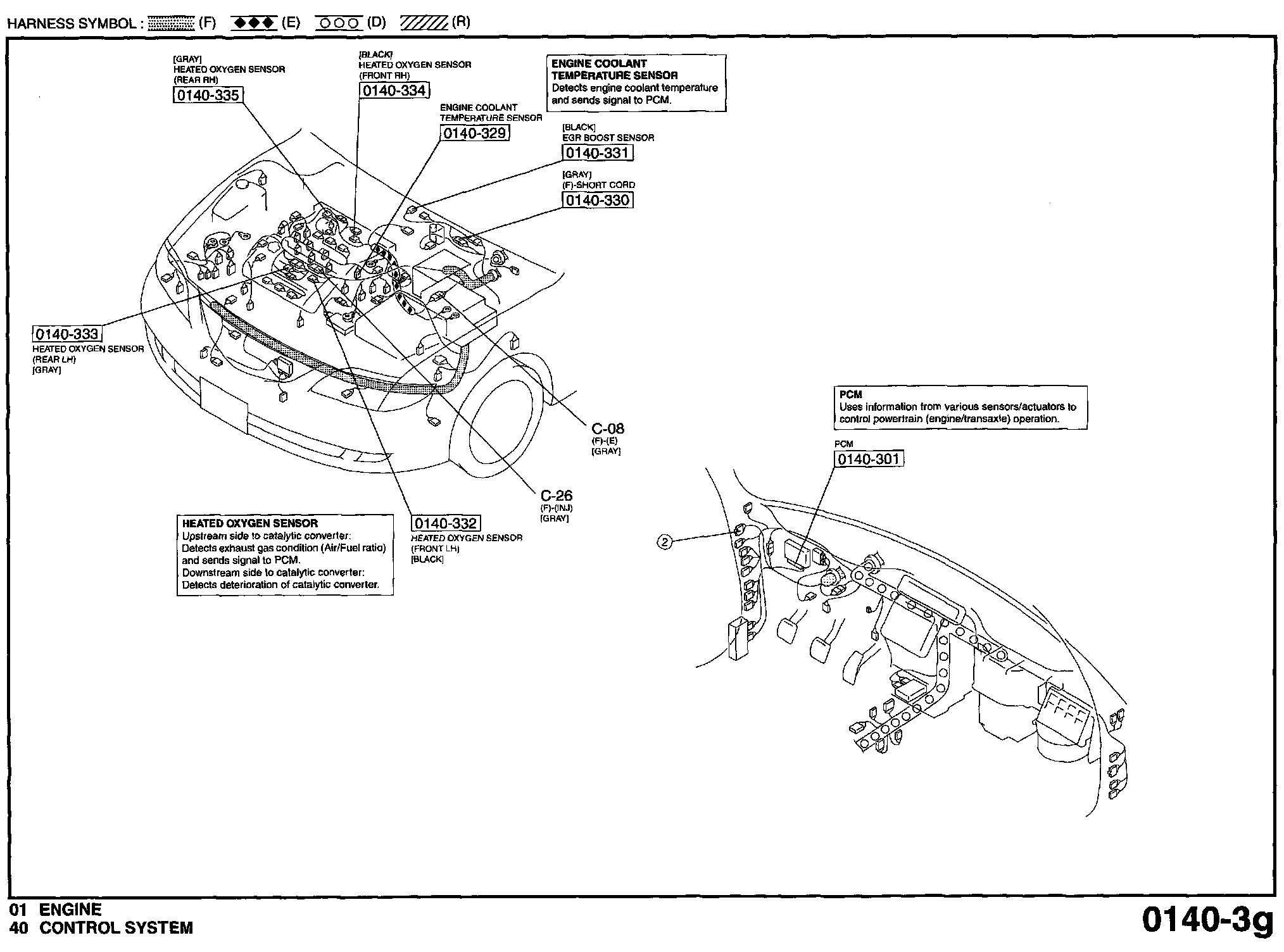

Routing View 0140-3g:

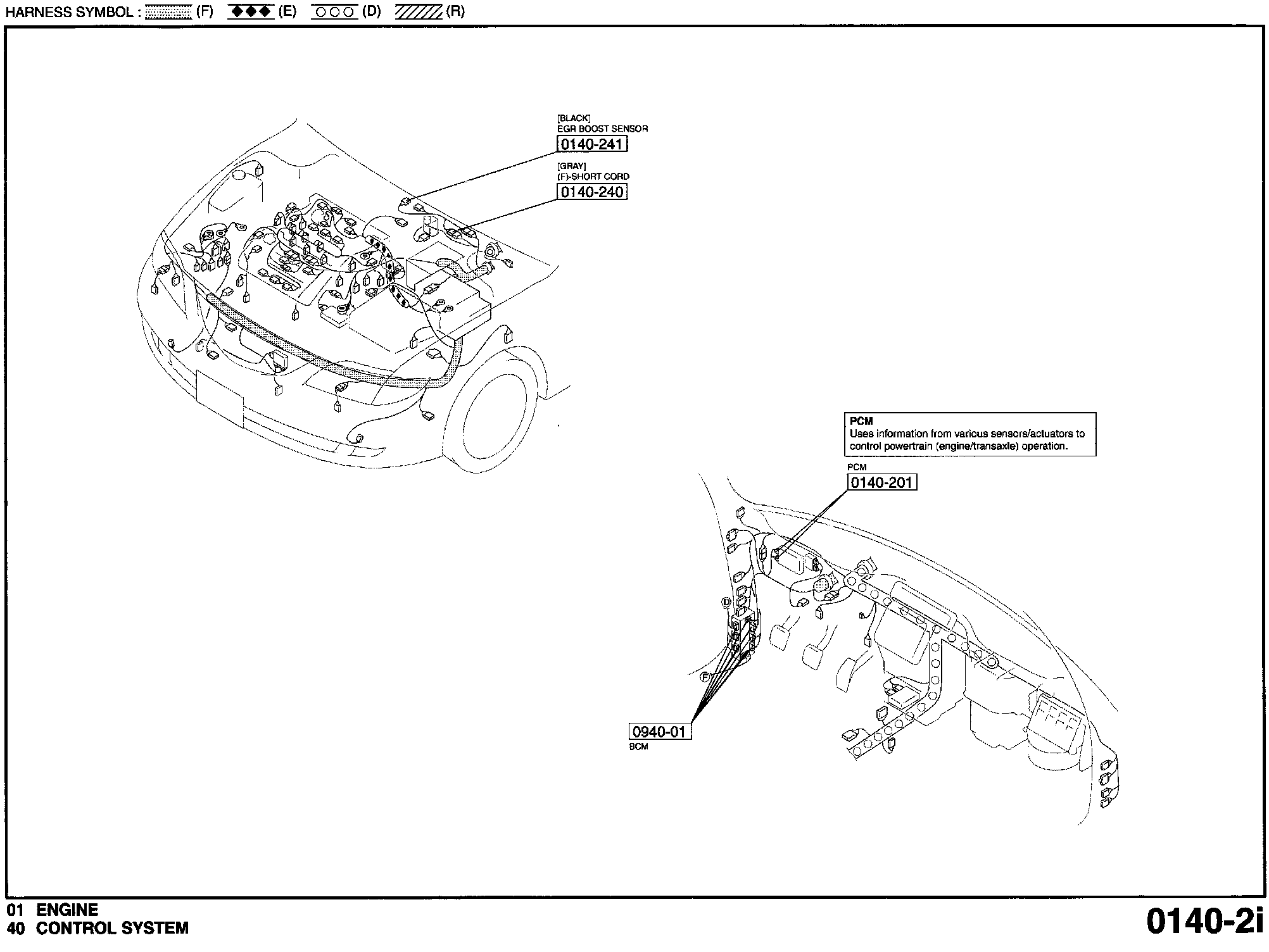

Routing View 0140-2i:
