Lighting and Horns: Testing and Inspection

DISCHARGE HEADLIGHT SYSTEM INSPECTION

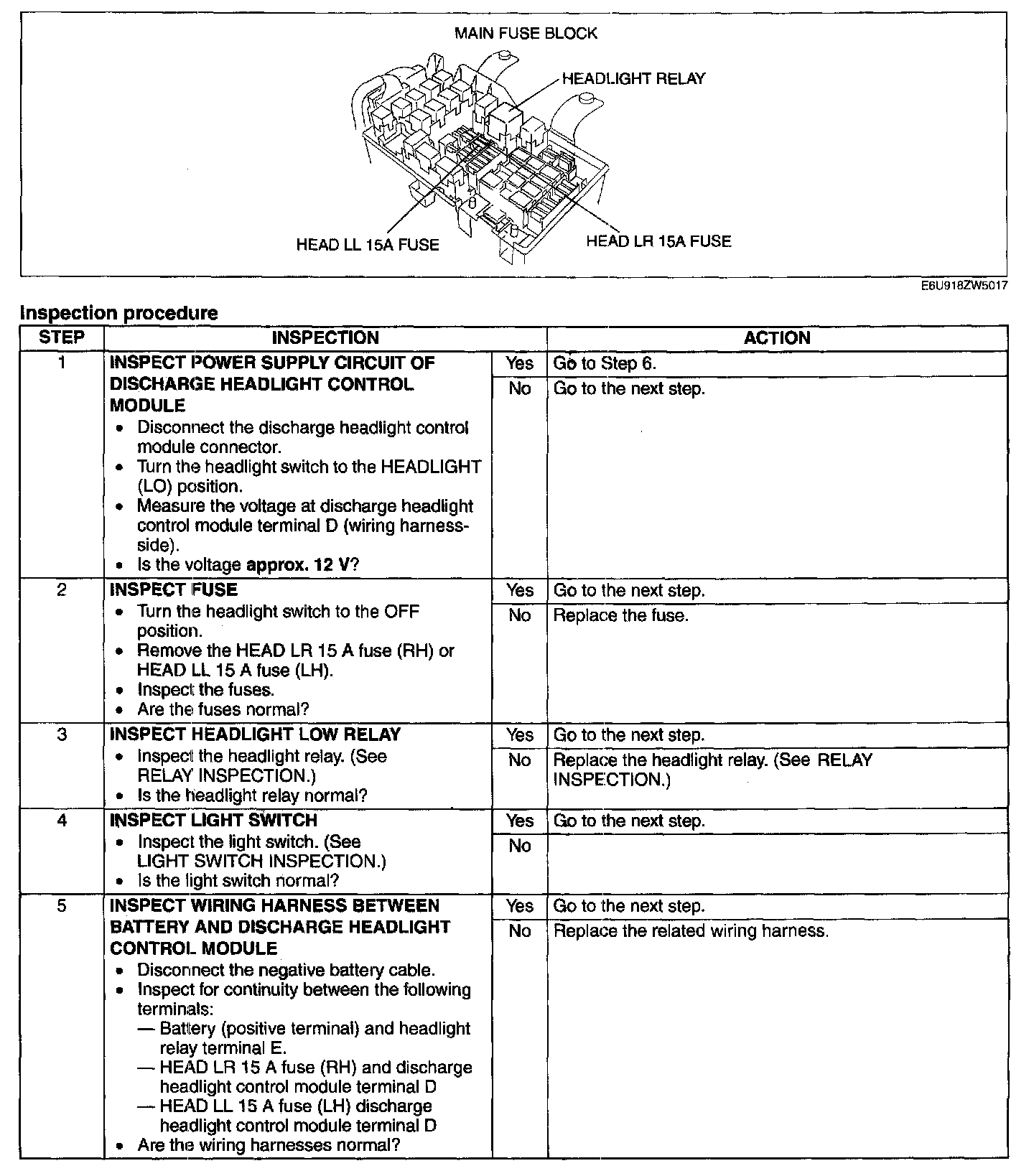

Step 1-Step 5:

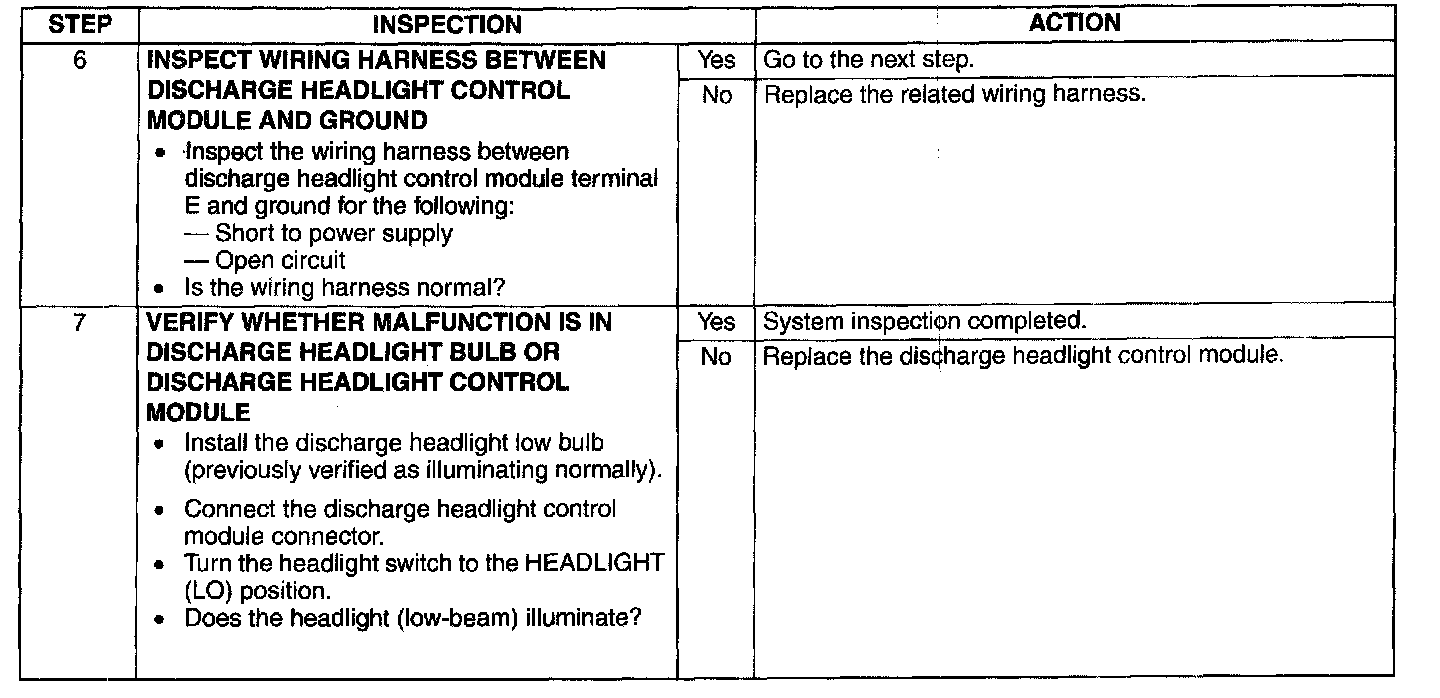

Step 6-Step 7:




Discharge Headlight Inoperative

WARNING: Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. Service Precautions
