Brake Pad: Service and Repair

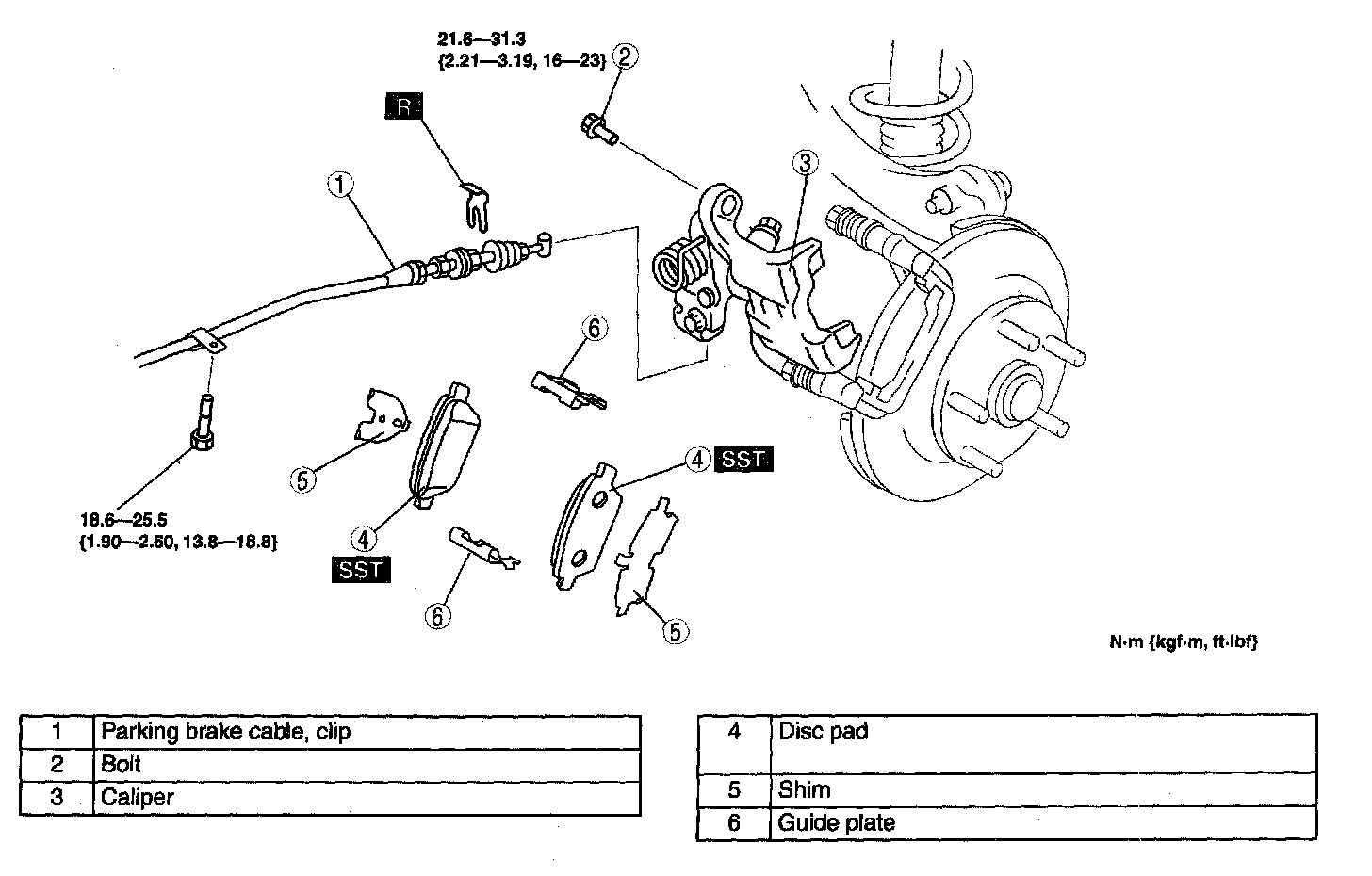

DISC PAD (REAR) REPLACEMENT





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
