Home >> Mazda >> 2007 >> 5 L4-2.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PID/Data Monitor Table

PID/Data Monitor Table

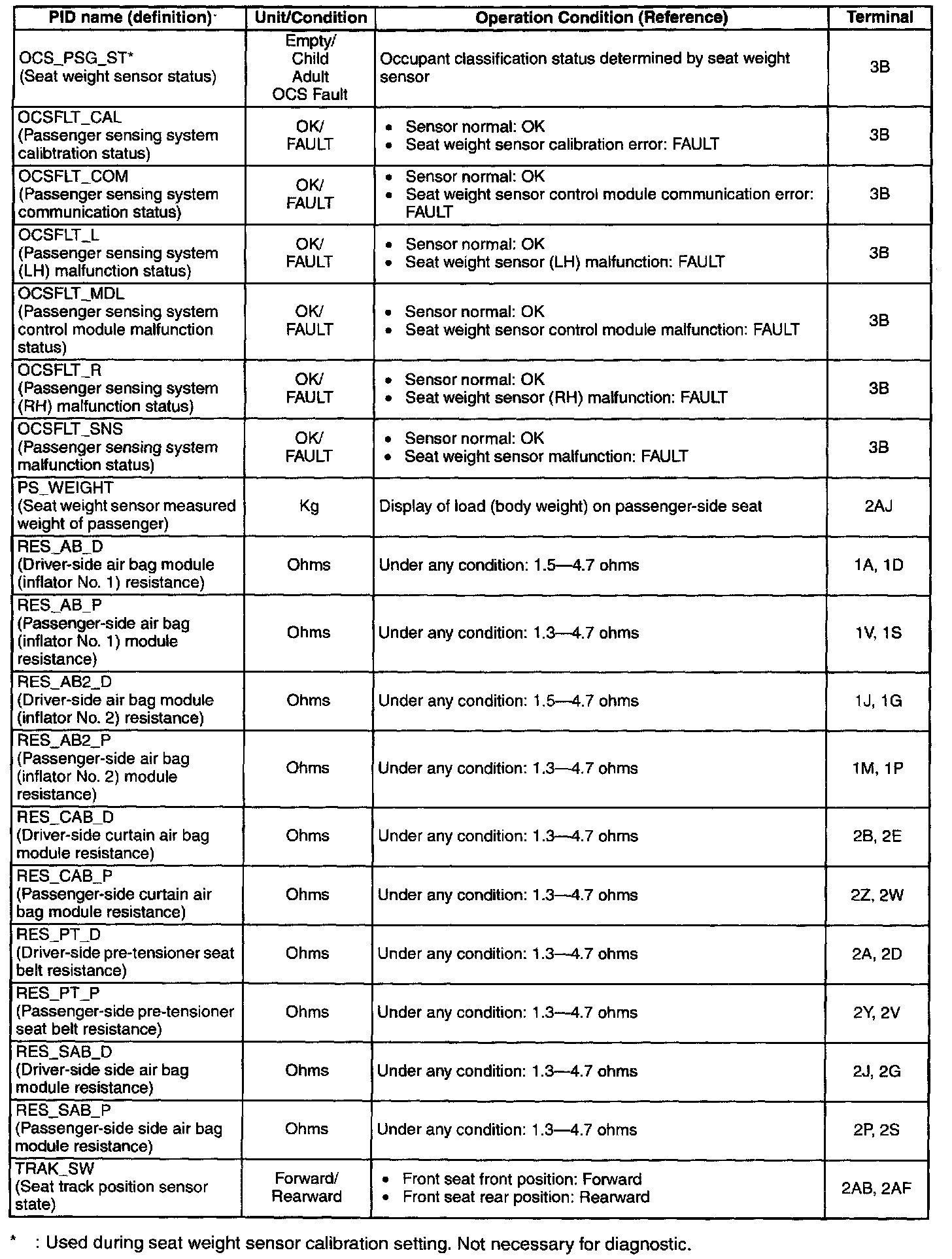

PID/data Monitor Table (Part 1):



PID/data Monitor Table (Part 2):
