Front

DISC PAD (FRONT) REPLACEMENT [LF, L3]

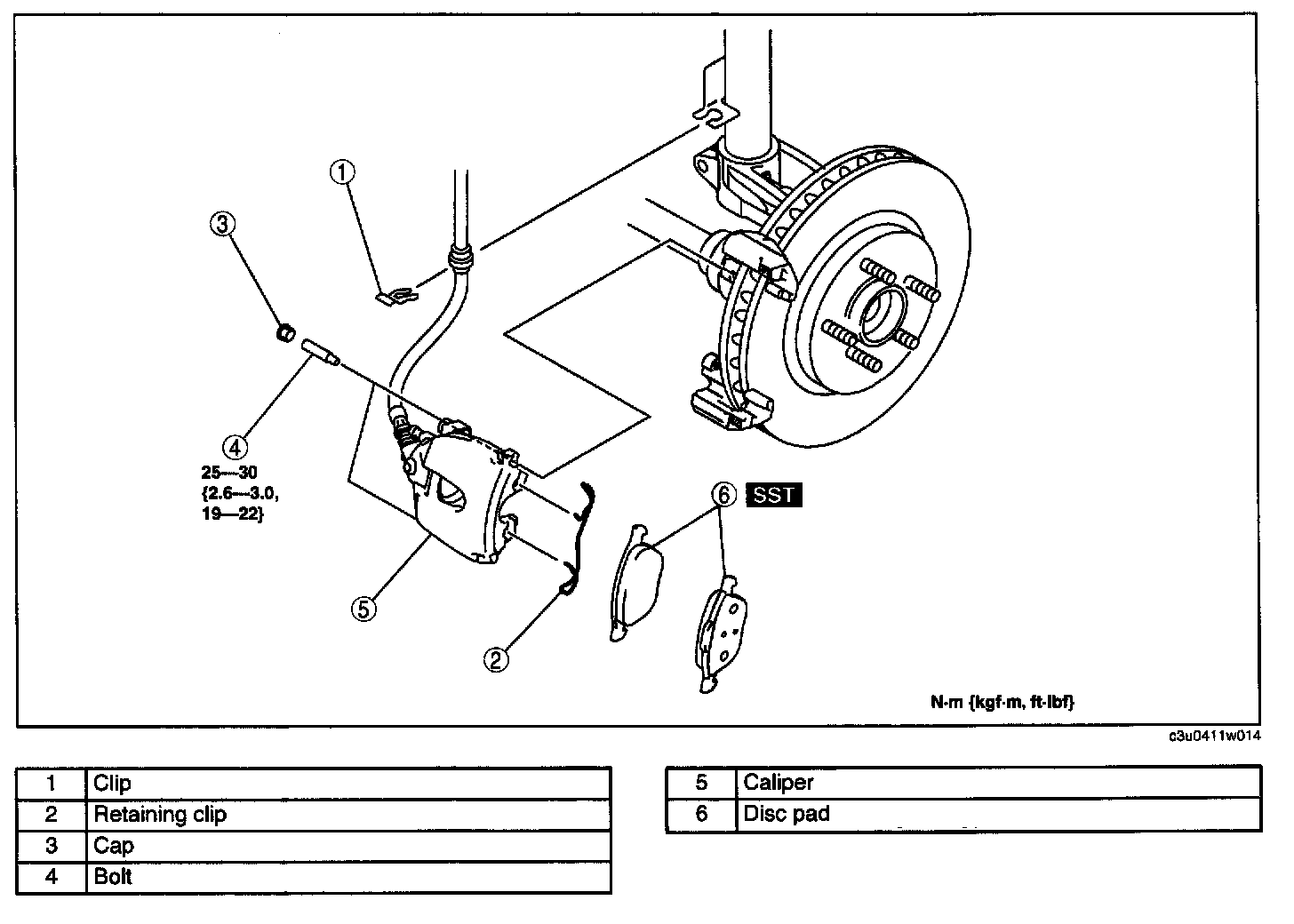

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.
