Home >> Mazda >> 2007 >> 3 L4-2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Knock Sensor

Knock Sensor

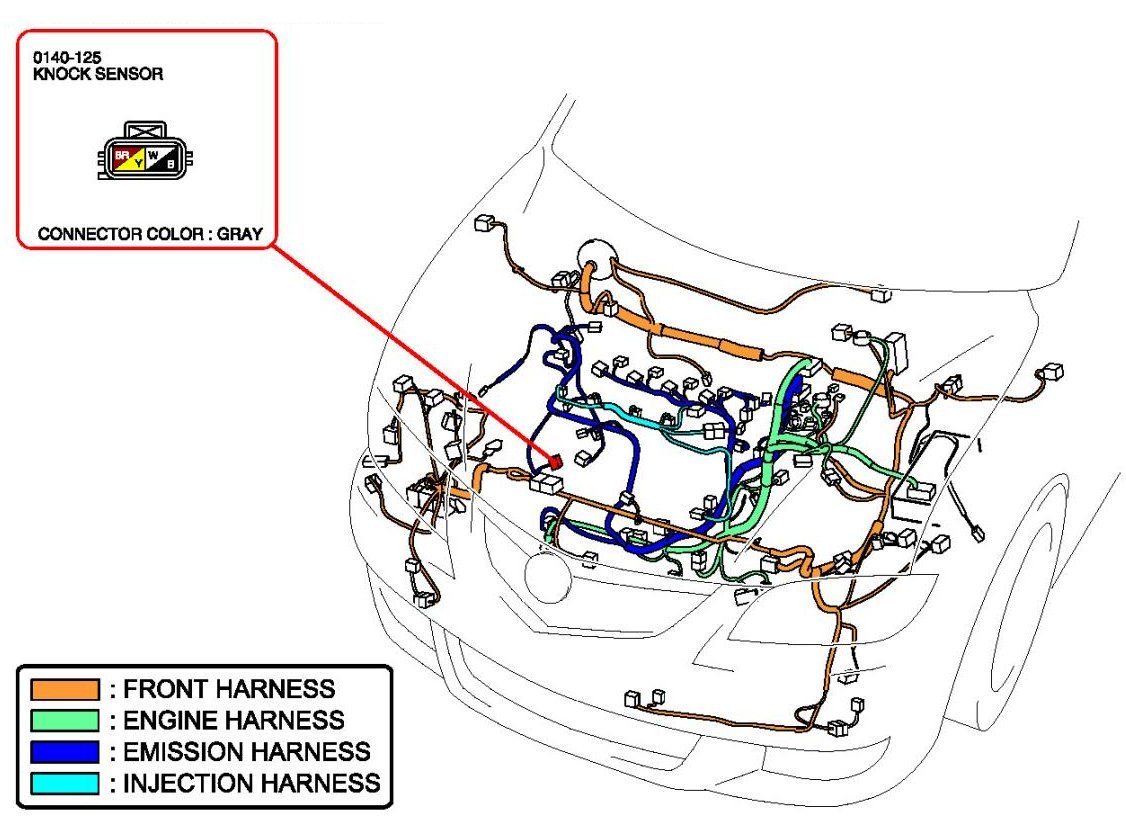

Knock Sensor:

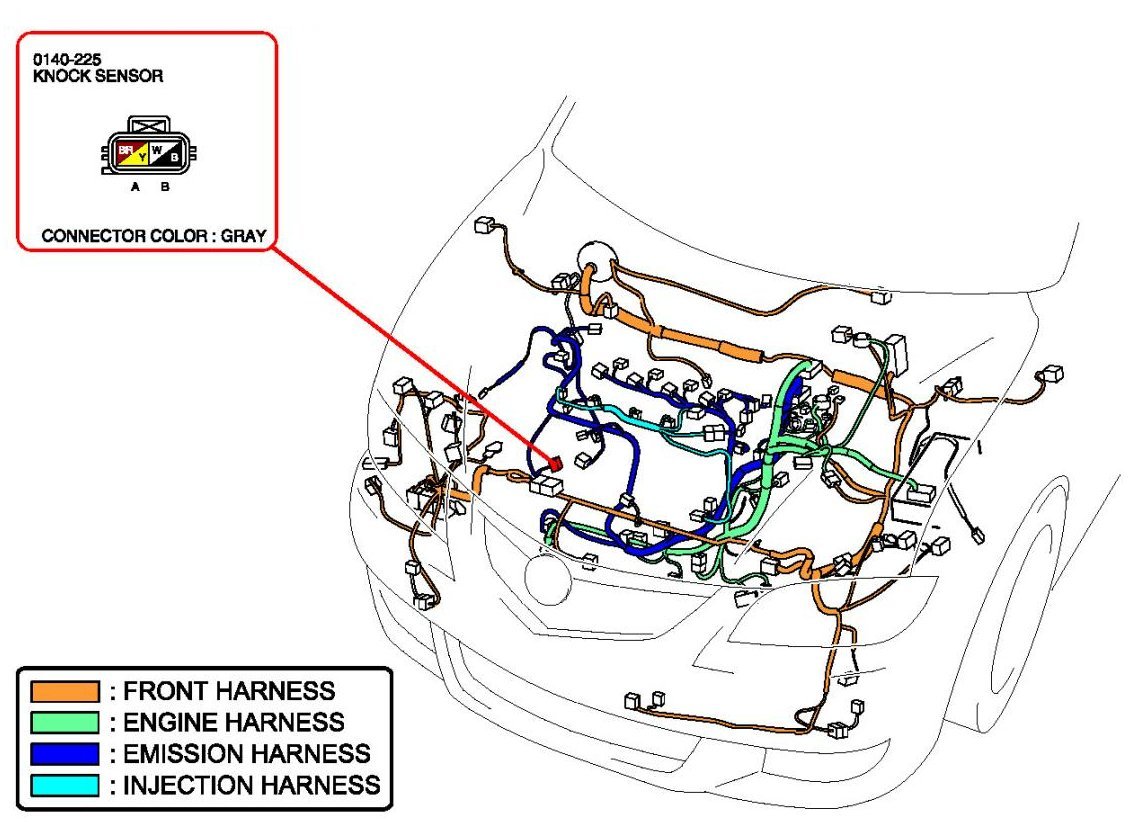

Knock Sensor:
