Restraints and Safety Systems

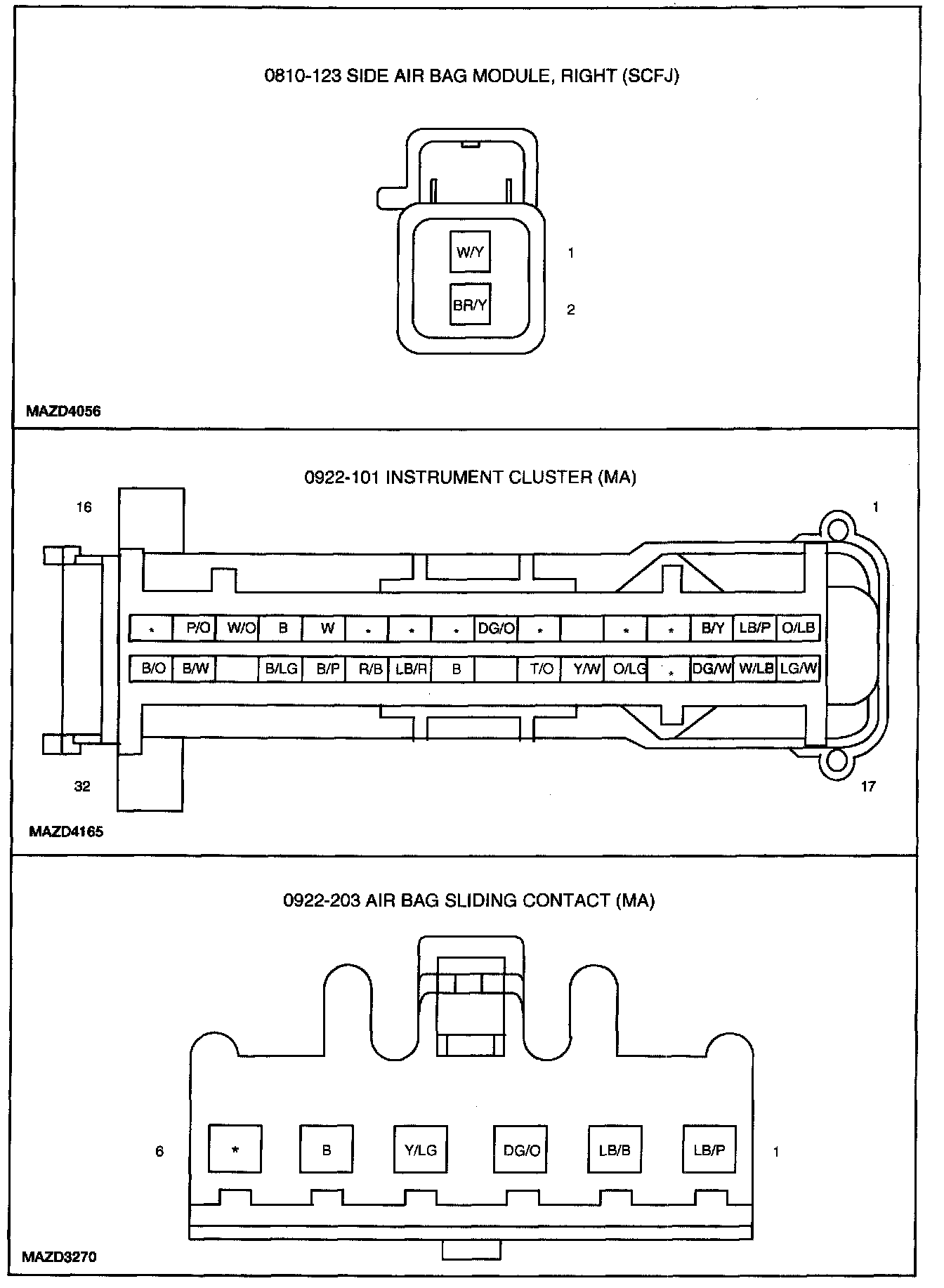

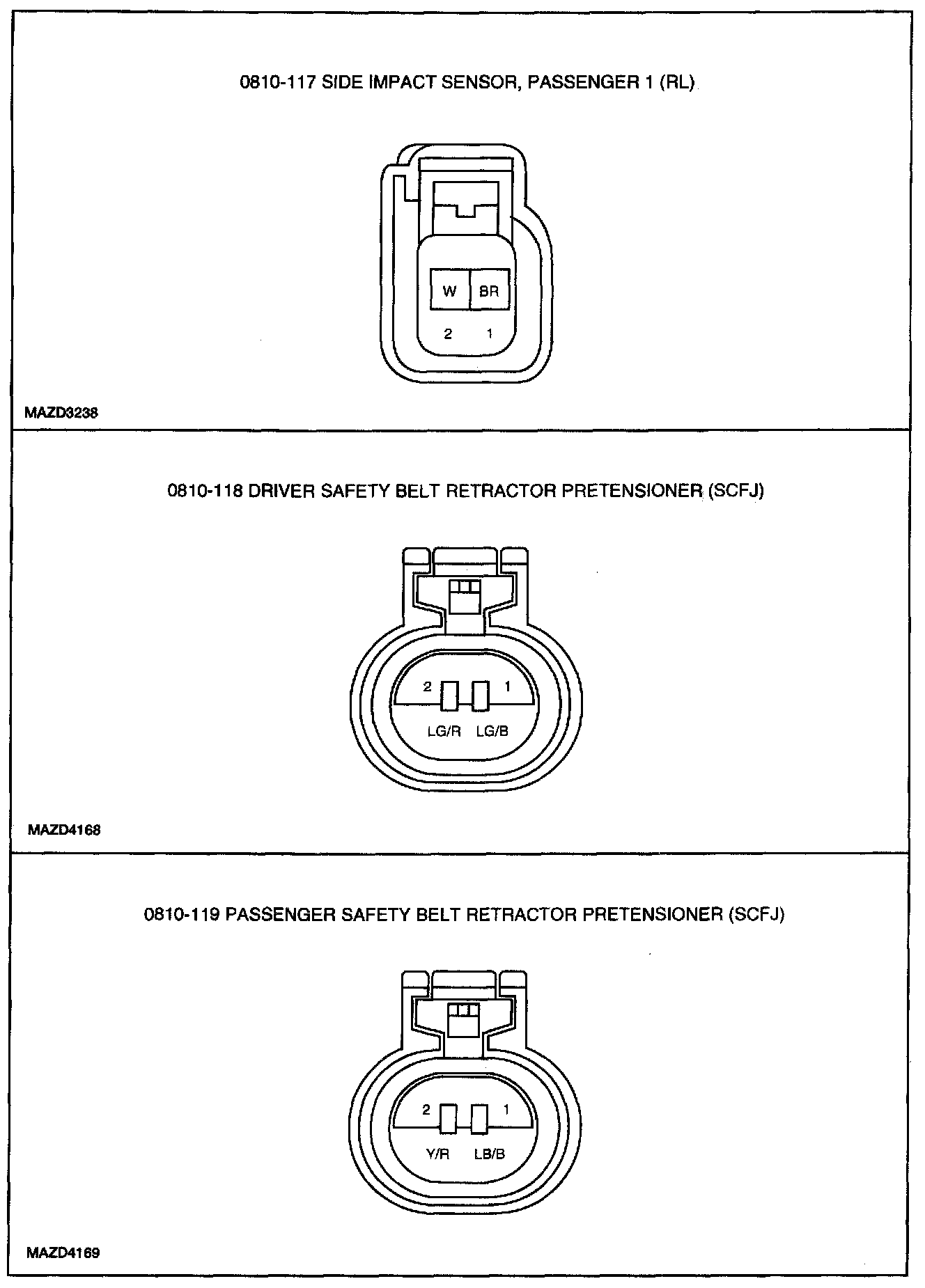

Connector End Views-Restraints:

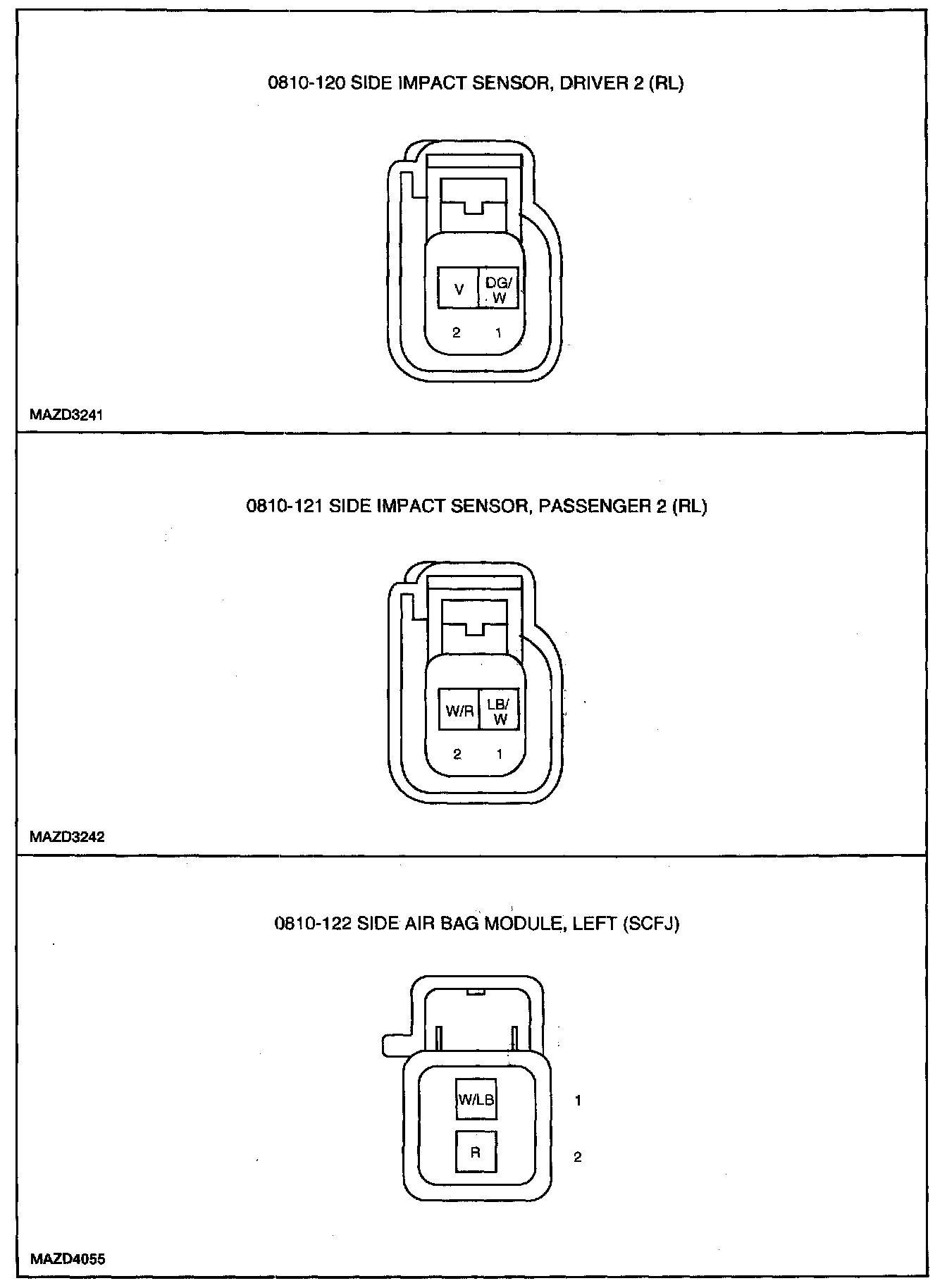

Connector End Views-Restraints:

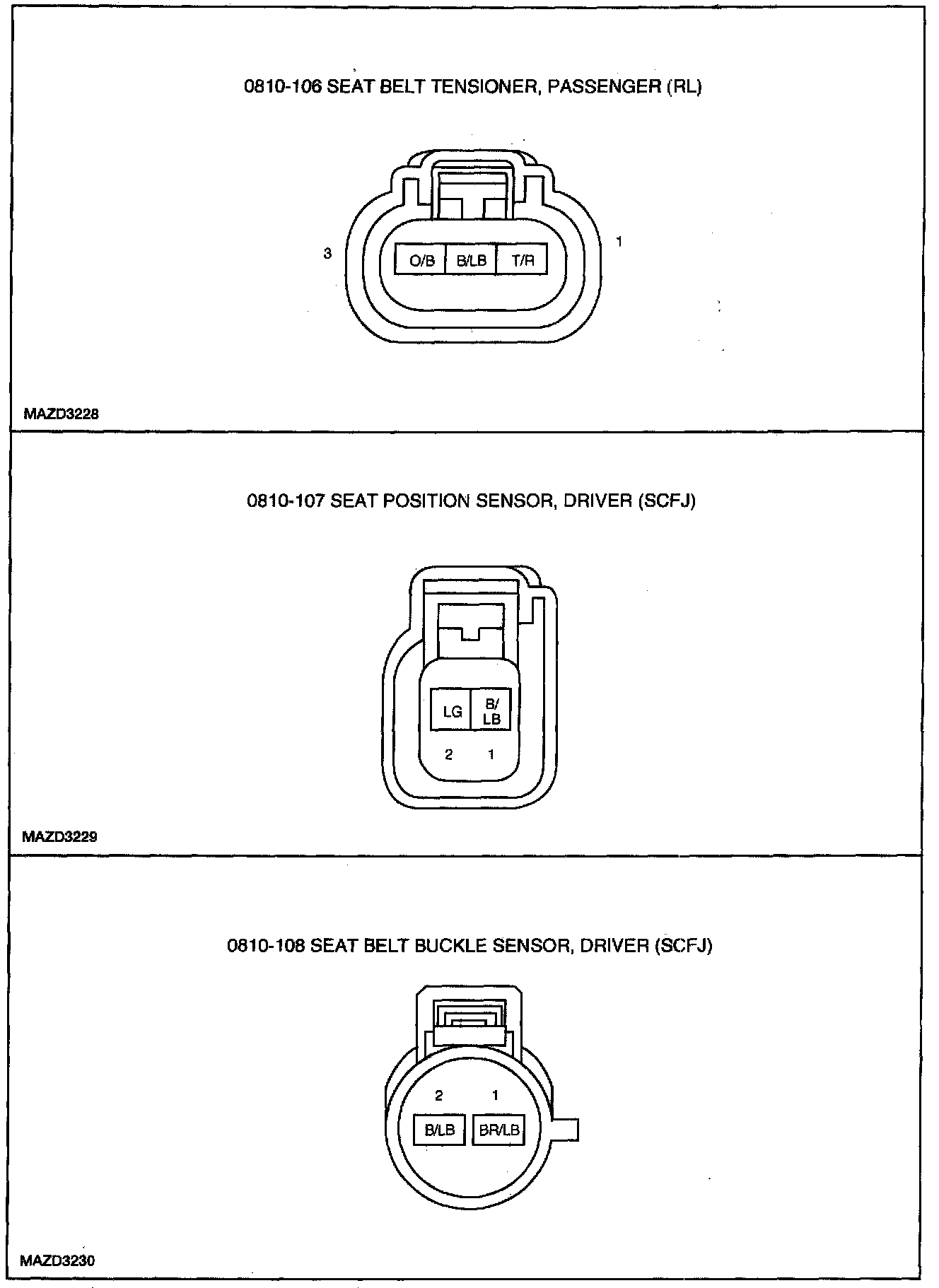

Connector End Views-Restraints:

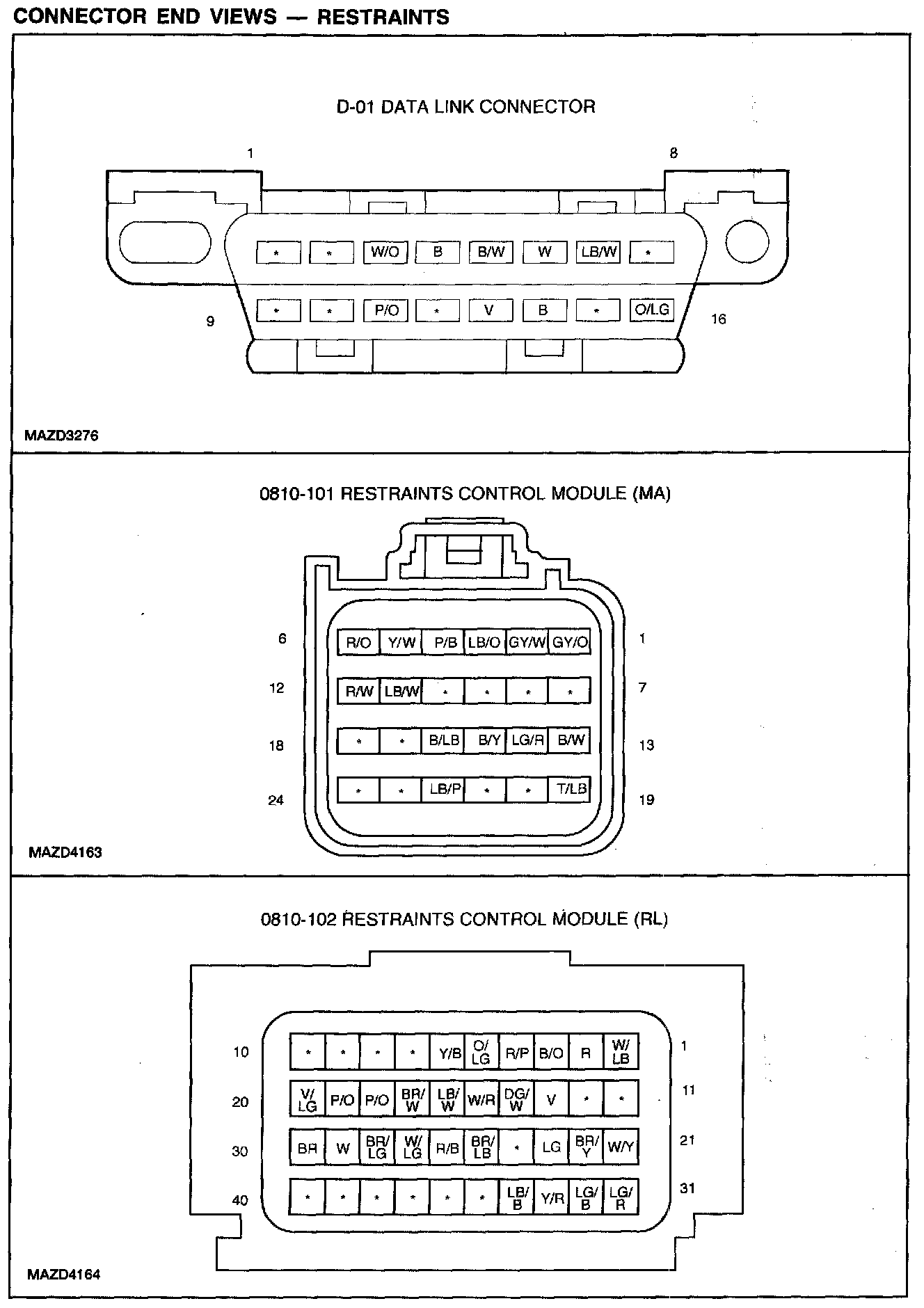

Connector End Views-Restraints:

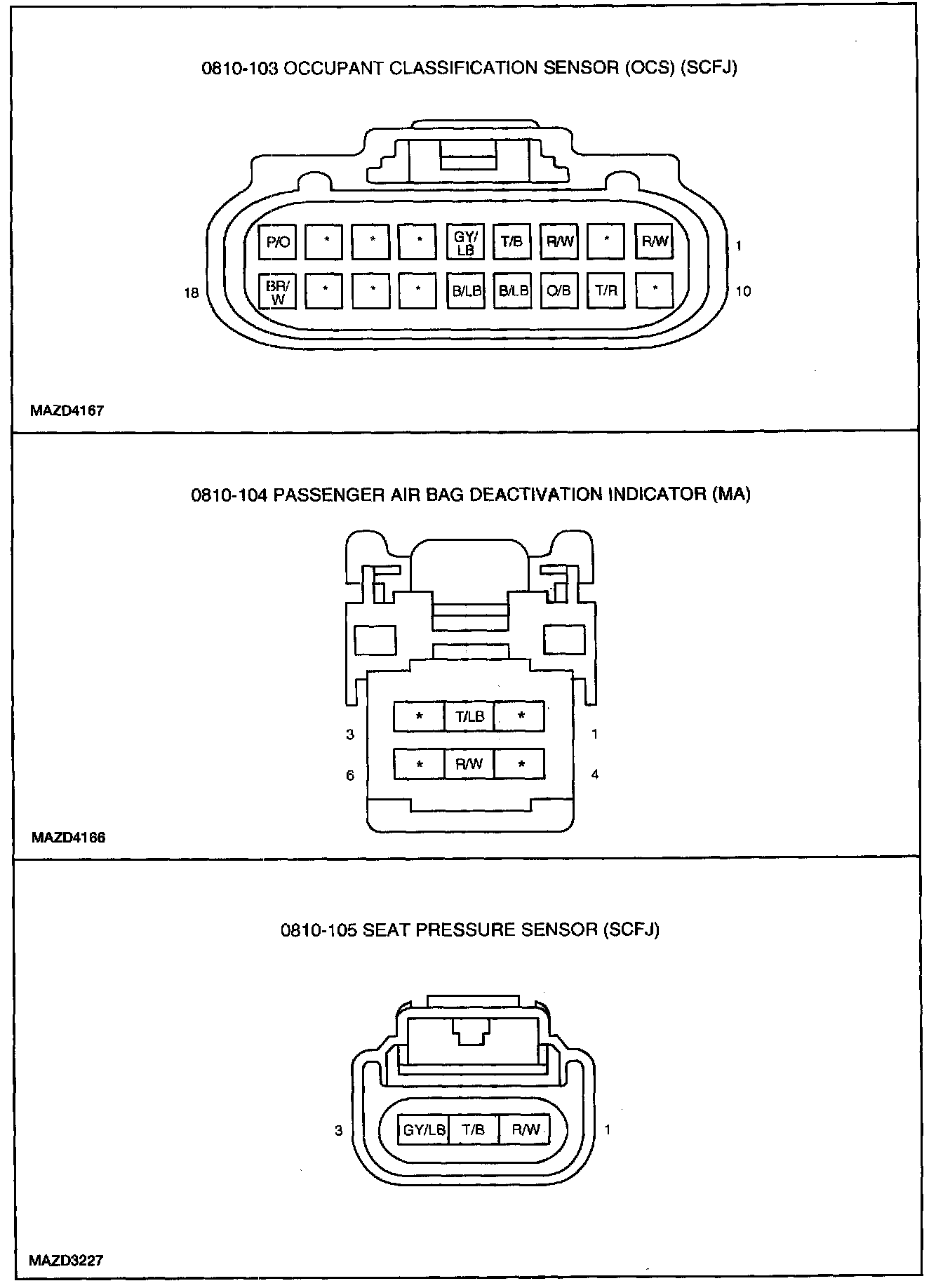

Connector End Views-Restraints:

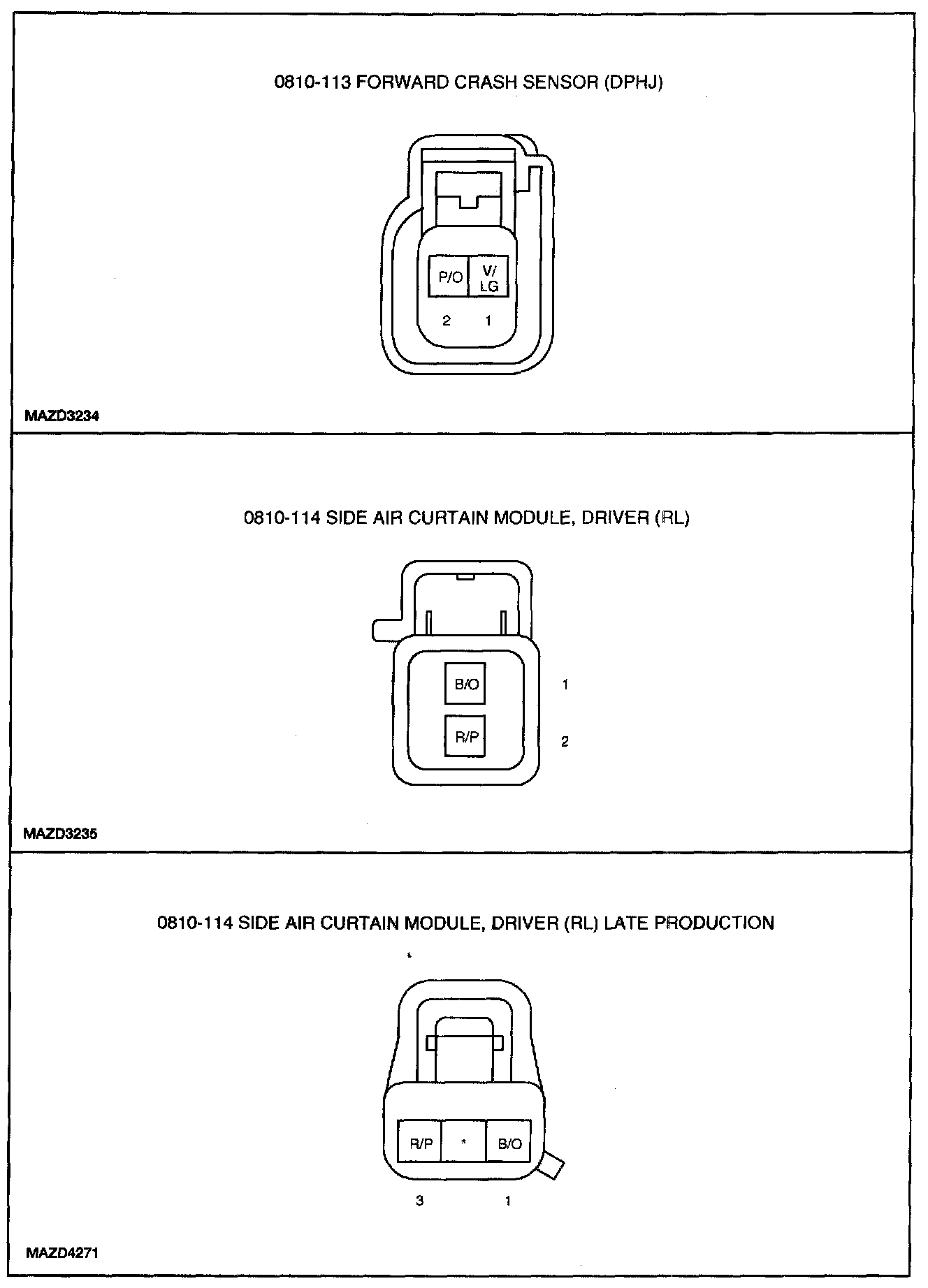

Connector End Views-Restraints:

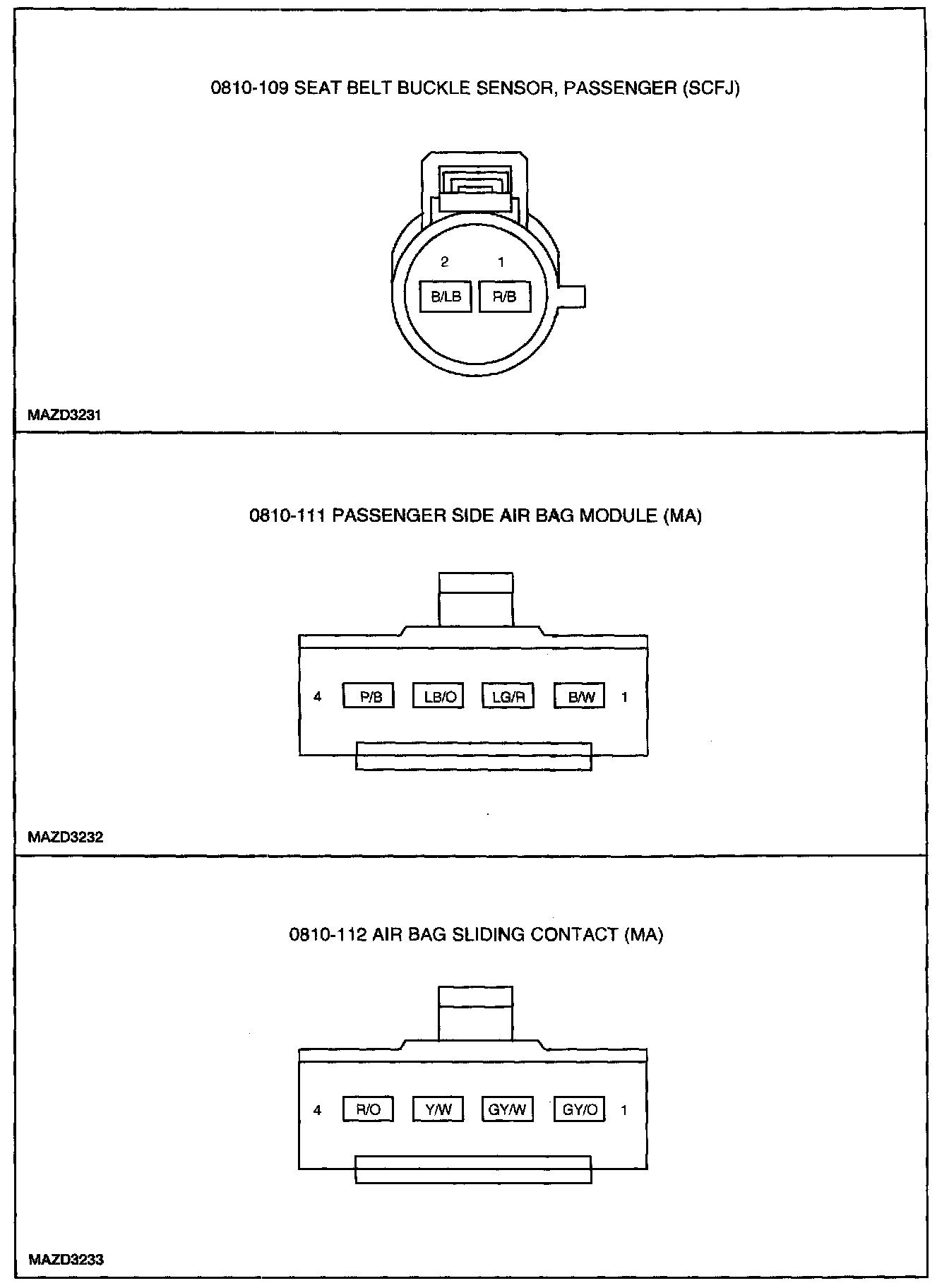

Connector End Views-Restraints:

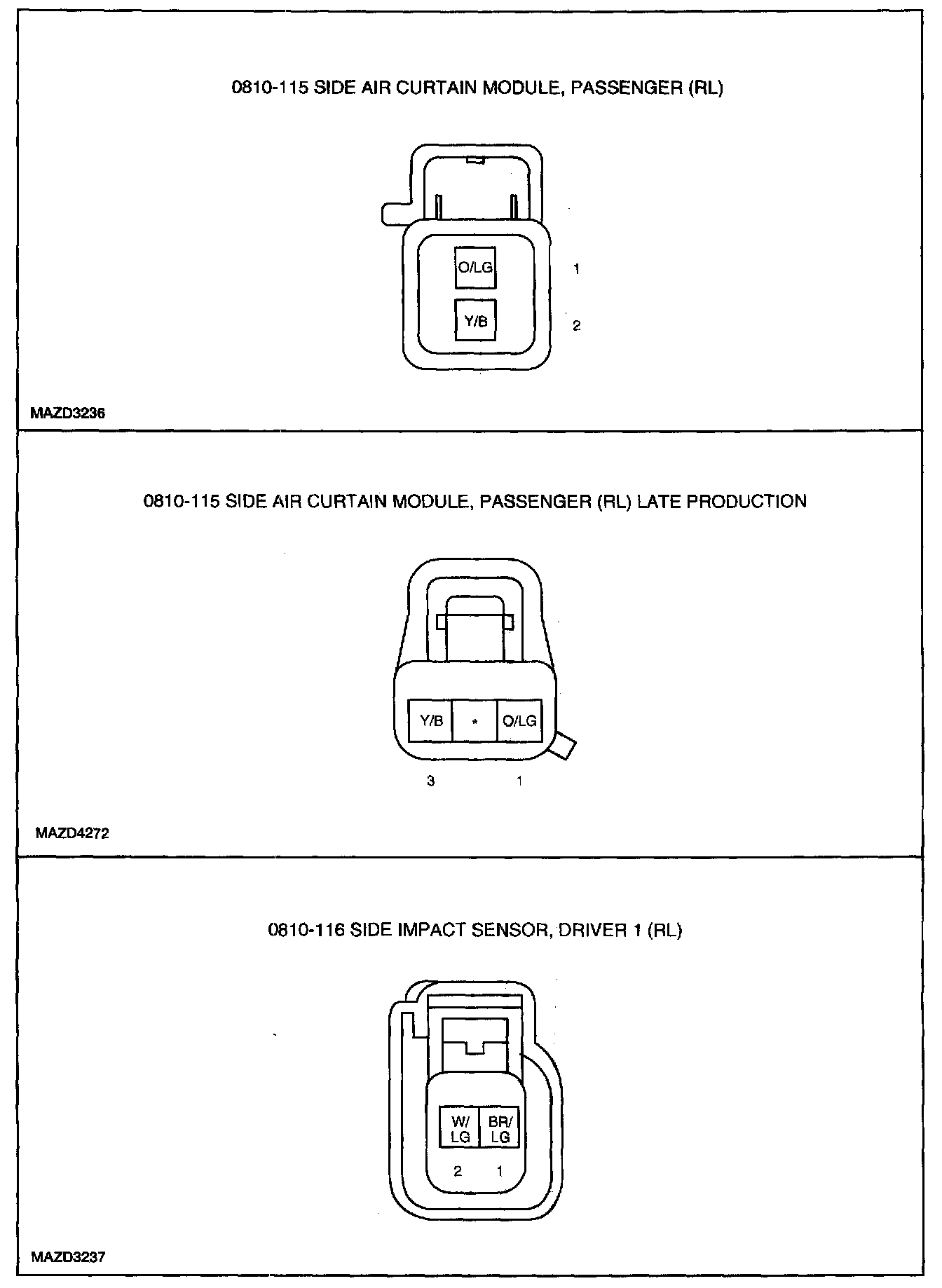

Connector End Views-Restraints:



Connector End Views-Restraints:
