System Schematic

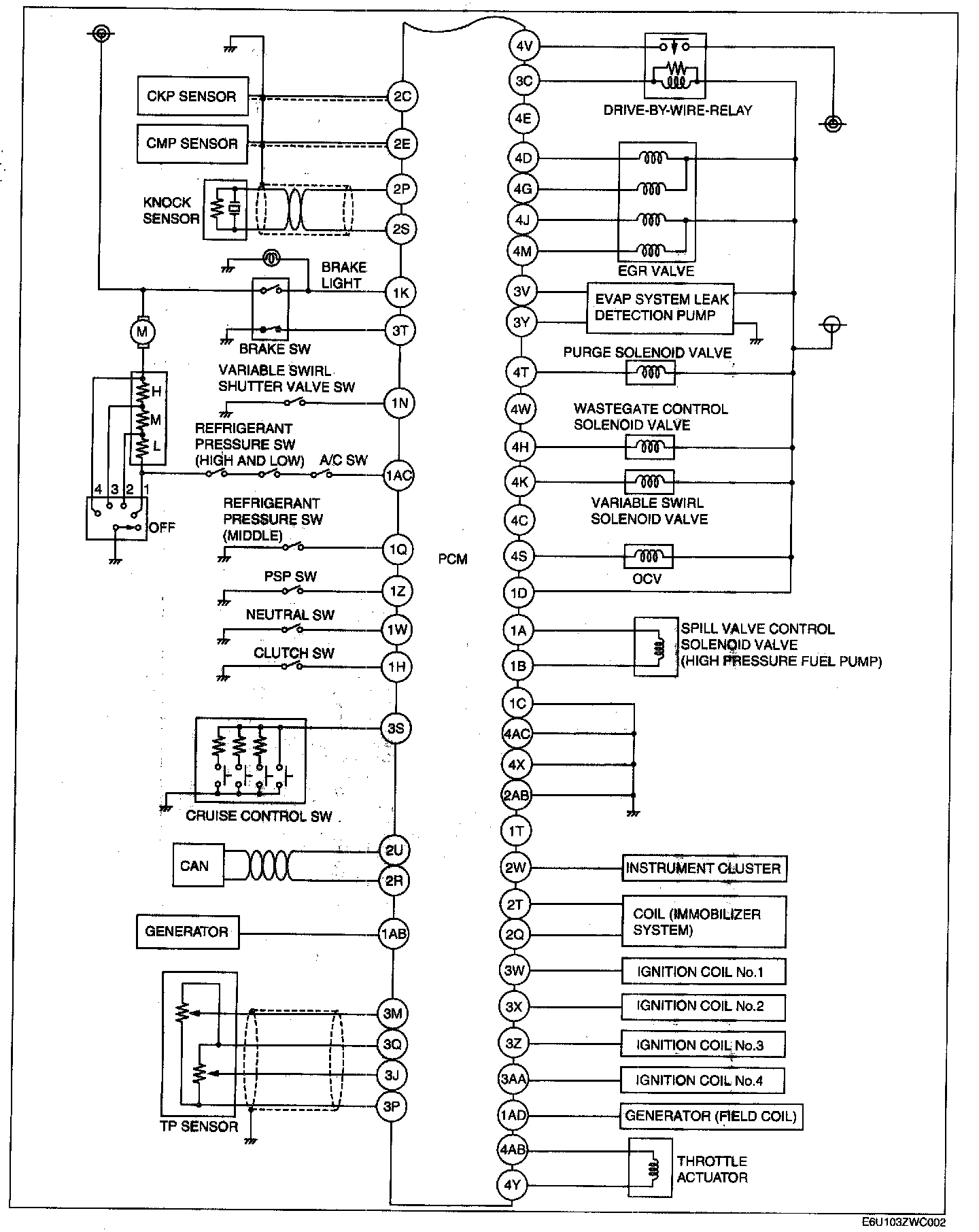

On-Board Diagnostic Wiring Diagram[L3 With TC] (Part 1):
On-Board Diagnostic Wiring Diagram[L3 With TC] (Part 2):
