Home >> Mazda >> 2006 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Cabin Temperature Sensor / Switch >> Locations

Cabin Temperature Sensor / Switch: Locations

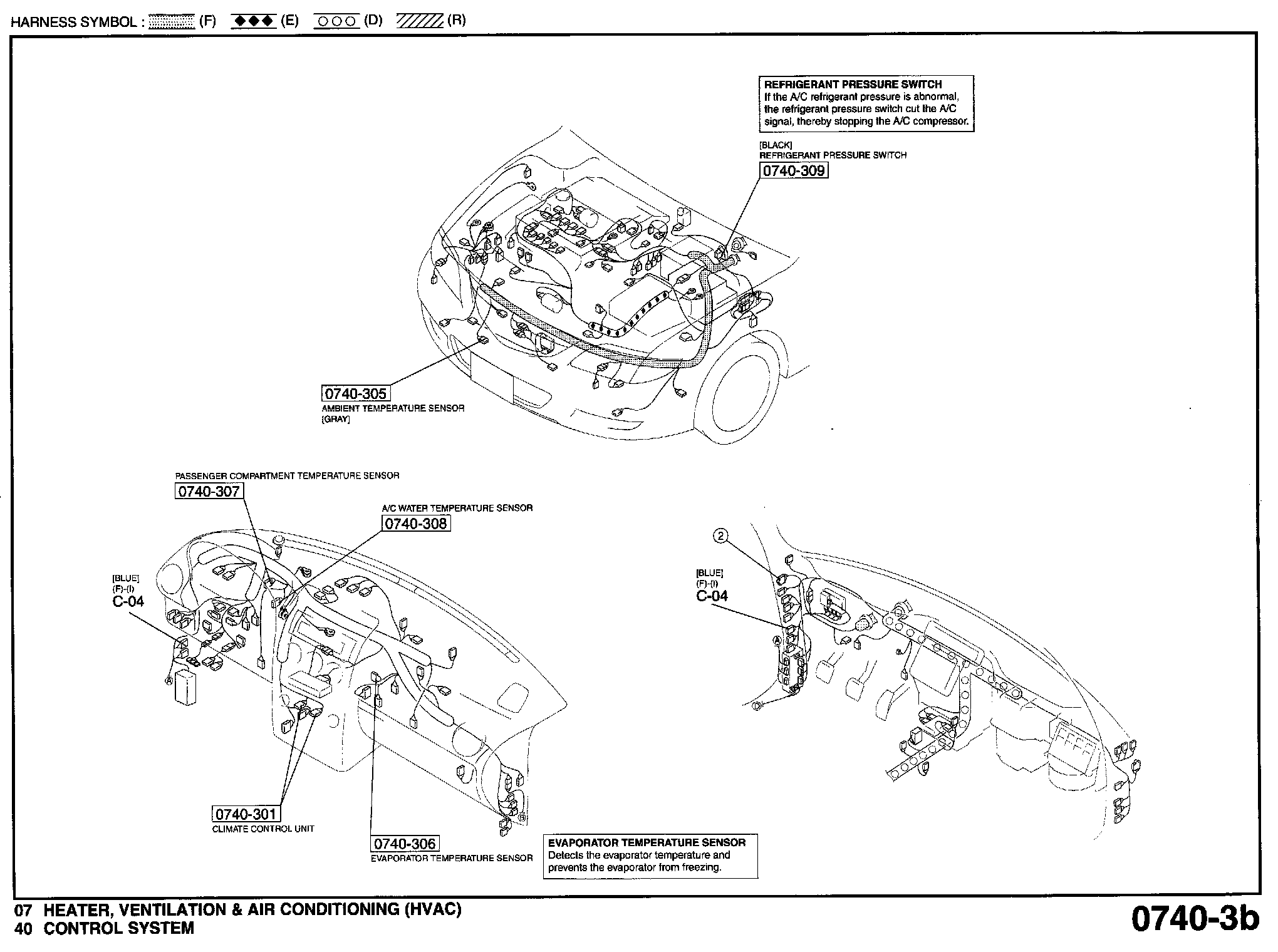

Routing View 0740-3b:
