Home >> Mazda >> 2006 >> MX-5 Miata L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> PID/Data Monitor and Record Function Table

PID/Data Monitor and Record Function Table

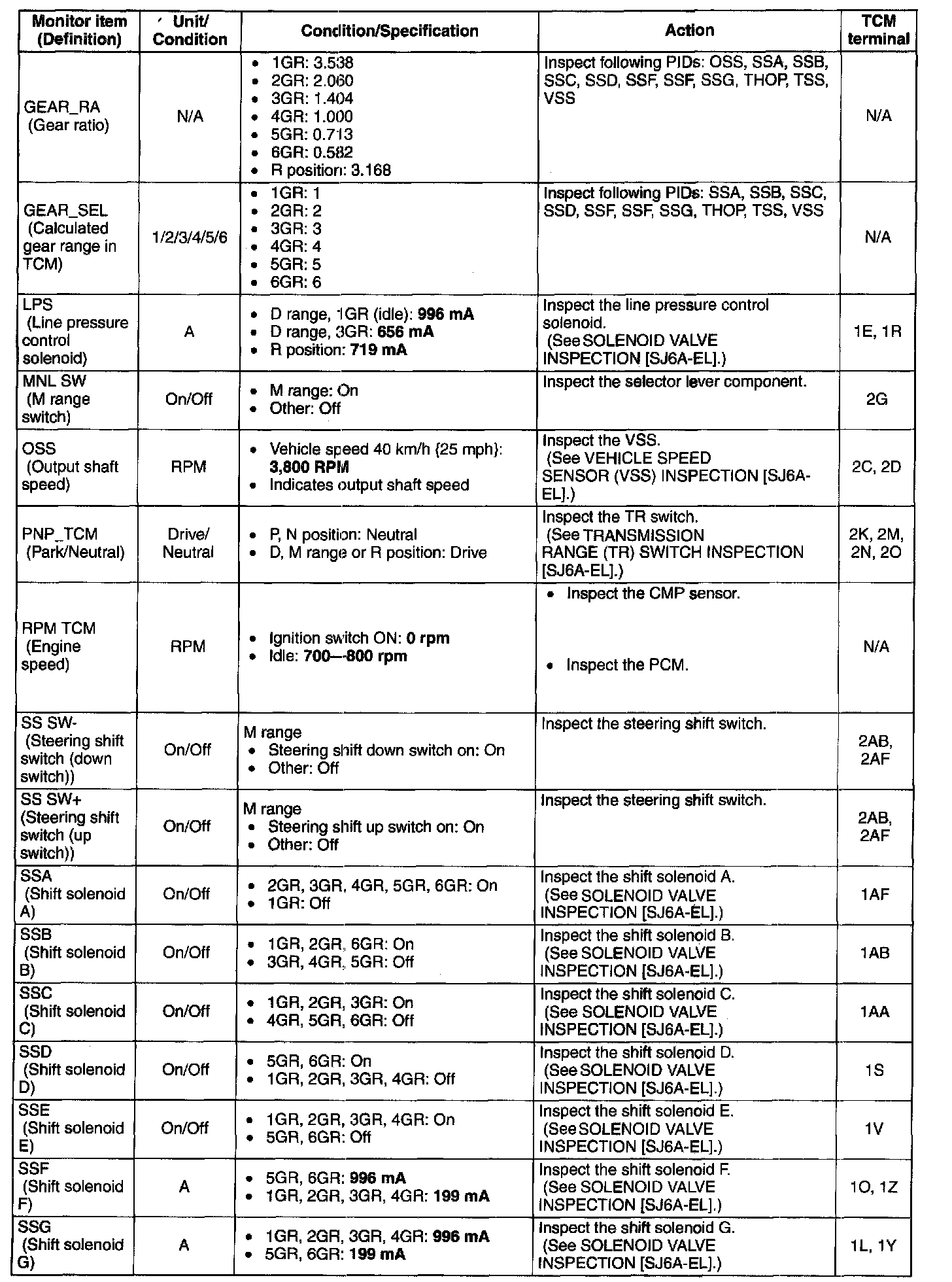

PID/DATA MONITOR AND RECORD function table (part 1):

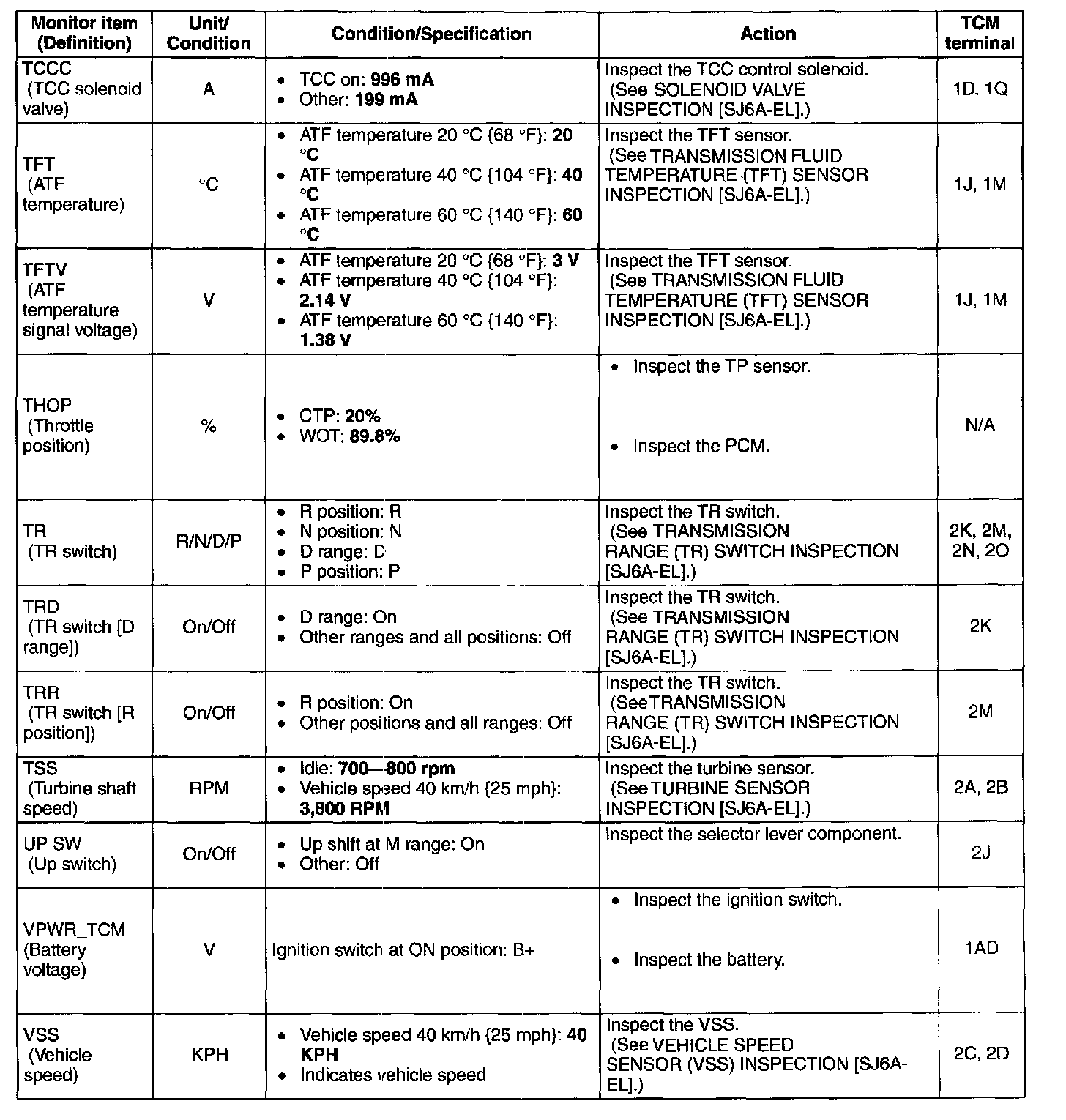

PID/DATA MONITOR AND RECORD function table (part 2):

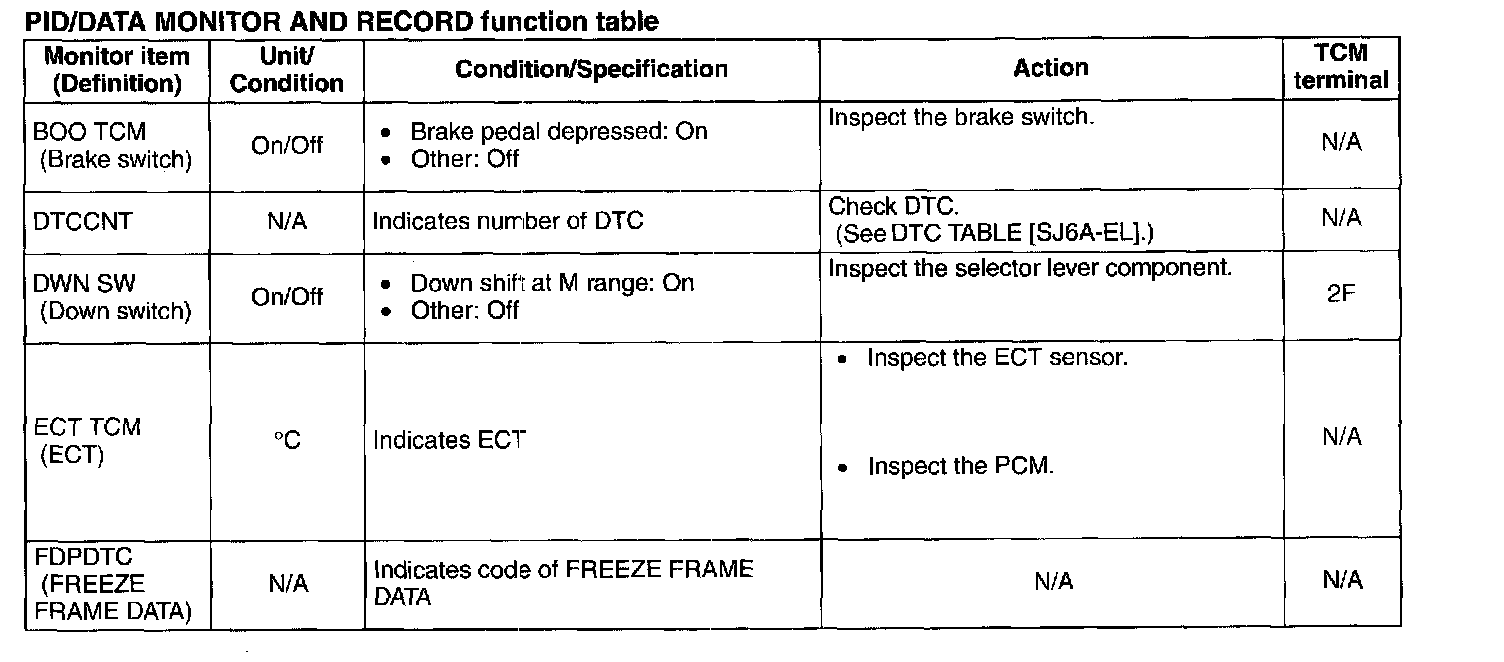

PID/DATA MONITOR AND RECORD function table (part 3):
