Disassembly/Assembly

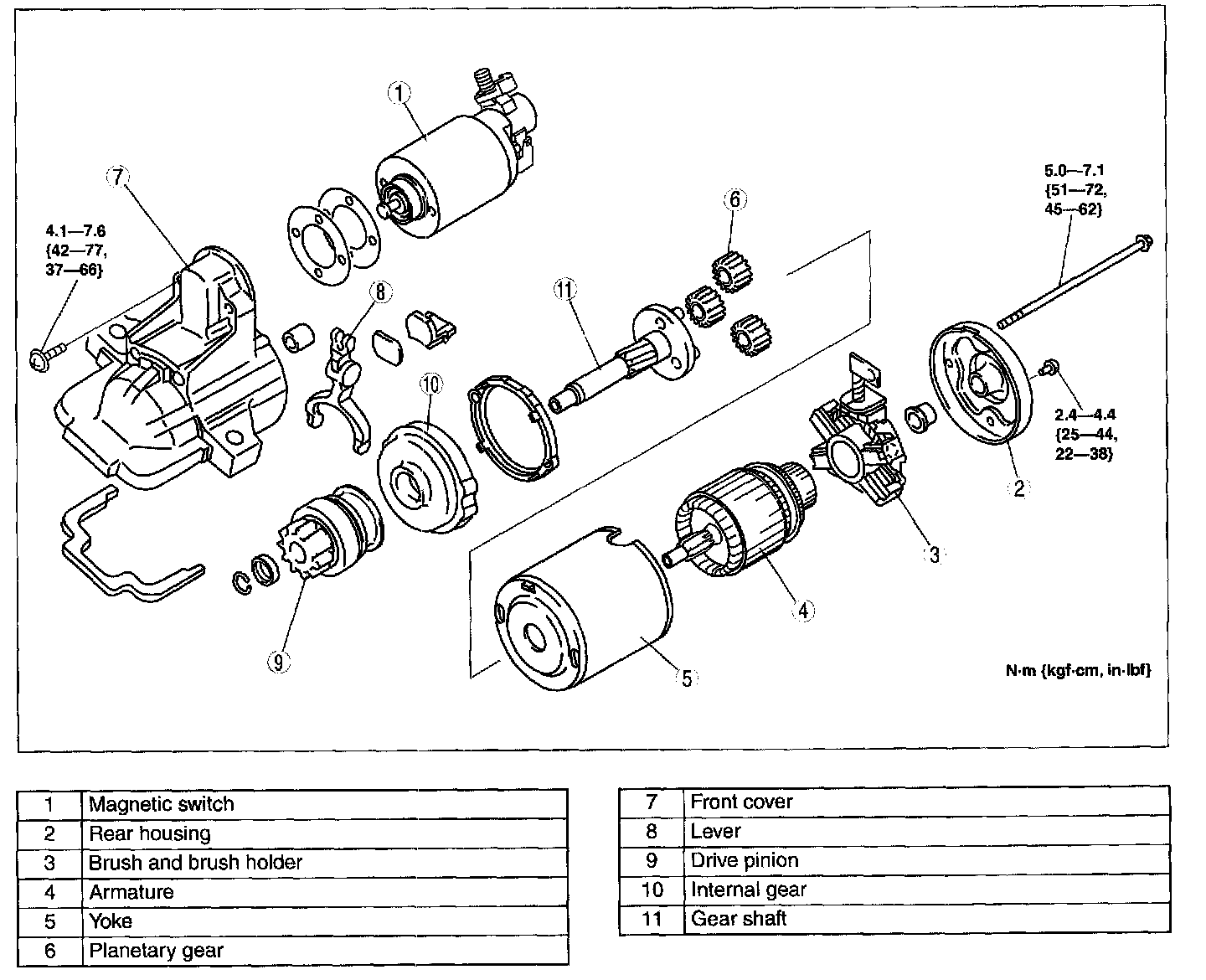

STARTER DISASSEMBLY/ASSEMBLY [LF]




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
