Home >> Mazda >> 2006 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

Voltage Signal: Testing and Inspection

Description / Possible Cause:



Step 1-Step 8:

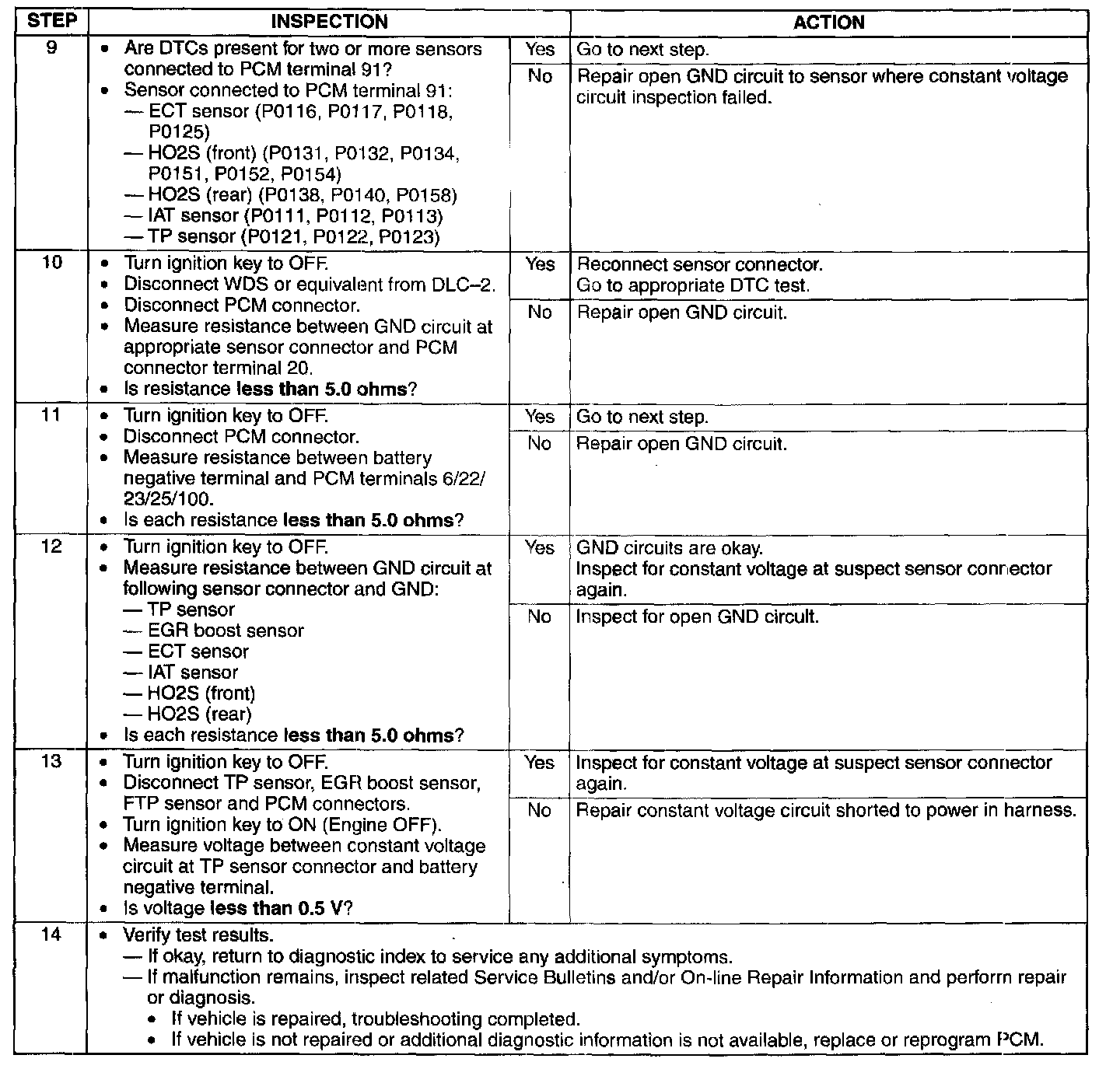

Step 9-Step 14:
