Engine speed signal (output)

PCM terminal: 21 (+)-100 (-)
Oscilloscope setting: 2V/DIV (Y), 5ms/DIV (X), DC range
Vehicle condition: idle after warm up

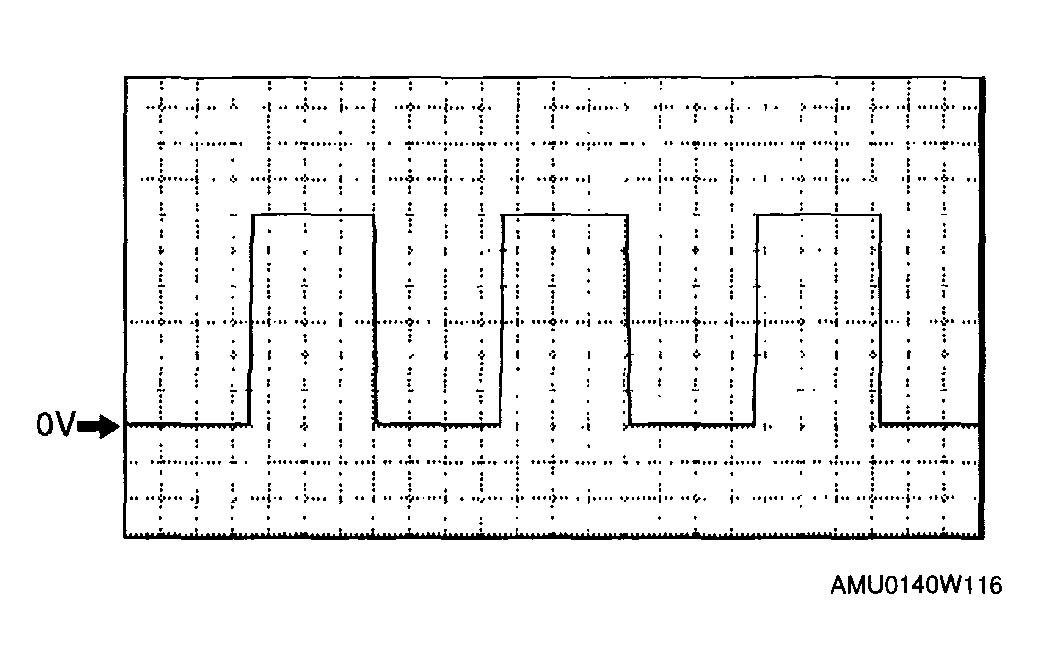

Fig 1: Identifying Engine Speed Signal Waveform

G04328311

Courtesy of MAZDA MOTORS CORP.
