Mazda
>>
2006
>>
B4000 V6-4.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Locations
>>
Connector Locations
Connector Locations

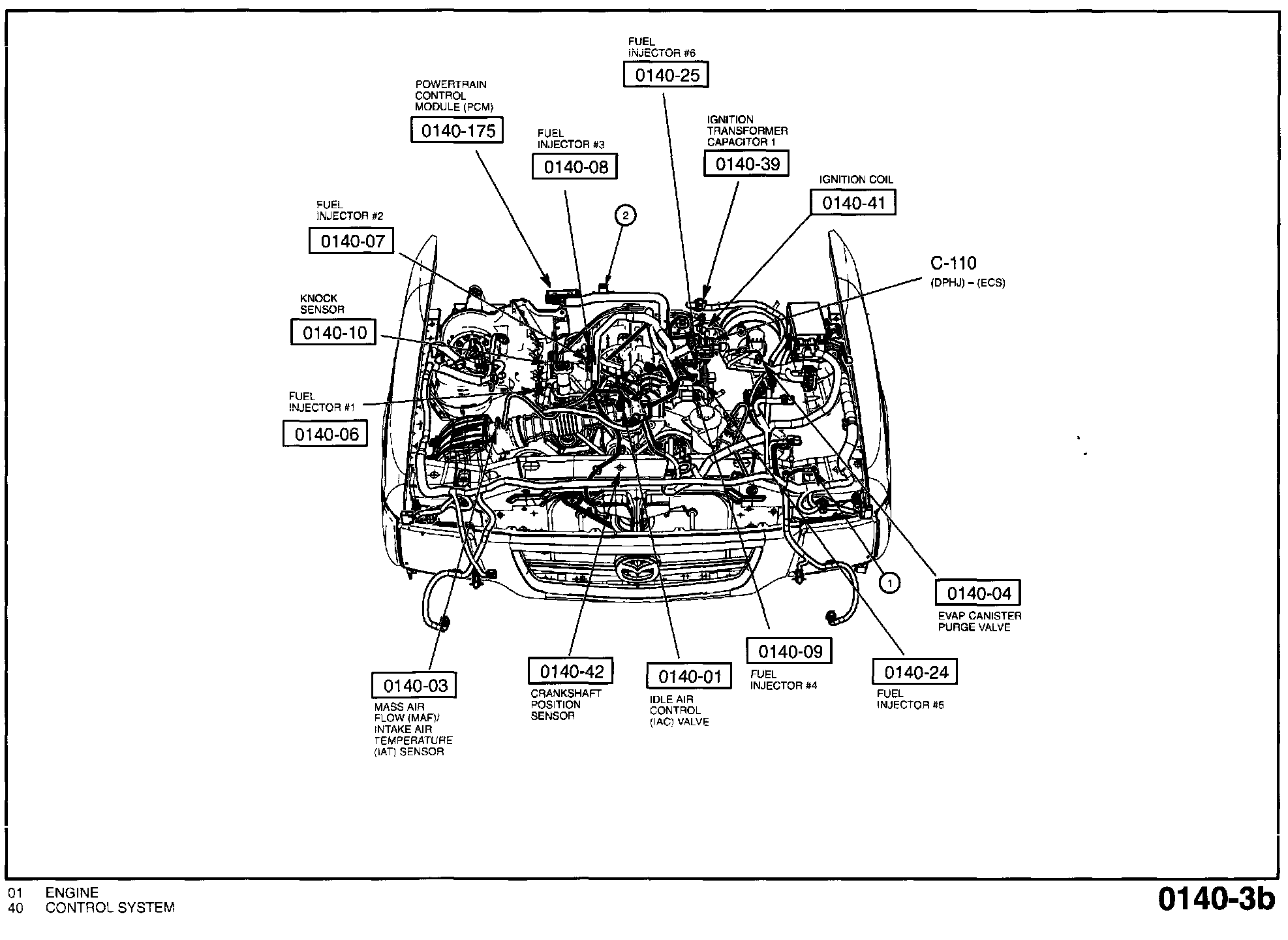

Routing View 0140-3b:
