ABS Control Module Connector End View (C135)

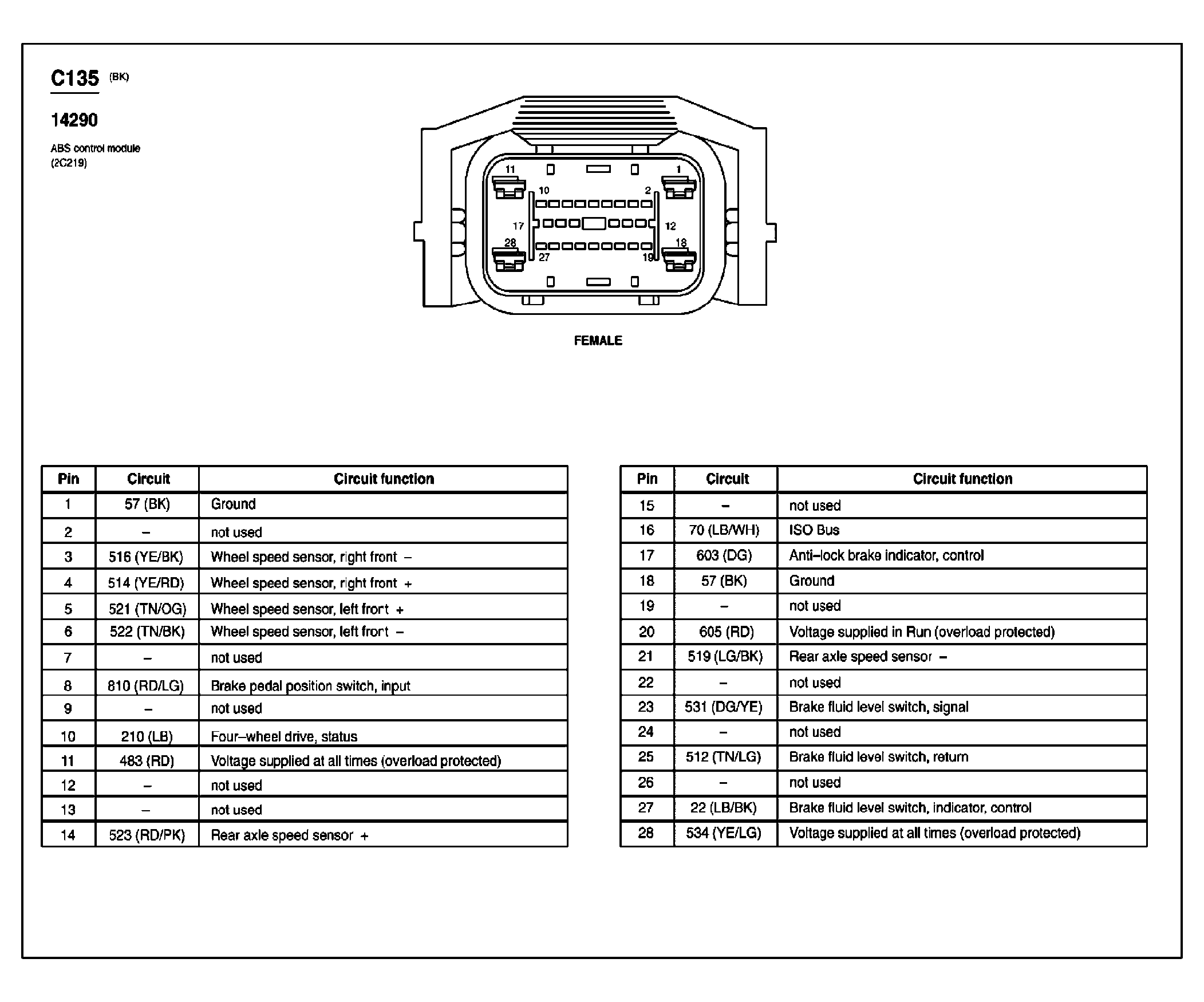

Fig 1: ABS Control Module Connector End View (C135)

G04598801

Courtesy of FORD MOTOR CO.
