Connector End Views

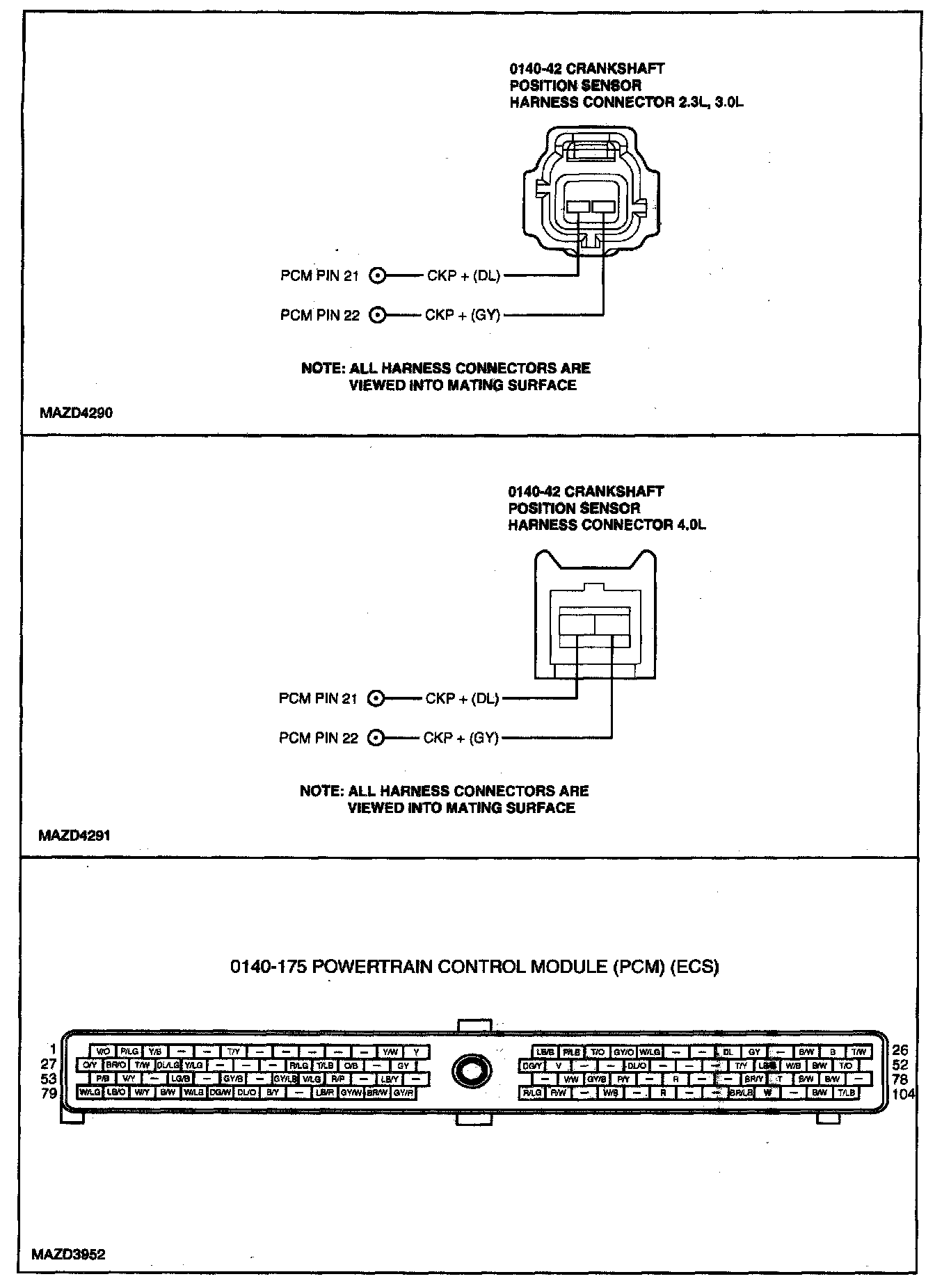

Connector Endviews - General Tests (Part 1):

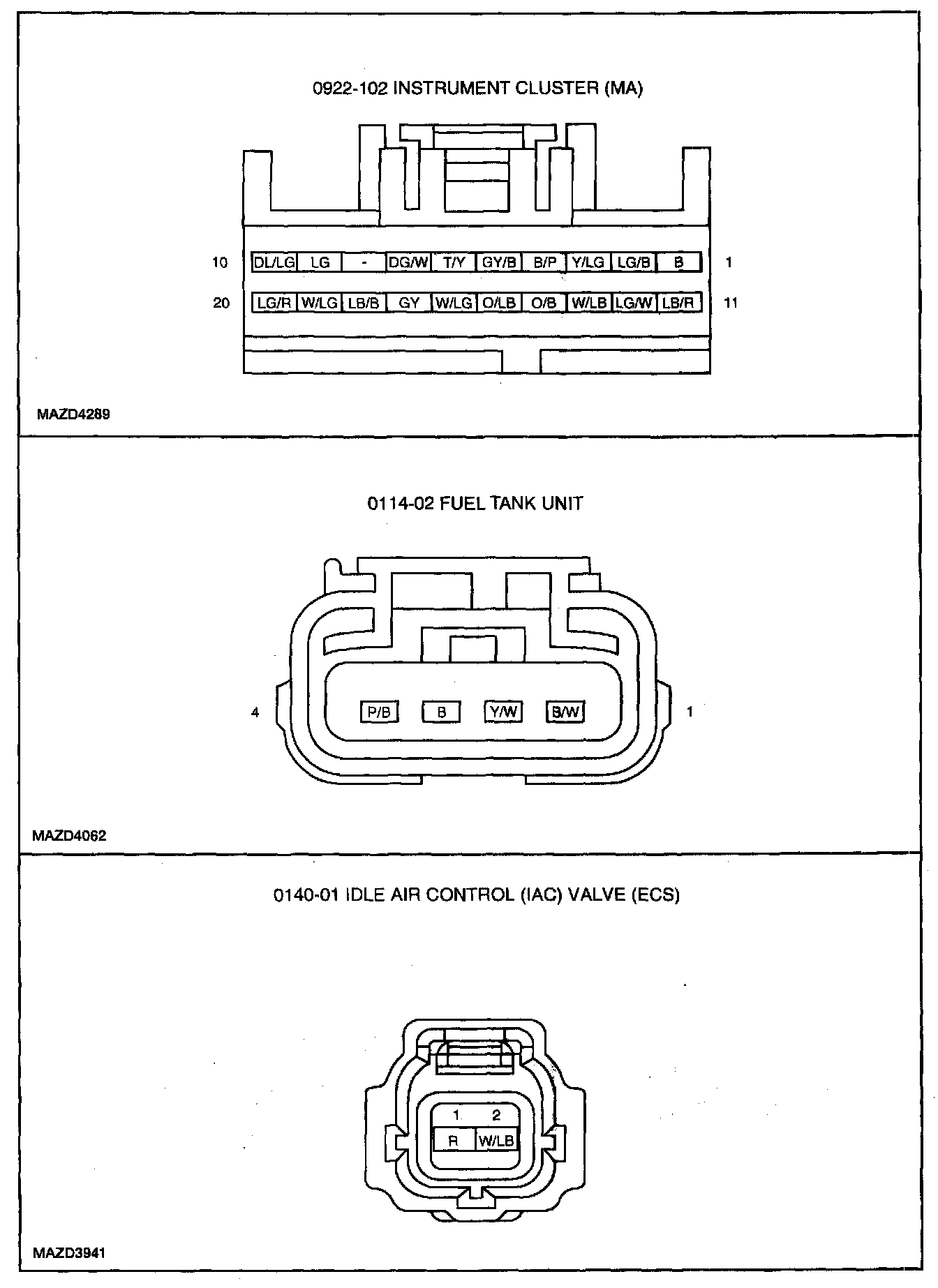

Connector Endviews - General Tests (Part 2):

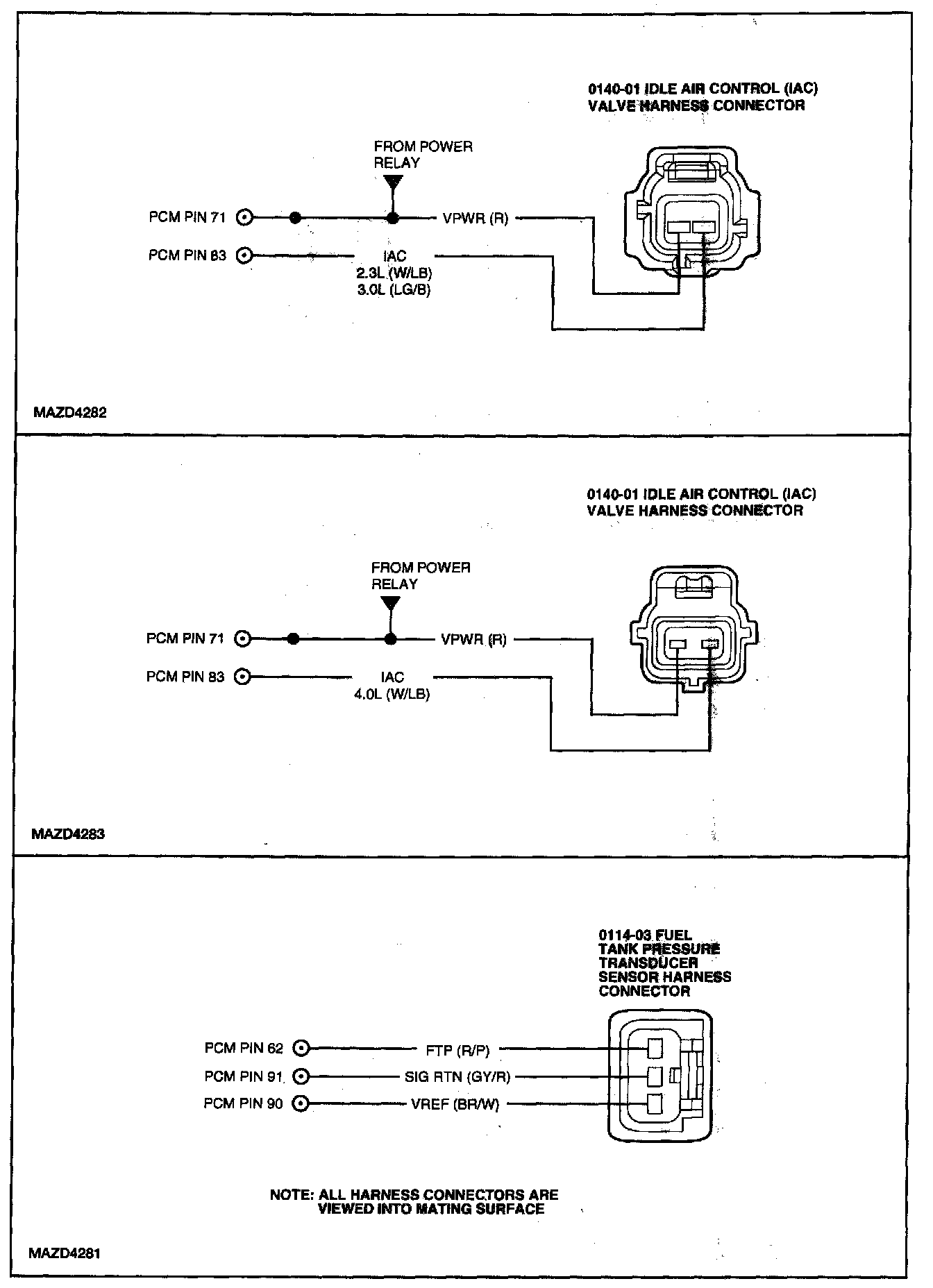

Connector Endviews - General Tests (Part 3):

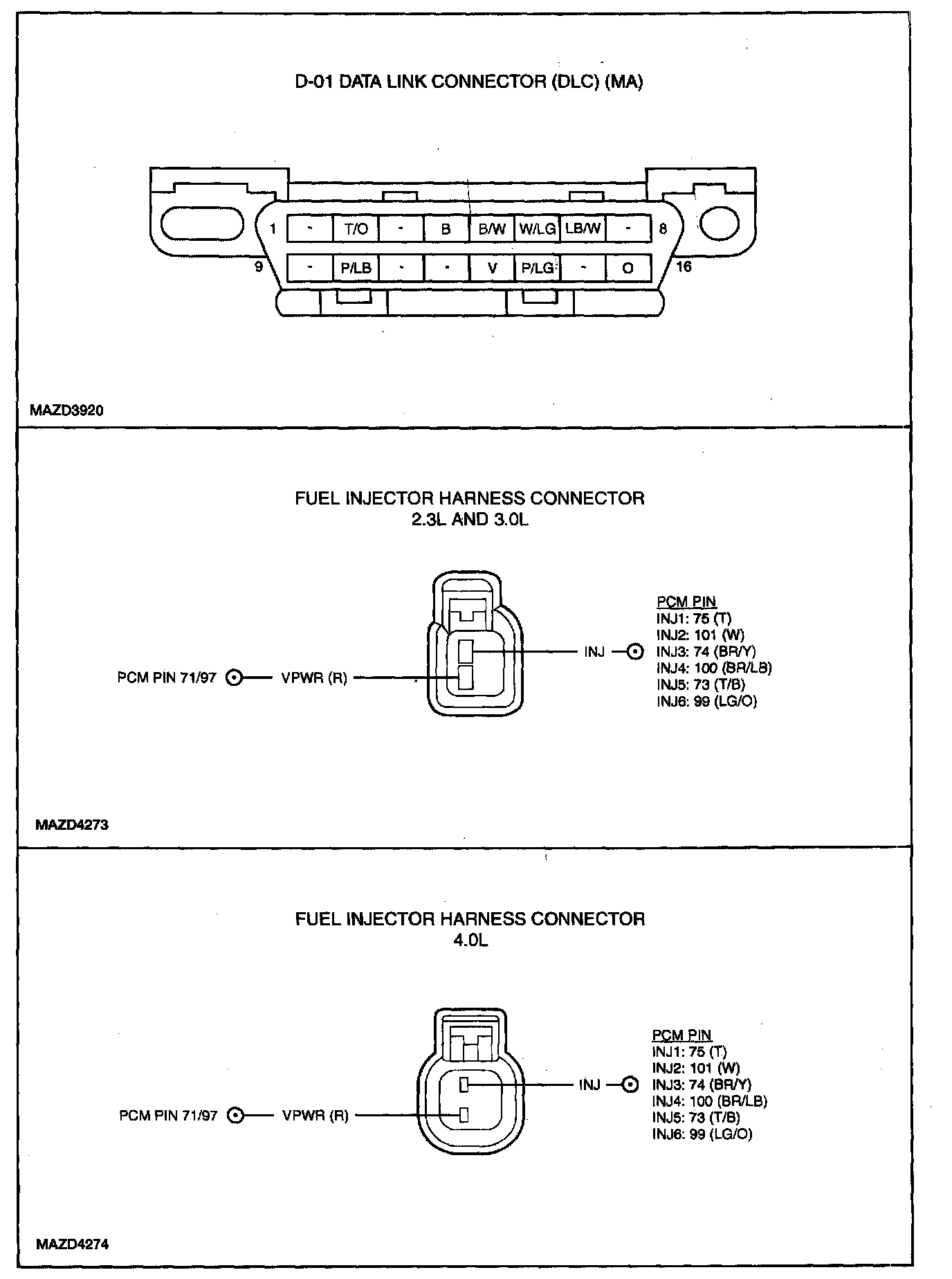

Connector Endviews - General Tests (Part 4):

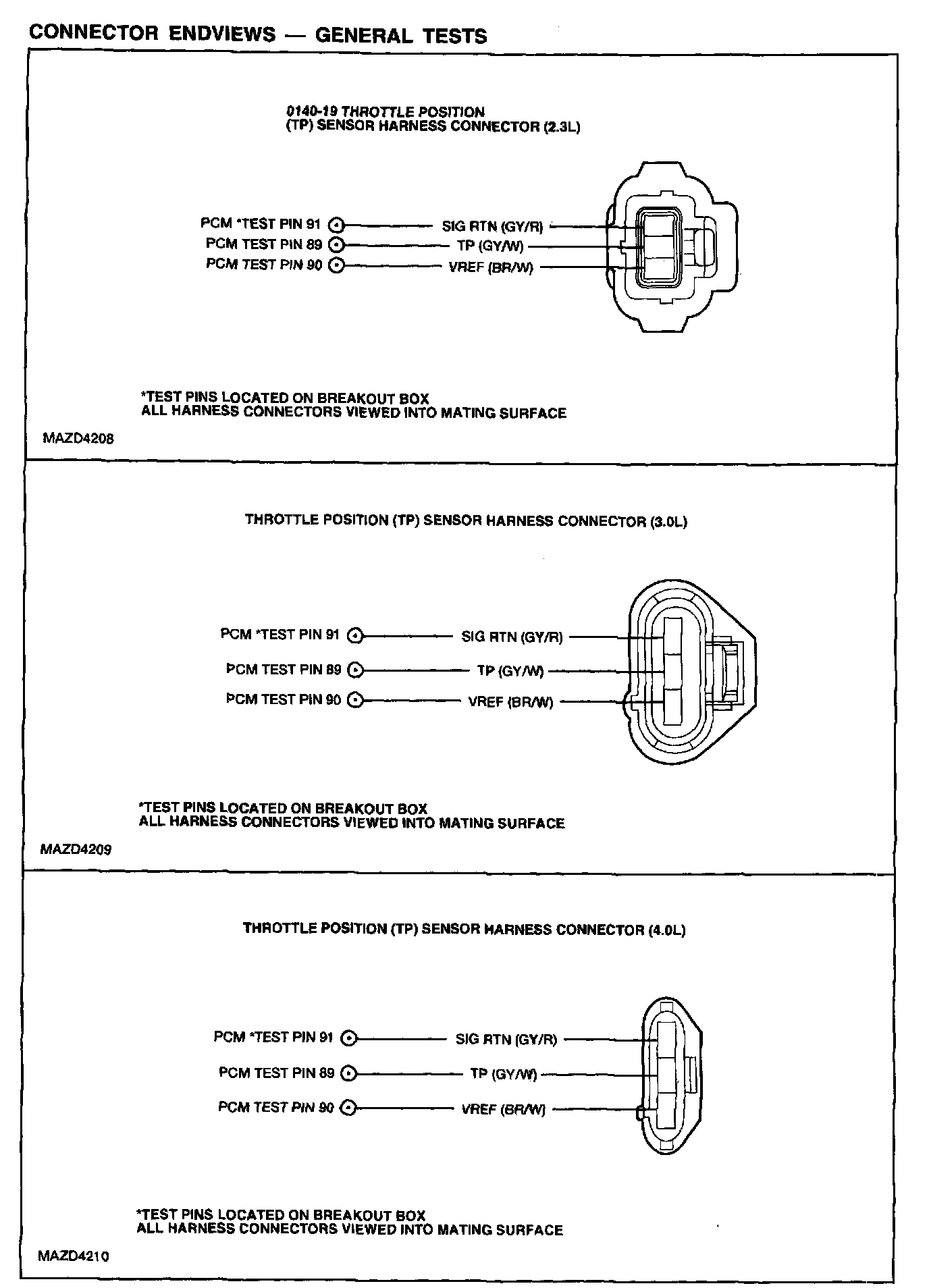

Connector Endviews - General Tests (Part 4):
