Home >> Mazda >> 2006 >> 6 L4-2.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> PID/Data Monitor Table

PID/Data Monitor Table

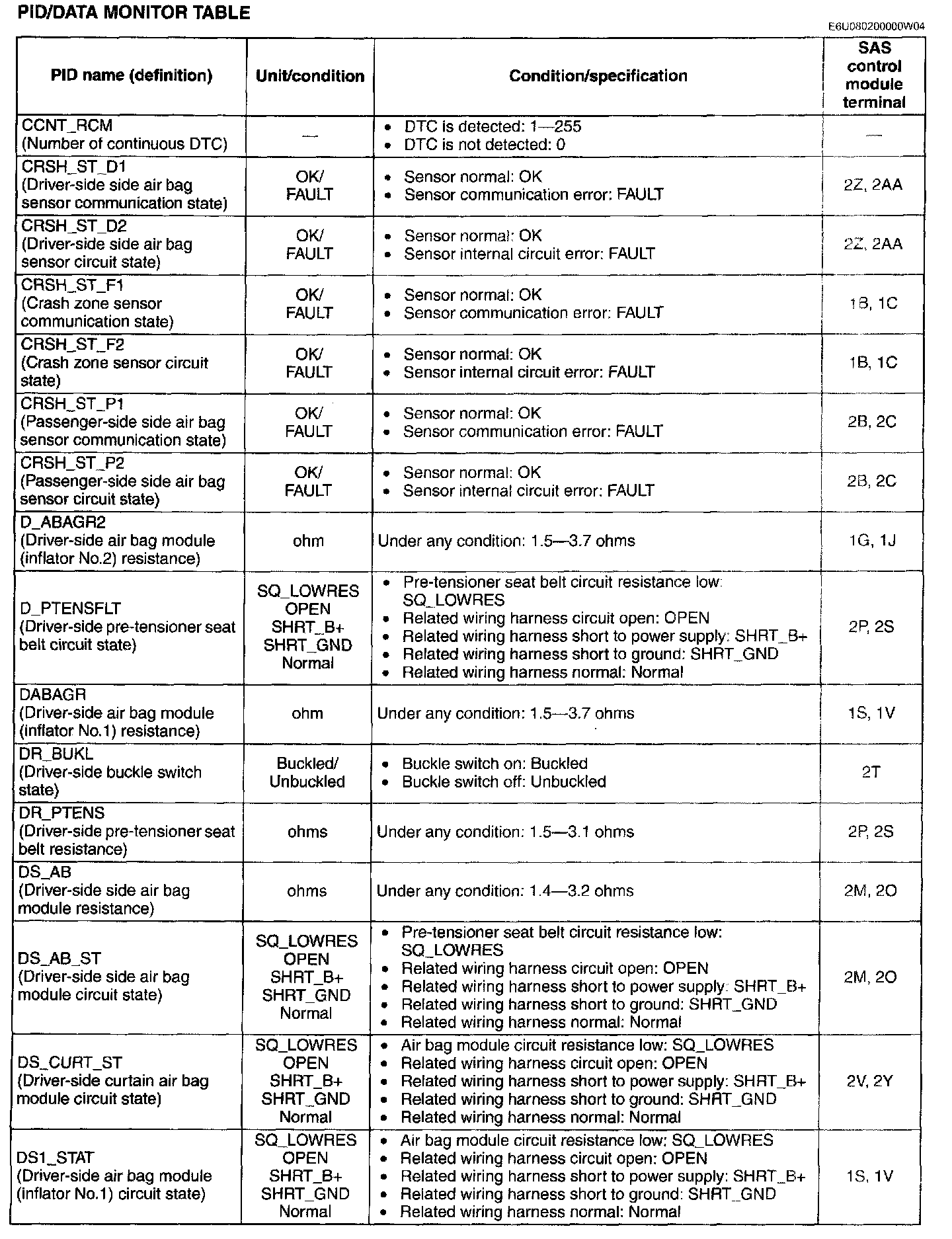

PID/Data Monitor Table (Part 1):

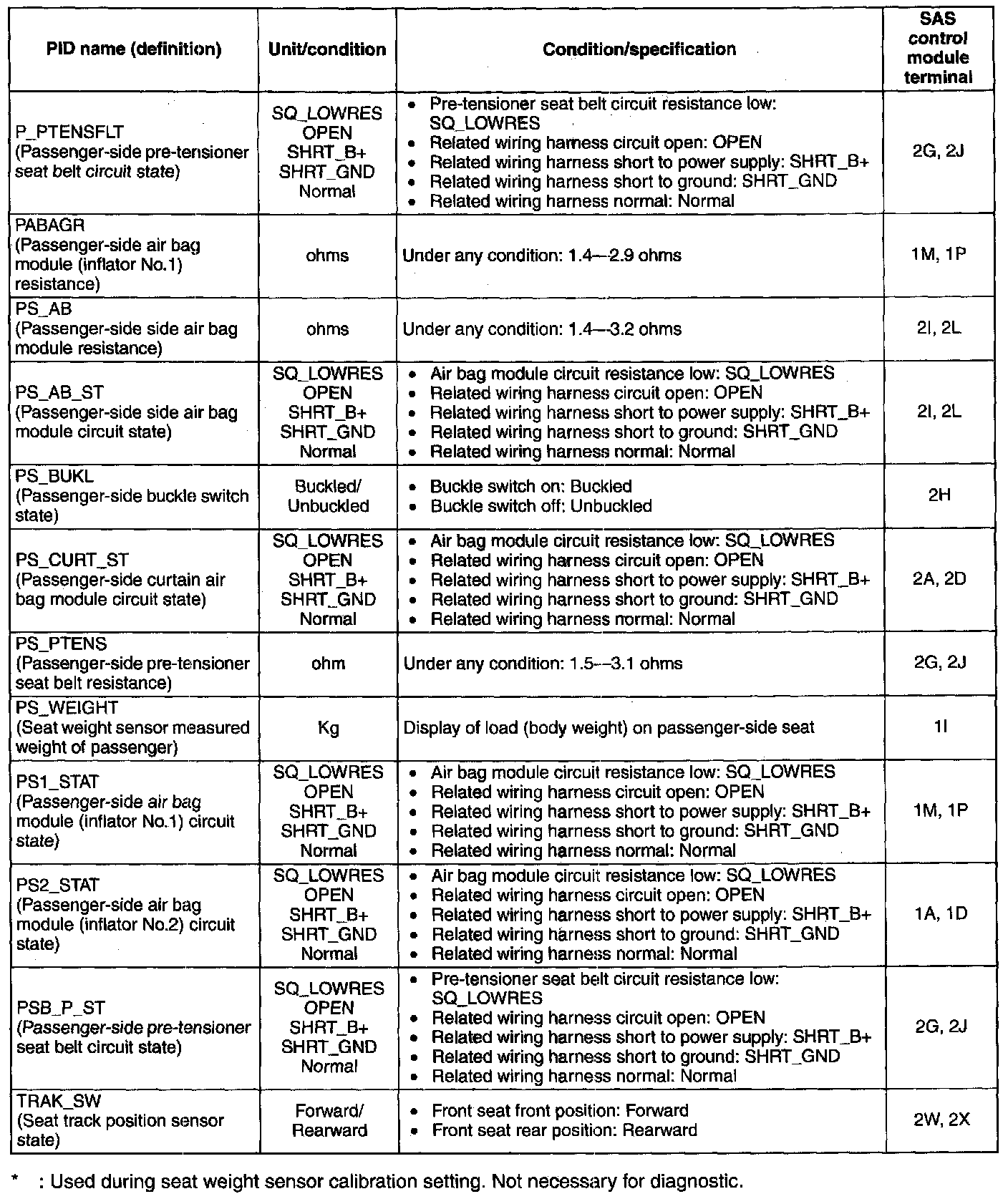

PID/Data Monitor Table (Part 2):

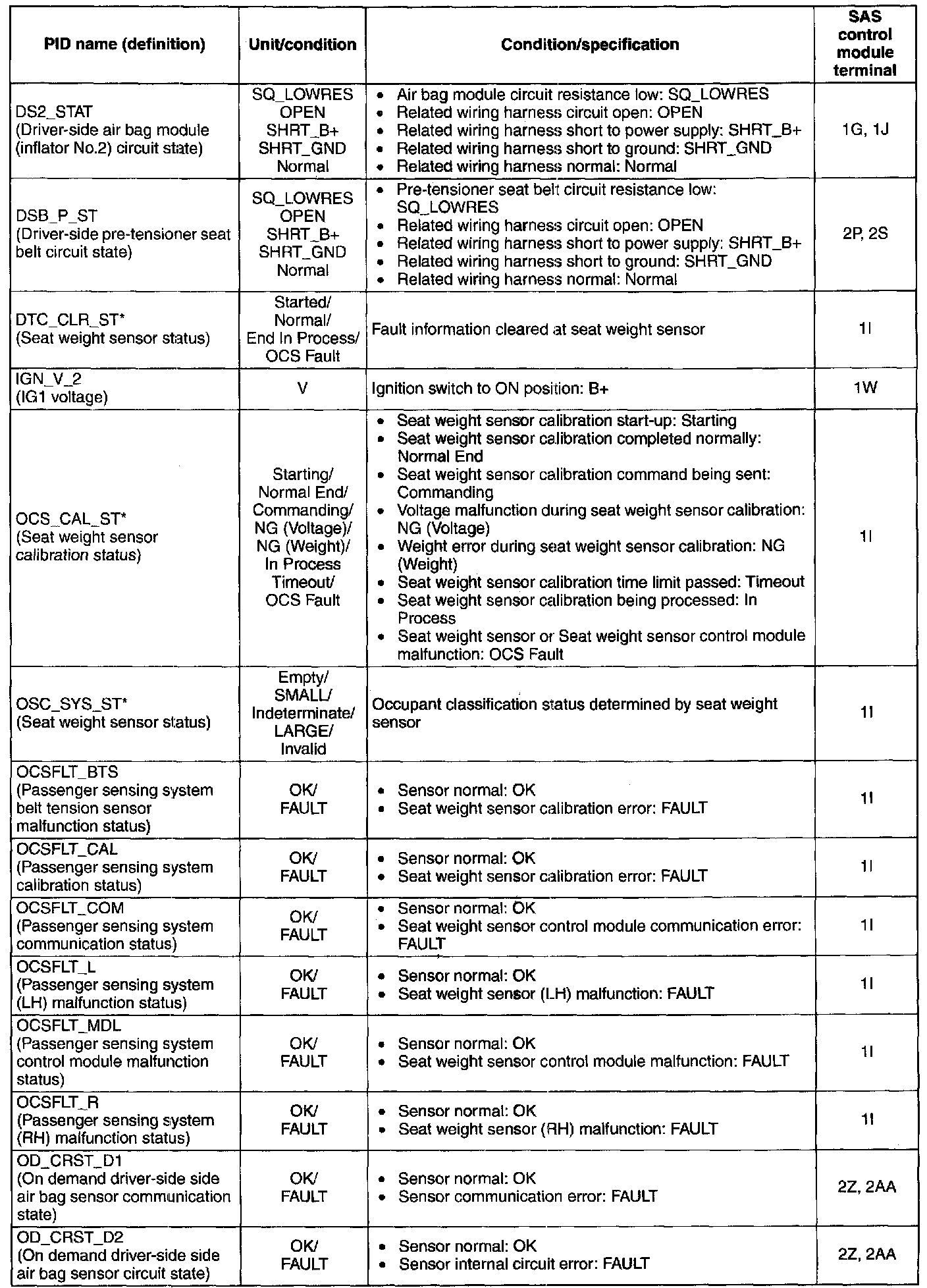

PID/Data Monitor Table (Part 3):

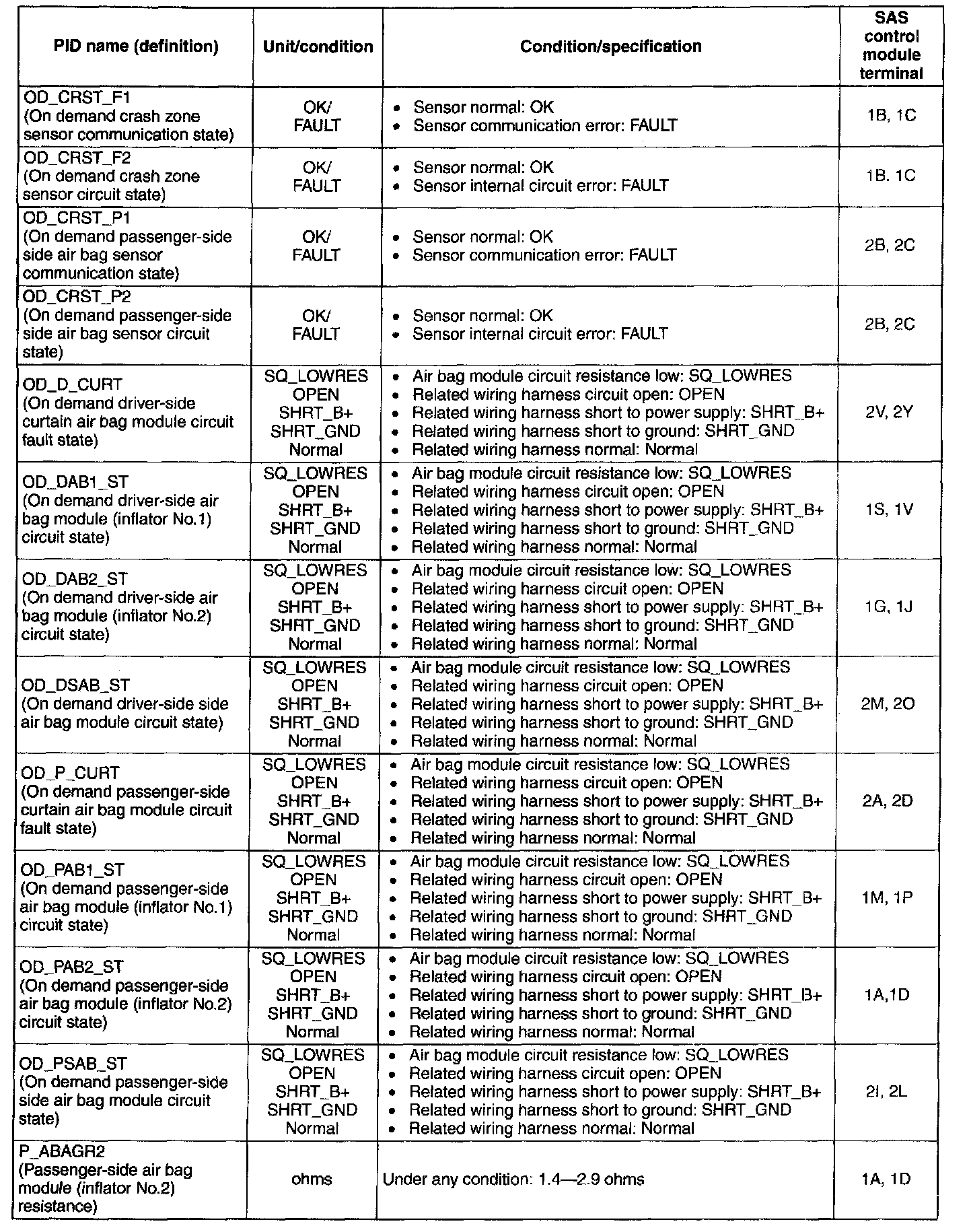

PID/Data Monitor Table (Part 4):
