Home >> Mazda >> 2006 >> 6 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

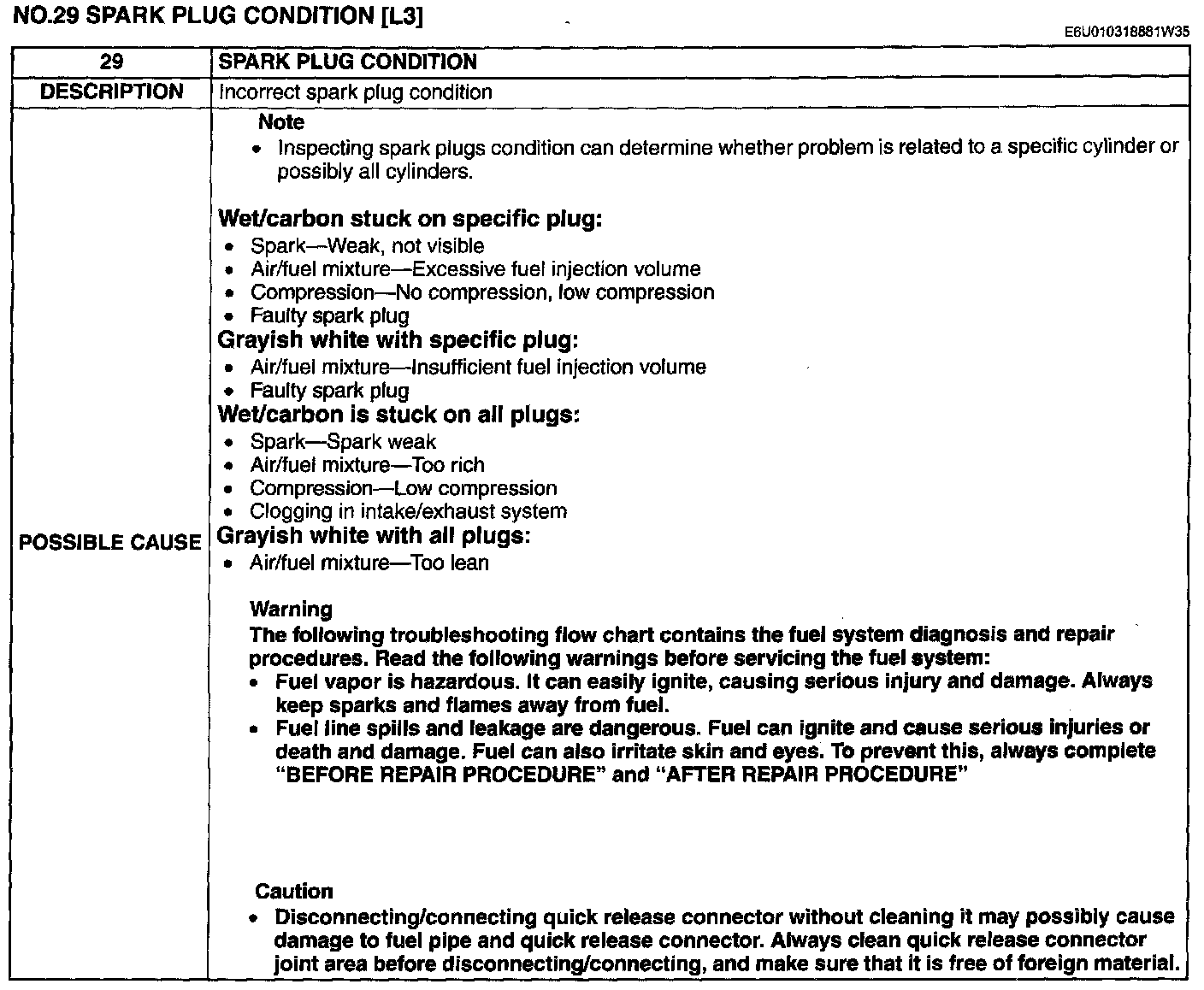

Description / Possible Cause:

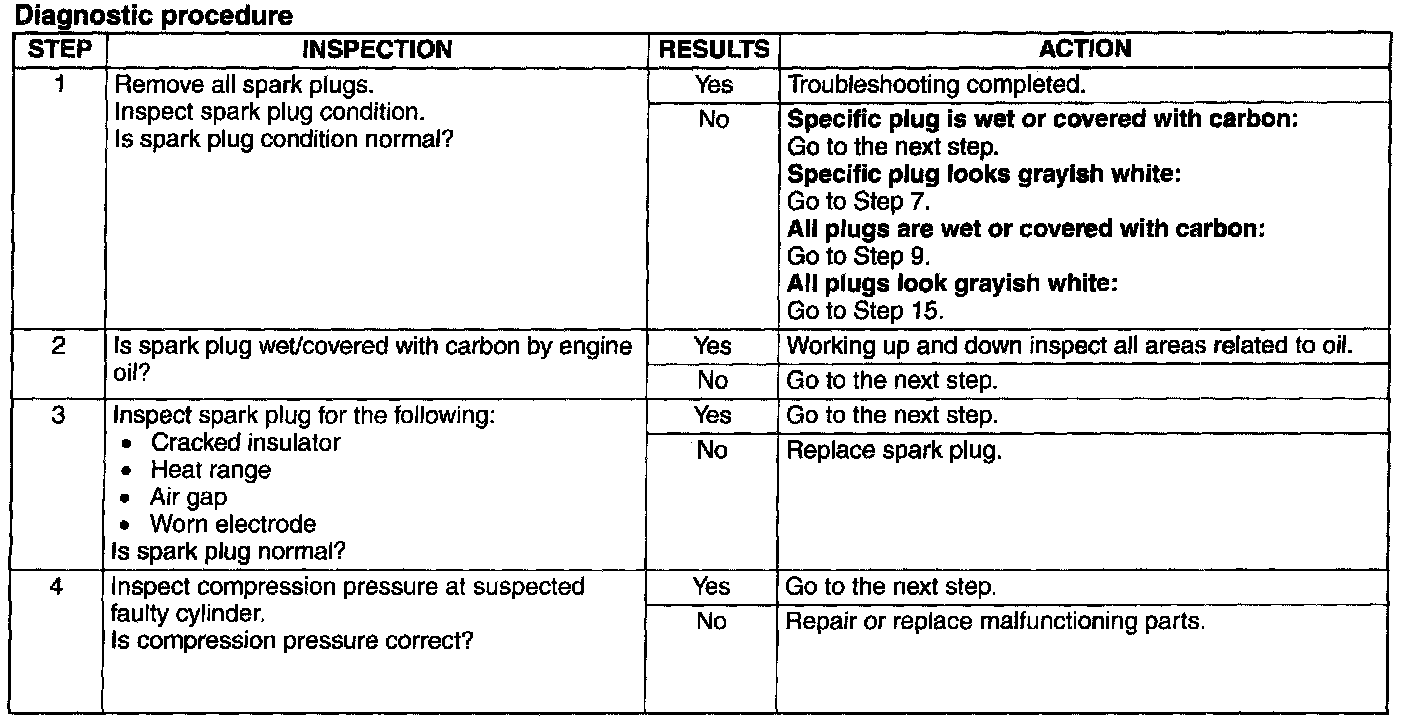

Step 1-Step 4:

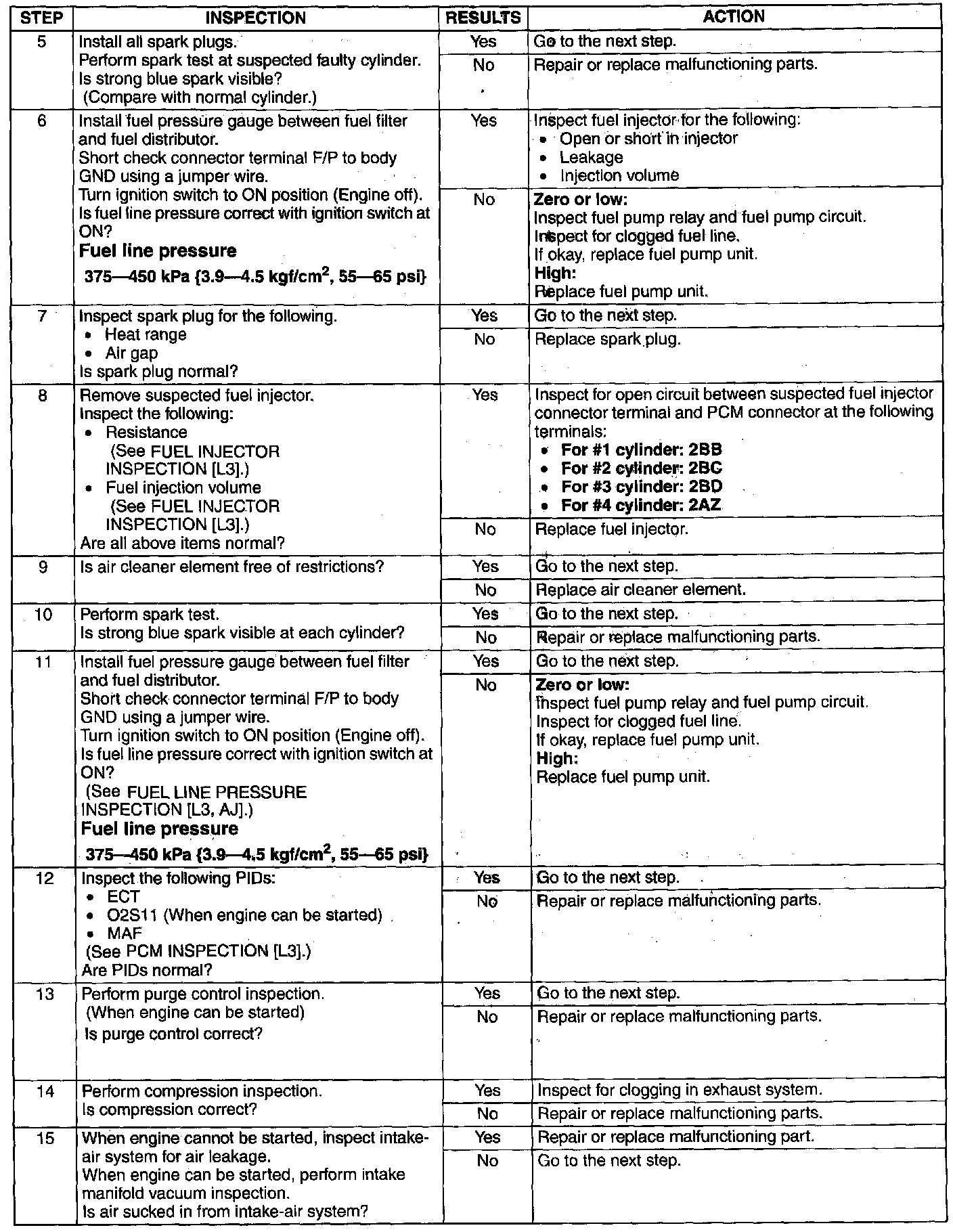

Step 5-Step 15:

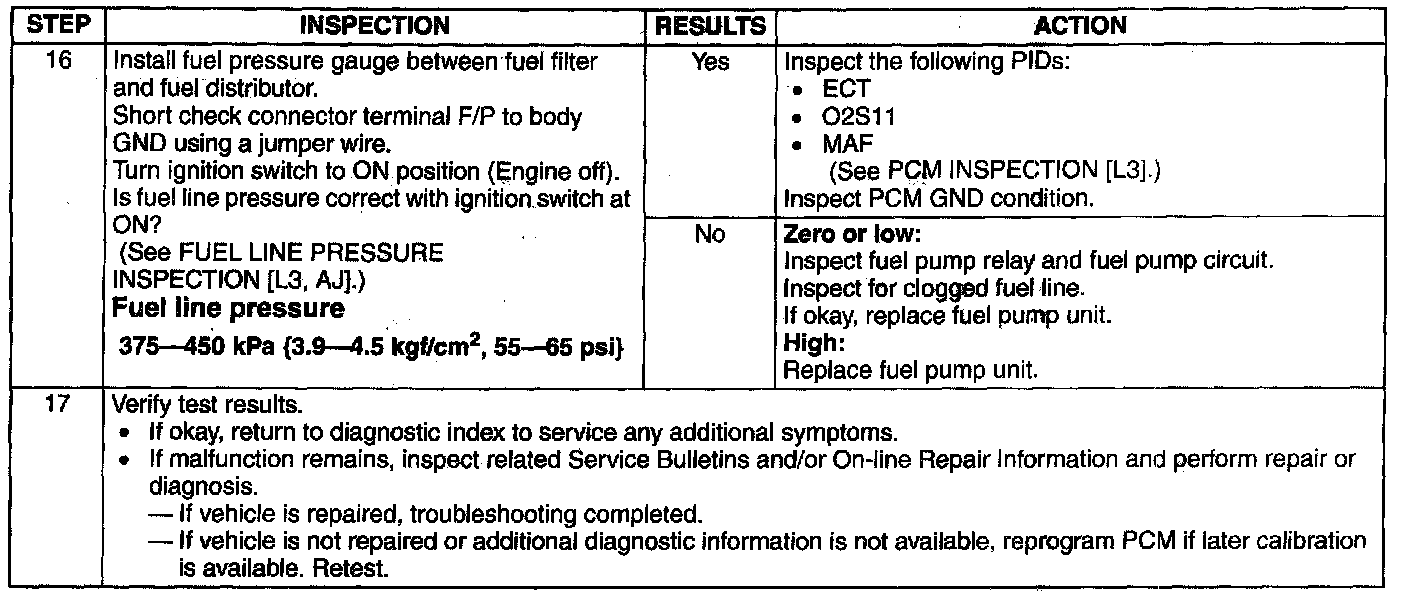

Step 16-Step 17:
