Home >> Mazda >> 2006 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C45 to C49

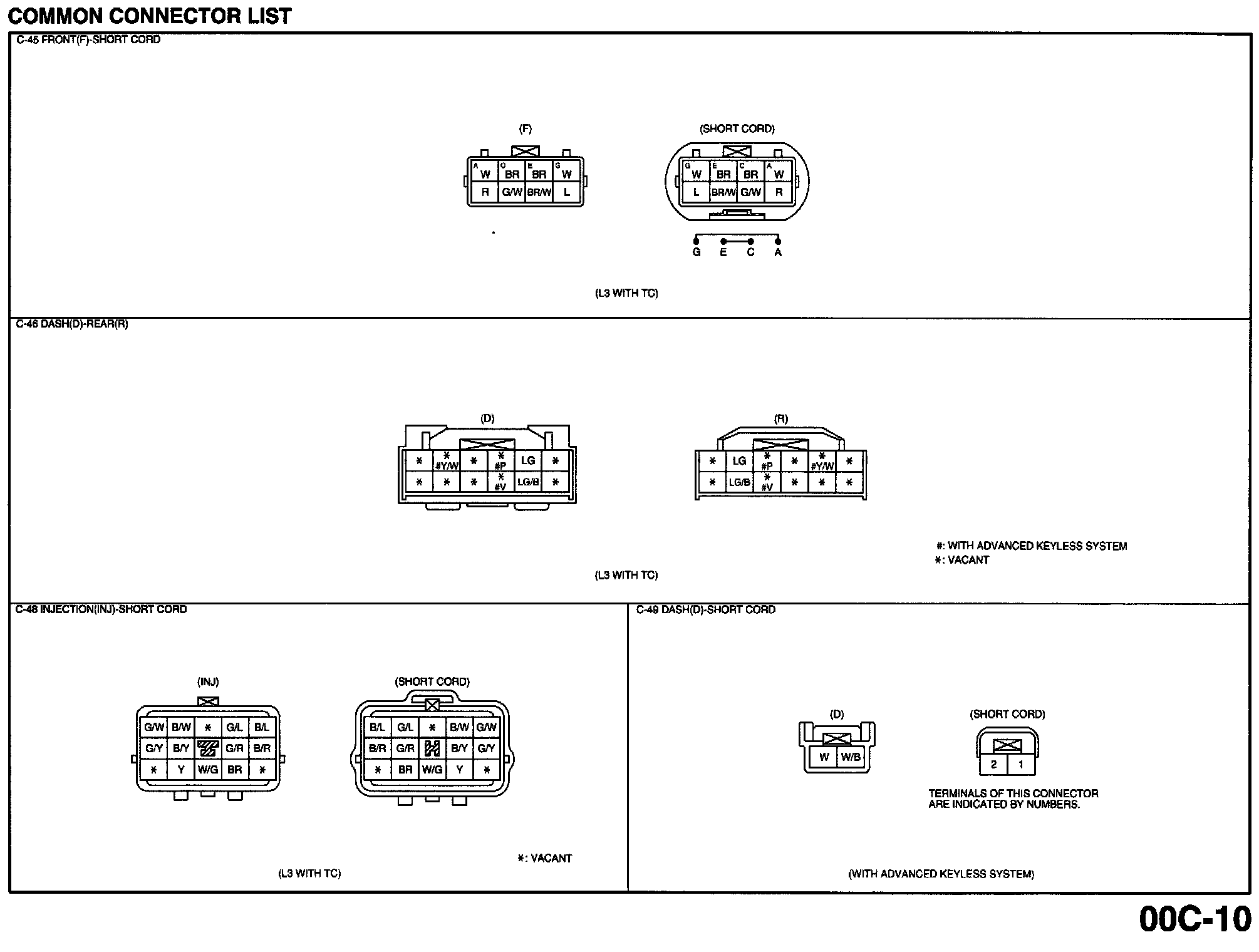

C45 to C49

C45 To C49:
