Home >> Mazda >> 2006 >> 5 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Schematic

System Schematic

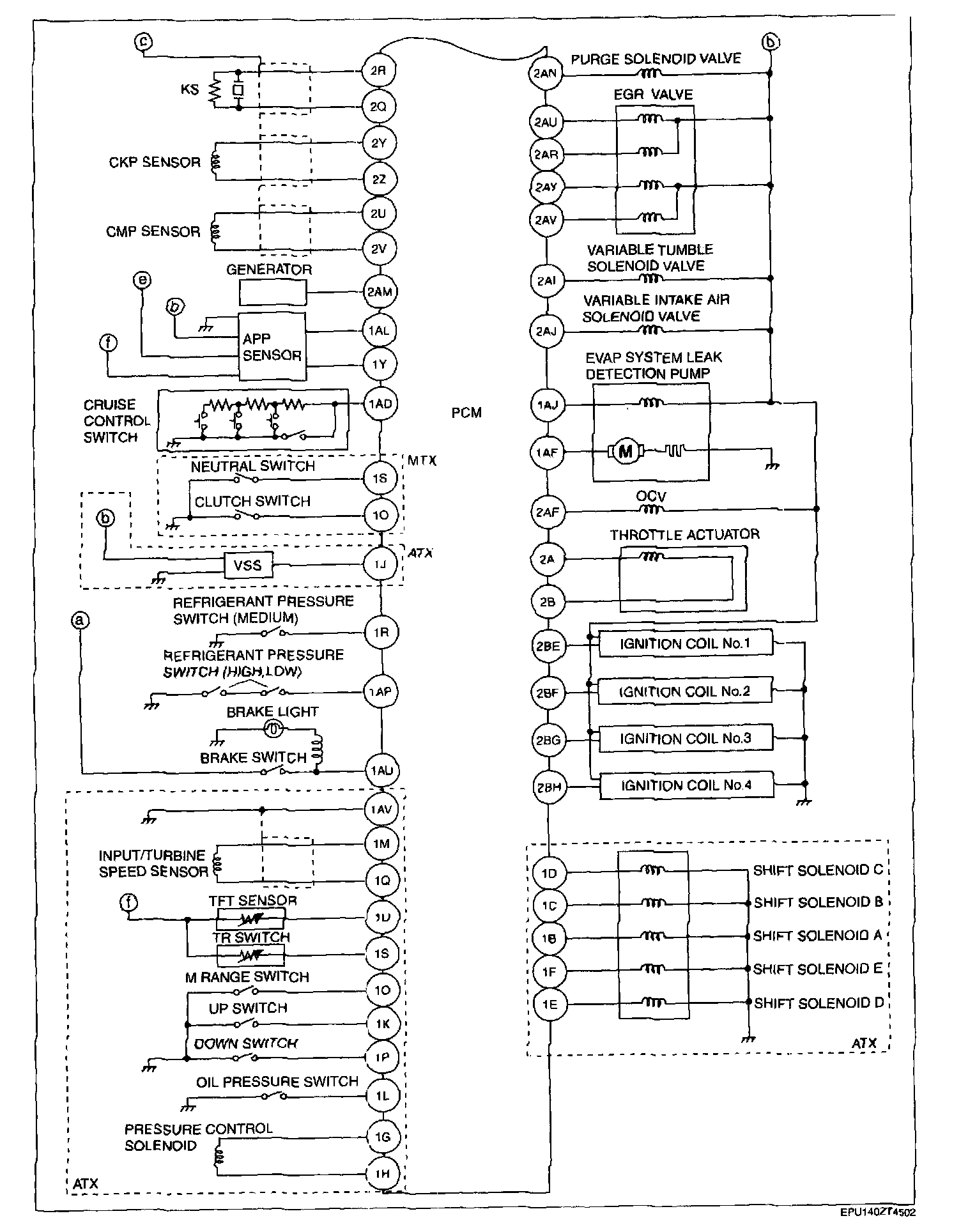

Control System Wiring Diagram [L3] (Part 1):

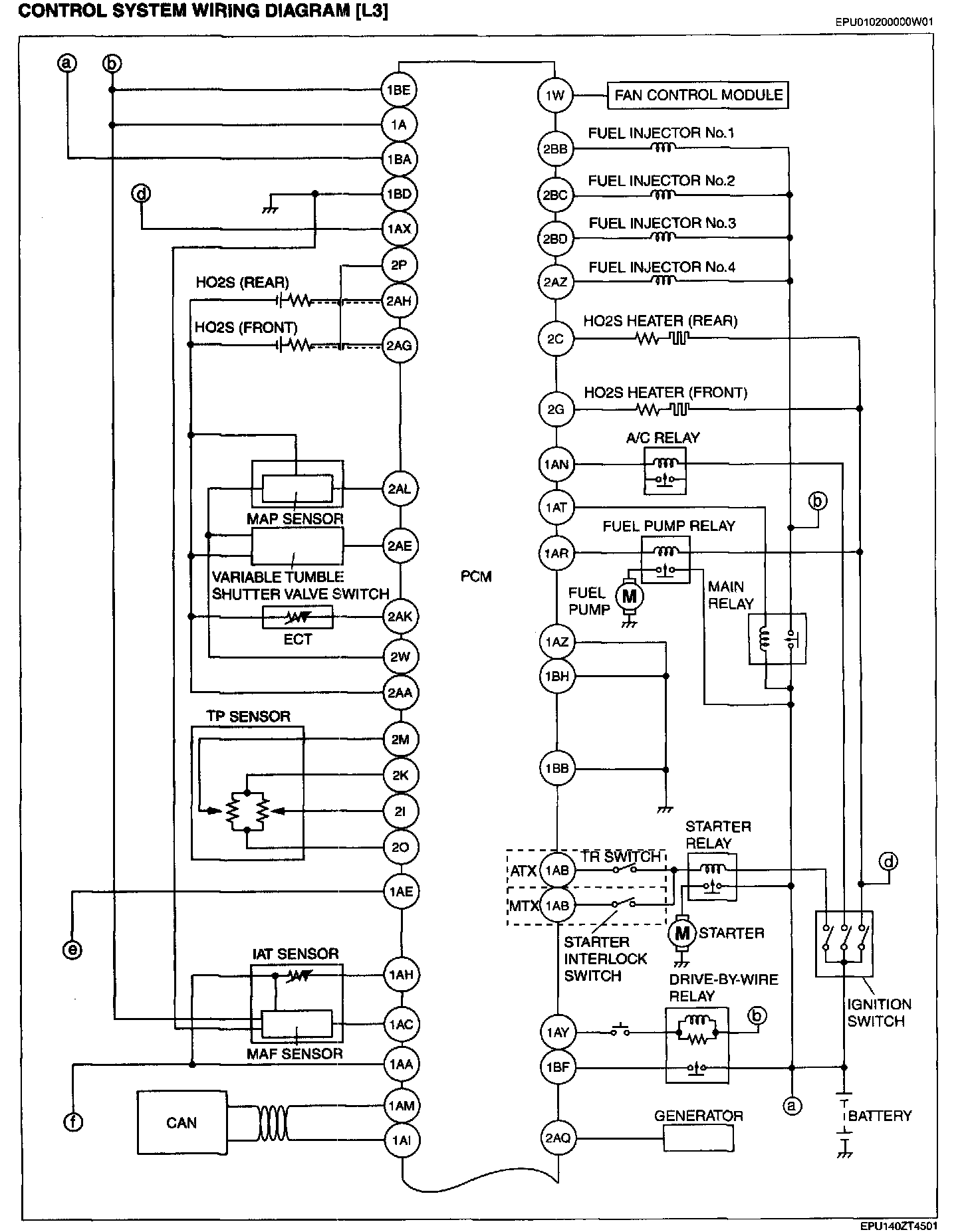

Control System Wiring Diagram [L3] (Part 2):
