Rear

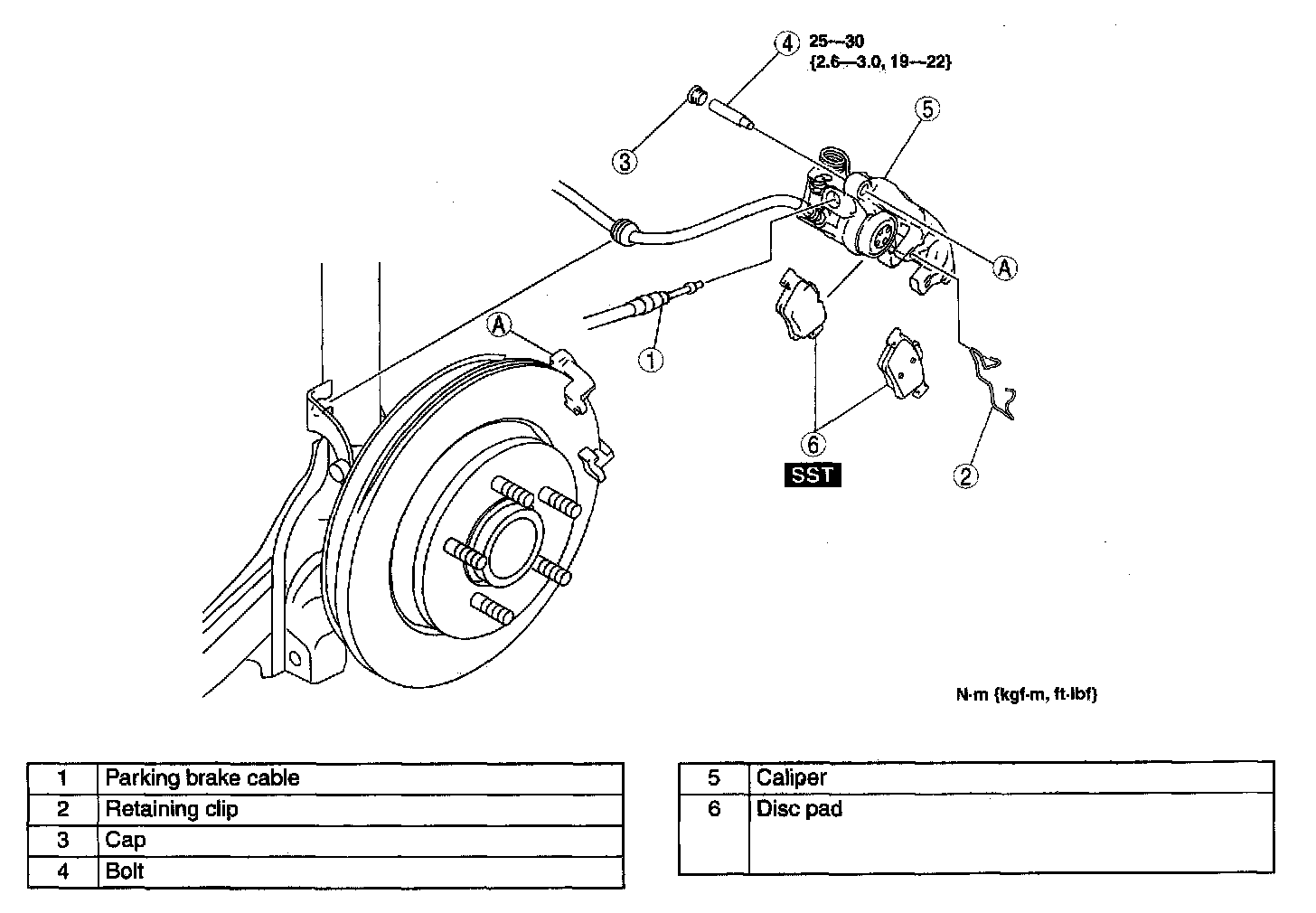

DISC PAD (REAR) REPLACEMENT
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.





3. After installation, pump the brake pedal a few times and inspect the following:
- Parking brake lover stroke
- Brake drag
