Home >> Mazda >> 2006 >> 3 L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

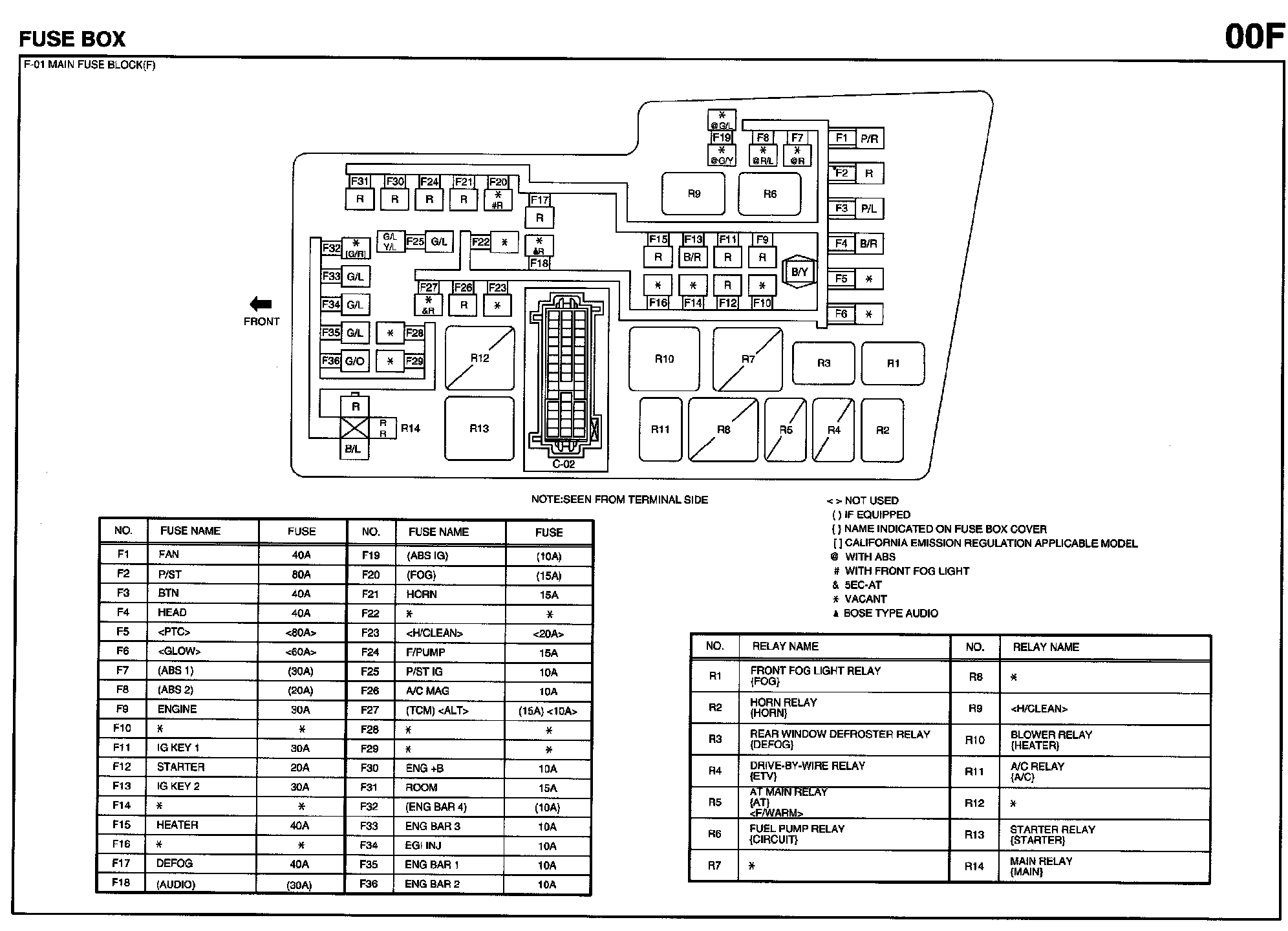

00F Fuse Box:



Relay Location:
